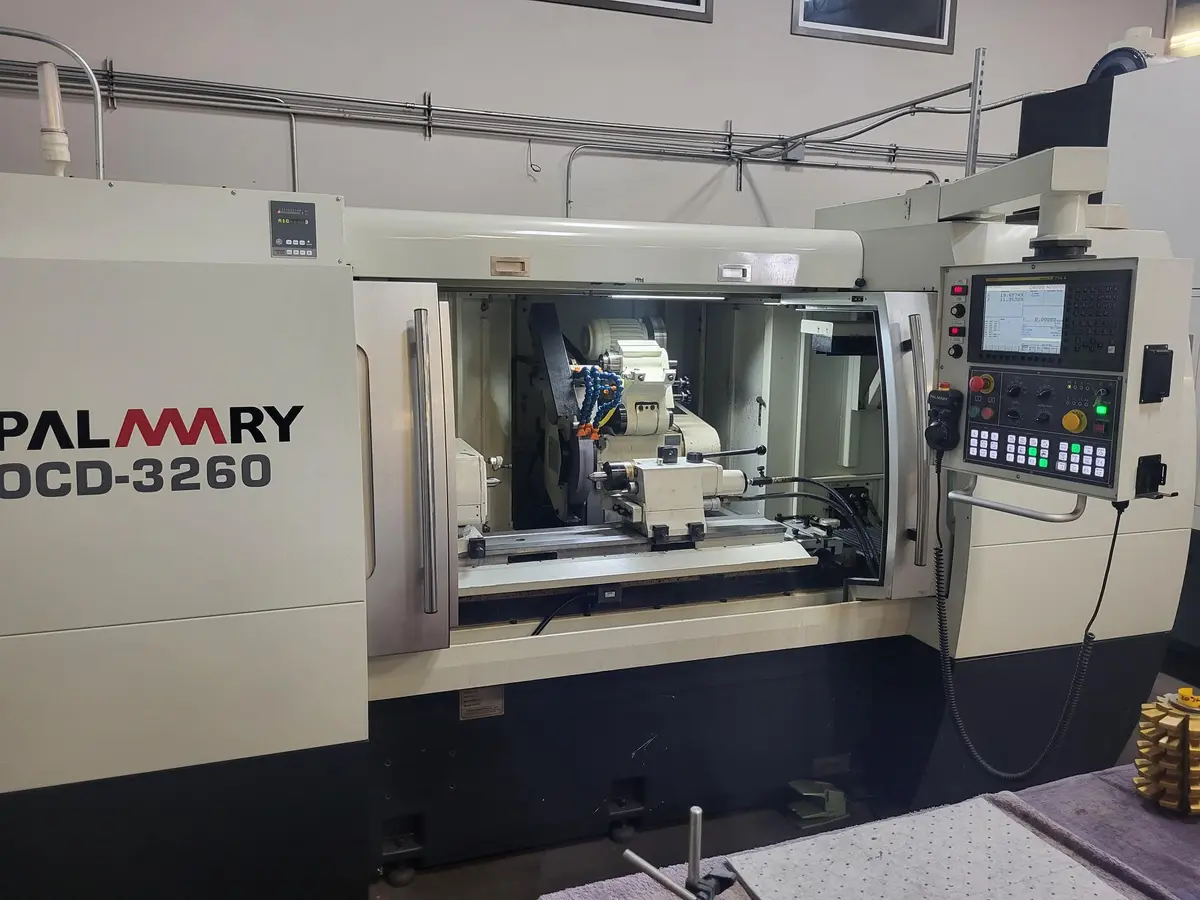

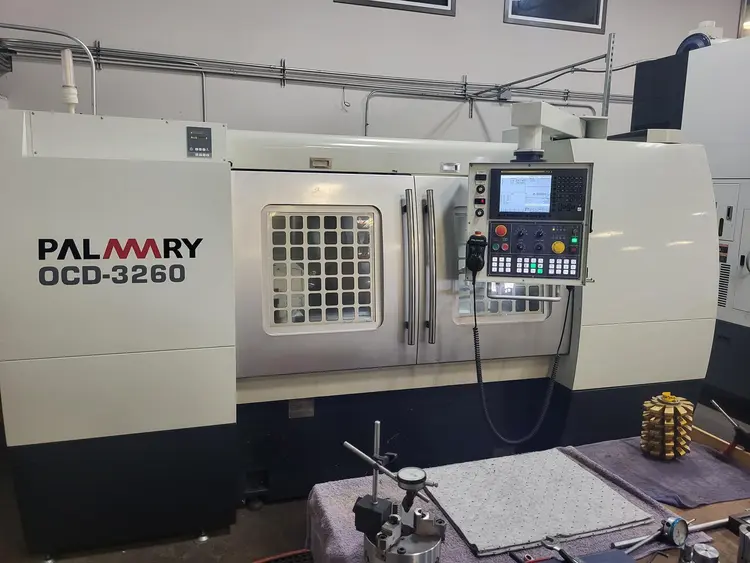

Palmary OCD 3260 CNC Cylindrical Grinder

Swing over Table....................320mm
Distance Between Centers............600mm
Max. External Grinding Diamater.....300mm
Max Load Between Centers............150 kgs
Grinding Wheel......................0405 x 50~75 x 0127 (0152.4) mm
Grinding Wheel Linear Velocity......45 m/s
Wheelhead Rapid Feedrate............10 m/min
Wheelhead Min. Input Increment......0.0001 mm
Wheelhead Internal Grinding.........Manual Elevation
Table Rapid Feedrate................10 m/min
Table Min. Input Increment..........0.0001 mm
Table Swiveling Angle...............0°~12°

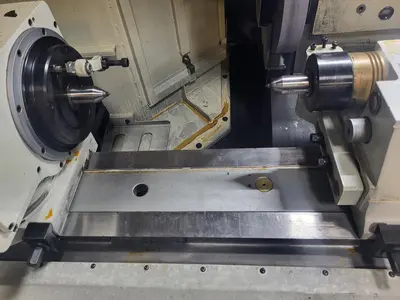

Workhead Swiveling Angle............-30°~+90
Workhead Center.....................MT. No. 4
Workhead Speed......................5-800 RPM
Workhead Max. Load of Spindle.......35 kgs (Max length:150 mm) (Tool Holder Included)
Tailstock Center....................MT. No.4
Tailstock Stroke....................25mm
Wheel Spindle.......................3.7kw
Work Spindle........................0.8 kW AC Servomotor
Wheelhead Feed......................1.2 kW (AC Servomotor)
Table Feed..........................1.8 kW (AC Servomotor)
Machine Weight......................3800 kgs
