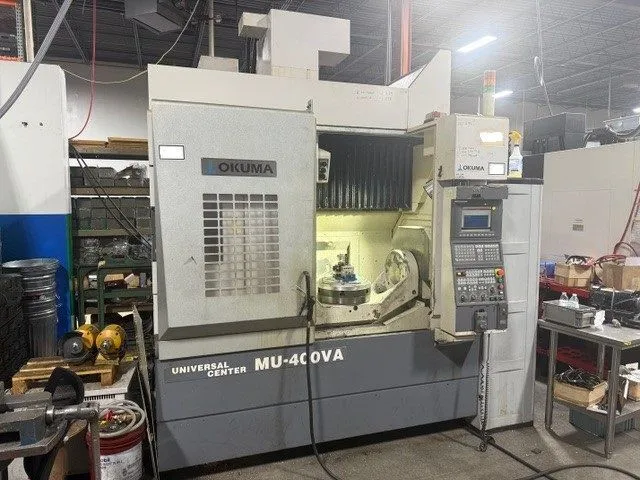

Okuma MU-400VA 5-Axis Vertical Machining Center

Table working surface................15.75"
Max table load.......................600 LBS
Table surface to spindle nose........3.94" - 22.05"
Distance Floor to Table Top..........41.34"
X-Axis travel........................30"
Y-Axis travel........................18.11"
Z-Axis travel........................18.11"
A-Axis trunnion tilt.................+20 to -110 Degree
B-Axis table rotation................0.001 Degree
Spindle Motor........................20 HP
Spindle Taper........................CAT-40
Spindle Speed........................15,000 RPM
Rapid Traverse Rate (X, Y, Z)........1,574 IPM
Number of Tools......................32 ATC
Approx. Machine Dimensions...........114" x 160" x 116"
Approximate Machine Weight...........17,000 LBS
