2017 Artisan 408 CNC Router
Have one to sell?
ConditionUsed
1 available
2017 Artisan 408 CNC Router with Mach 4 PC Based Control, 10 HP Vacuum, 24,000 RPM, ER20 Spindle, Retrofitted from Steppers to Servos, New Control Board and Power Supply. Under Power and Excellent Condition.
Table Size..............................60" x 110"
X,Y,Z Working Area......................48" x 96" x 12"
X,Y,Z, Traveling Position Accuracy......+/-0.002
Rapid Speed.............................0-900 IPM
Spindle Motor...........................2 HP
Spindle Speed...........................24,000 RPM
Spindle Type............................ER20 Liquid Cooled
Electrics...............................220V Single Phase
Machine Dimensions......................118" x 64" x 44"
Machine Weight..........................2,000 LBS

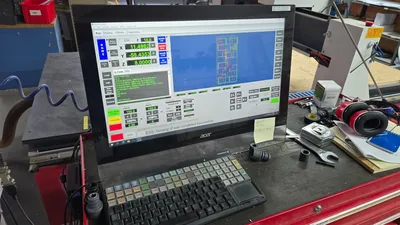

Mach 4 PC Based Control
G-Code Command

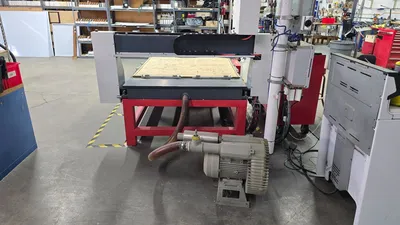

10 HP Vacuum System
2 HP Water cooled ER20 Spindle
Retrofitted from Steppers to Servos
New Power Supply

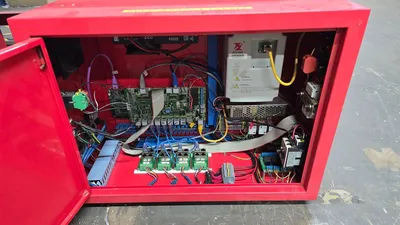

New Control Board
**MACHINE IS FULLY OPERATIONAL AND RUNNING PARTS DAILY**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2017 Artisan 408 CNC Router with Mach 4 PC Based Control, 10 HP Vacuum, 24,000 RPM, ER20 Spindle, Retrofitted from Steppers to Servos, New Control Board and Power Supply. Under Power and Excellent Condition.
Imperial
| Table-W | 60" |
| Table-L | 110" |
| Power | 2 hp |
| RPM | 24,000 RPM |
| Taper | ER20 |
| # Axis | 3 |
| X | 48" |
| Y | 96" |
| Z | 12" |
| Control | CNC (Mach 4) |
| Dimensions | 118" x 64" x 44" |
| Weight | 2,000 LBS |
Table Size..............................60" x 110"
X,Y,Z Working Area......................48" x 96" x 12"
X,Y,Z, Traveling Position Accuracy......+/-0.002
Rapid Speed.............................0-900 IPM
Spindle Motor...........................2 HP
Spindle Speed...........................24,000 RPM
Spindle Type............................ER20 Liquid Cooled
Electrics...............................220V Single Phase
Machine Dimensions......................118" x 64" x 44"
Machine Weight..........................2,000 LBS
Mach 4 PC Based Control
G-Code Command
10 HP Vacuum System
2 HP Water cooled ER20 Spindle
Retrofitted from Steppers to Servos
New Power Supply
New Control Board
**MACHINE IS FULLY OPERATIONAL AND RUNNING PARTS DAILY**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
