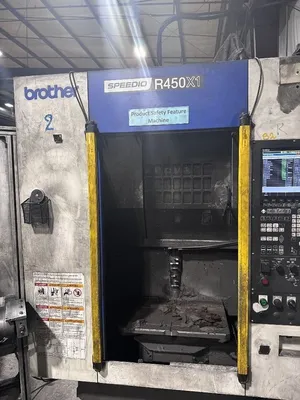

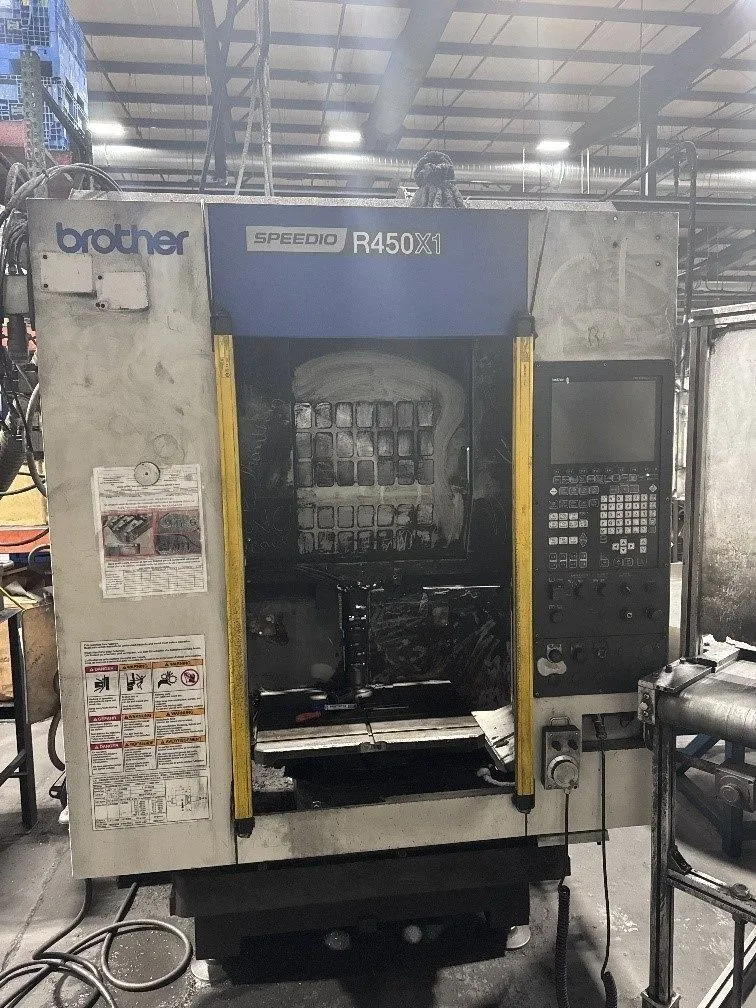

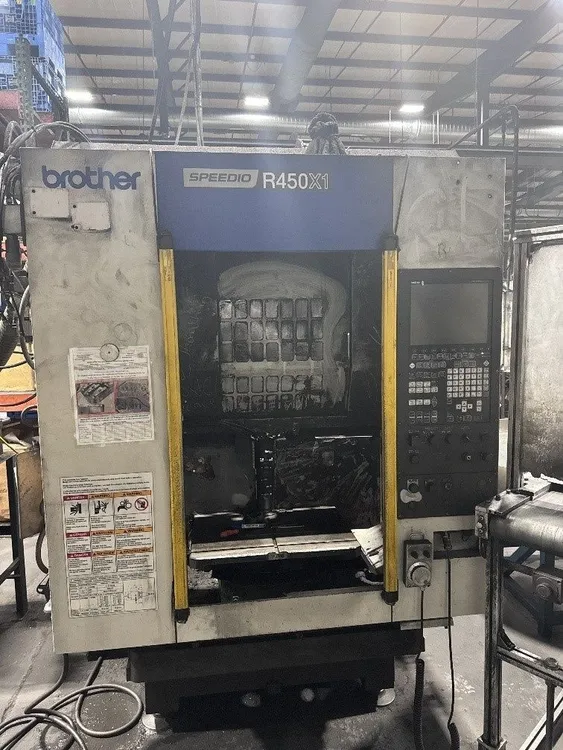

2018 Brother Speedio R450X1
Table Size............................23.6" x 11.8"
Max Loading Capacity..................441 LBS
Spindle Nose to Table.................7.9" - 19.9"
X-Axis Travel.........................17.7"
Y-Axis Travel.........................12.6"
Z-Axis Travel.........................12"
Spindle Motor.........................10 HP
Spindle Taper.........................BT-30
Spindle Speed.........................16,000 RPM
Tapping Speed.........................6,000 RPM
Rapid Traverse Rates..................1,969 IPM
Cutting Feed Rate.....................1,181 IPM

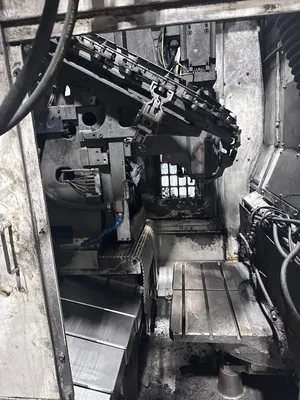

Tool Changer Capacity.................22
Max Tool Length.......................7.9"
Max Tool Diameter.....................3.1"
Max Tool Weight.......................6.6 lbs
Tool to Tool / Chip to Chip Time......0.8 / 1.6 Seconds
Electrics.............................200-230V/3PH/60HZ
Dimensions............................65" x 112" x 105"
Weight................................5,954 LBS

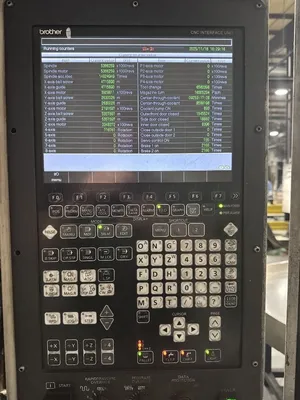

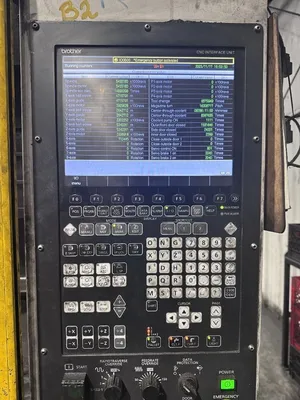

Brother CNC Control
Auto Door
Thru Spindle Air Blast

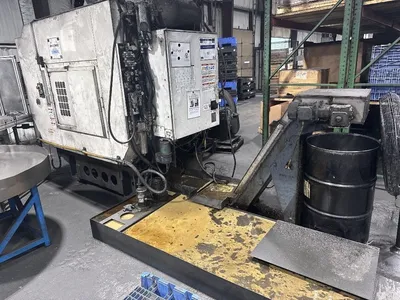

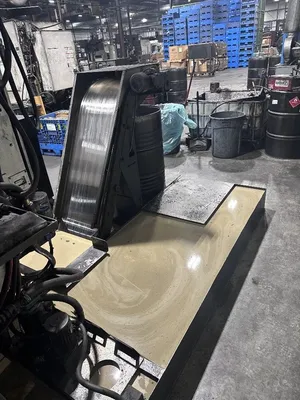

Magnetic Chip Conveyor
Safety Light Curtain
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
