2021 DOOSAN PUMA 2600SY II
Have one to sell?
ConditionUsed
1 available

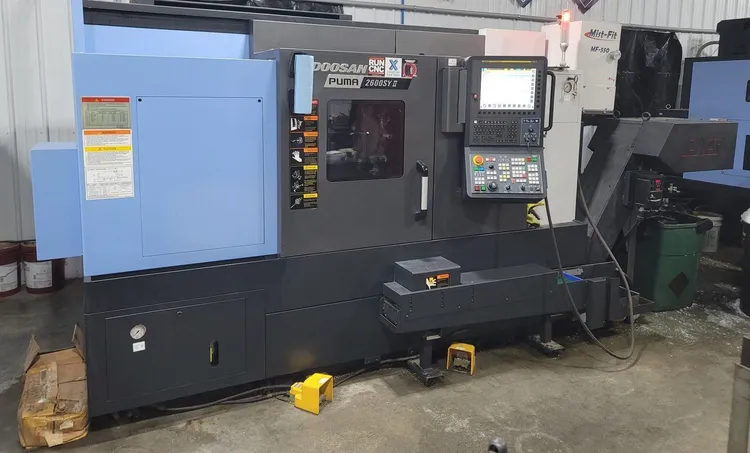

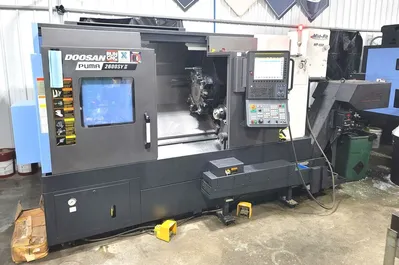

2021 Doosan Puma 2600SY-II with Only 400 Cutting Hours. Fanuc Control, Live Tooling, Y-Axis, Sub-Spindle, Parts Catcher & Conveyor, Mist Collection, 430 PSI HP Coolant, 6 Live Holders Included.
SWING OVER BED....................30.7"
MAX CUTTING DIAMETER..............14.8"
MAX CUTTING LENGTH................29.9"
X-AXIS TRAVEL.....................10.2"
Y-AXIS TRAVEL.....................4.1" (± 2.1")
Z-AXIS TRAVEL.....................32.7"
SPINDLE MOTOR.....................30 HP
SPINDLE NOSE......................A2-8
SPINDLE BORE......................3.6"
BAR CAPACITY......................3"
SPINDLE SPEED.....................4,000 RPM
SUB SPINDLE - SPINDLE MOTOR.......20 HP
SUB SPINDLE - SPINDLE NOSE........A2-5
SUB SPINDLE - SPINDLE BORE........2.4"
SUB SPINDLE - SPINDLE SPEED.......6,000 RPM

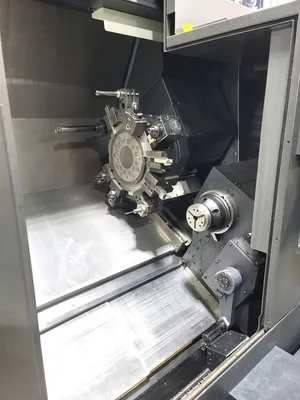

TURRET CAPACITY...................12
TURRET TYPE.......................BMT-65
LIVE MILLING MOTOR................10 HP
LIVE MILLING SPEED................5,000 RPM
MACHINE DIMENSIONS................142" x 75" x 85"
MACHINE WEIGHT....................14,500 LBS

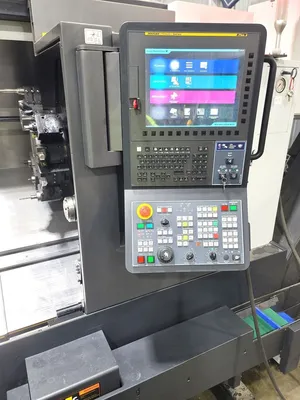

DOOSAN-FANUC i SERIES CONTROL
Y-AXIS
LIVE MILLING

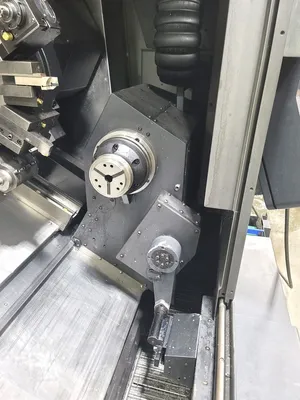

SUB SPINDLE

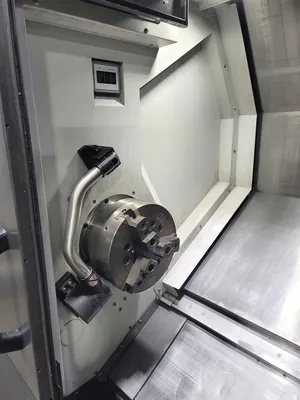

12", 3-JAW HYDRAULIC CHUCK FOR (MAIN)
8", 3-JAW HYDRAULIC CHUCK FOR (SUB)
QG-80 COLLET (MAIN)
QG-65 COLLET (SUB)
LOW PRESSURE CHUCKING OPTION (MAIN & SUB)
TOOL PRESETTER

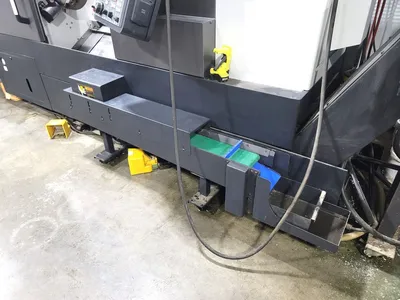

PARTS CATCHER
PARTS CONVEYOR

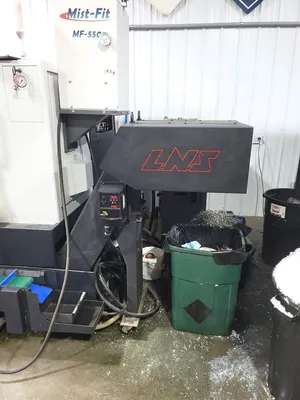

LNS CHIP CONVEYOR

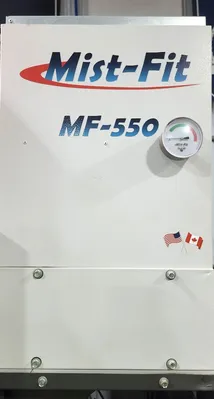

MIST-FIT MIST COLLECTOR
HIPRECO 430 PSI HIGH PRESSURE COOLANT SYSTEM 10

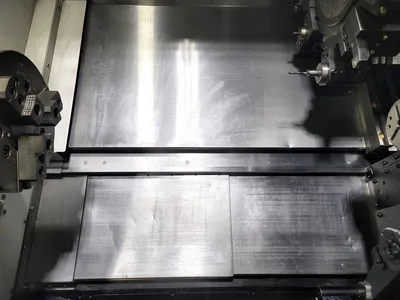

BOX GUIDE WAYS
STANDARD TOOL PACKAGE
LIVE TOOL HOLDERS INCLUDED
(2) RADIAL
(4) AXIAL
** ORIGINAL OWNER **

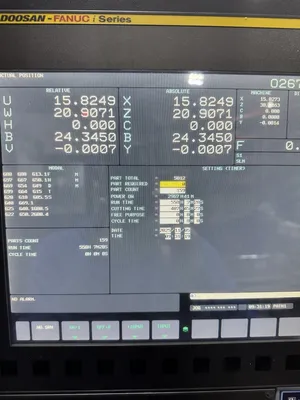

** AS OF MARCH, 2024 – CUTTING TIME: 400 HOURS **
** REPLACEMENT PRICE NEW AS EQUIPPED: $300,000 **
** MATERIALS CUTTING: STAINLESS STEEL, COPPER, ALUMINUM, ACETAL **
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE **
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
