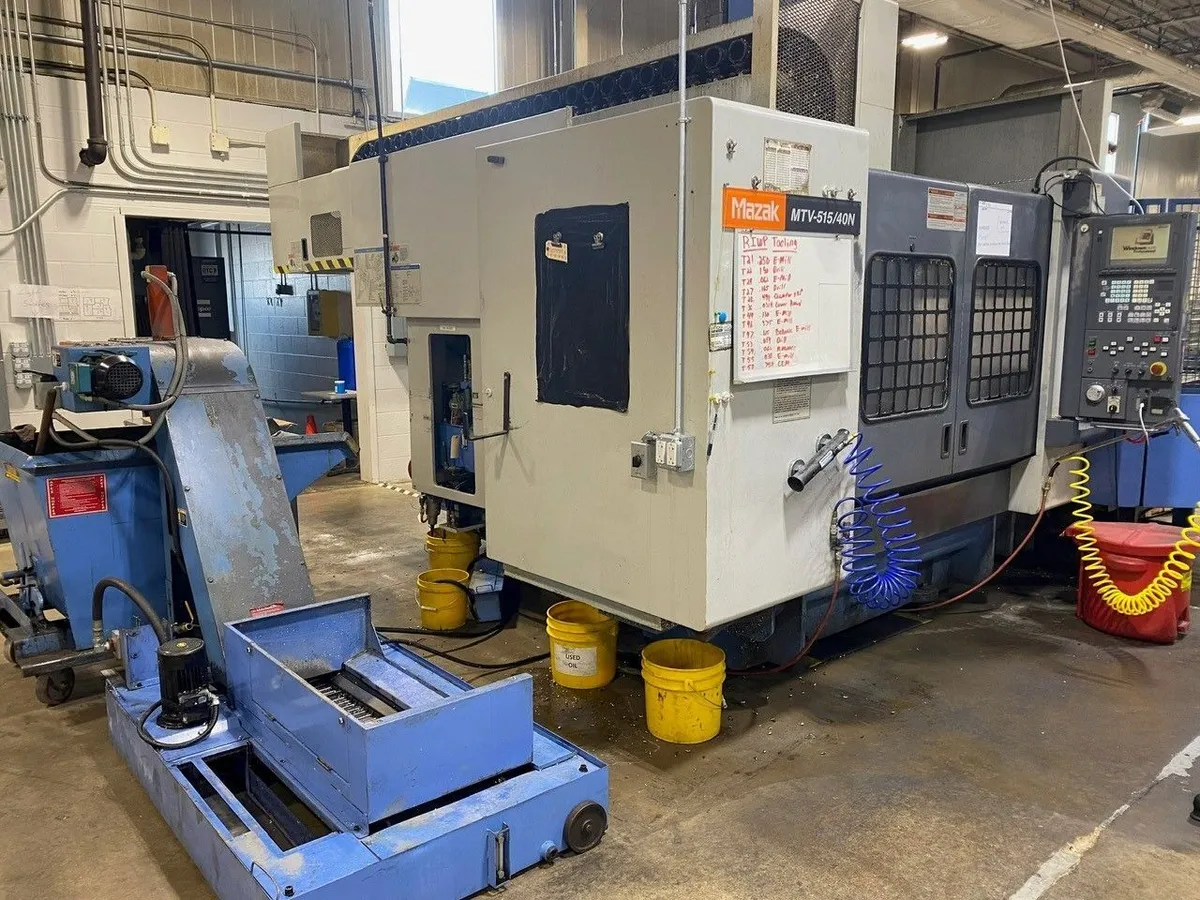

Mazak MTV515/40N 2-Pallet, 50 Taper, Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
1998 Mazak MTV515/40N 2-Pallet, 50 Taper, Vertical Machining Center with Fusion 640M Control, 6,000 RPM Spindle, Through Spindle Coolant, 60 ATC, Probing, and Chip Conveyor.
Number Of Tables / Pallets.......2
Table Size.......................21.65" x 51.18"
Weight on Table..................3,300 LBS
Spindle Nose To Table............7.87" - 29.92"
X-Axis Travel....................41.32"
Y-Axis Travel....................20.07"
Z-Axis Travel....................22.04"
Rapid Traverse (X, Y, Z).........945, 945, 708 IPM
Cutting Feed Rate................0.04 - 197 IPM
Spindle Speed....................6000 RPM
Spindle Taper....................CAT-50
Number Of Gear Ranges............2
Main Motor.......................30 HP
Automatic Tool Changer...........60 ATC
Machine Weight...................19,580 LBS

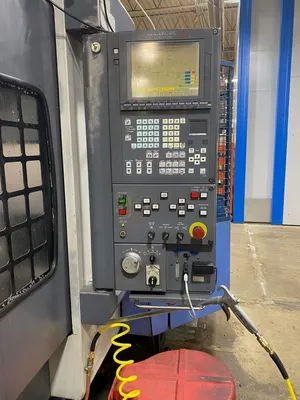

Mazatrol Fusion 640M CNC Control

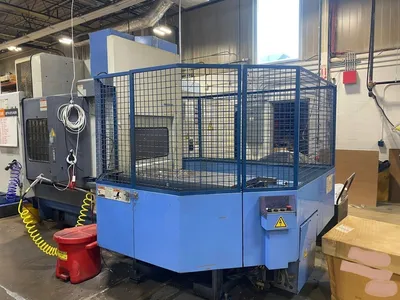

2-Station Pallet Changer
6,000 RPM, CAT-50 Spindle
Through Spindle Coolant
60 Station ATC
Probing
Chip Conveyor

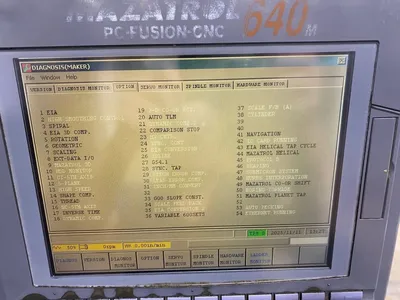

EIA, Spiral, EIA 3D Comp., Rotation
Geometric, Scaling, EXT-Data I/O
Shape Comp., Thread, Inverse Time
Auto TLM, Comparison Stop, G54.1
Sync. Tap, G00 Slope Const., Variable 600 Sets
Navigation, EIA Helical Tap Cycle
Mazatrol Helical, Mazatrol CO-OR Shift
Mazatrol Planet Tap
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
