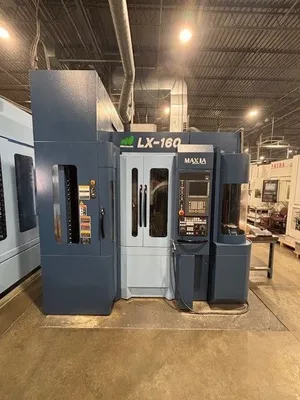

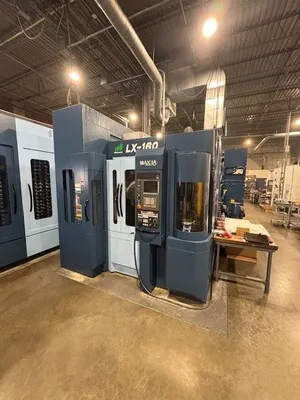

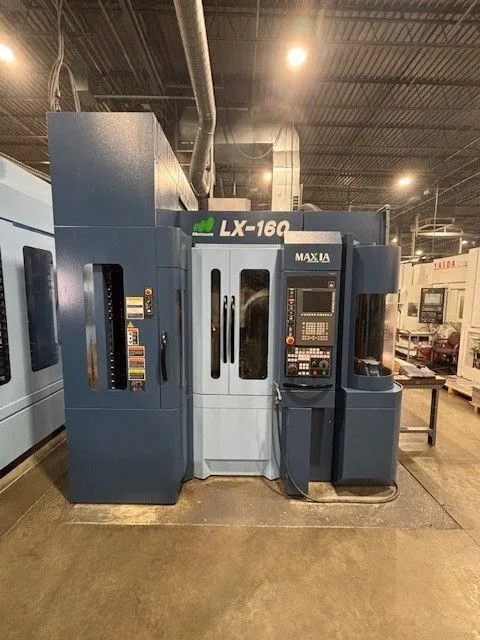

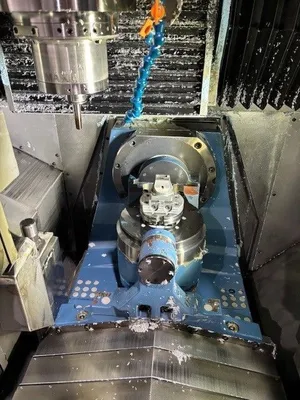

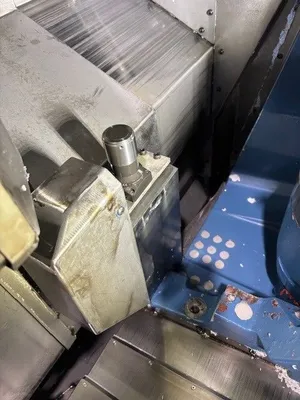

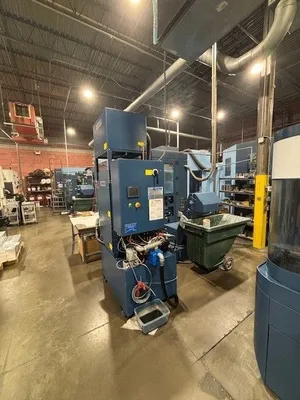

Matsuura LX160 5-Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
2014 Matsuura LX160 5-Axis Vertical Machining Center with Fanuc Control, 46,000 RPM, HSK40E Spindle, 338 ATC, Blum Laser, Renishaw OMP400 Probe, New Spindle 10/2025, 18,000 Cutting Hours.
Number of Pallets...........42
Pallet Size.................6.29"
Pallet Capacity.............44 LBS
Max. Work Piece Size........6.29" x 9.05"
X-Axis Travel...............19.68"
Y-Axis Travel...............9.84"
Z-Axis Travel...............11.81"
B-Axis Travel...............+125° ~ -125°
C-Axis Travel...............360°
Spindle Motor...............20 HP
Spindle Taper...............HSK-40E
Spindle Speed...............46,000 RPM

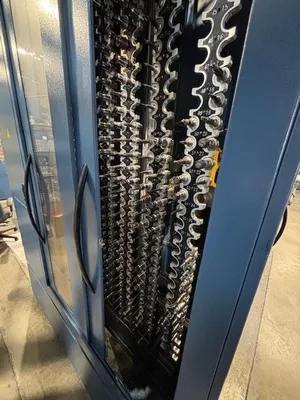

Number of Tools.............338 ATC
Rapid Traverse Rates........3,543 IPM
Fanuc 30iB CNC Control
CAMplete True Path Software

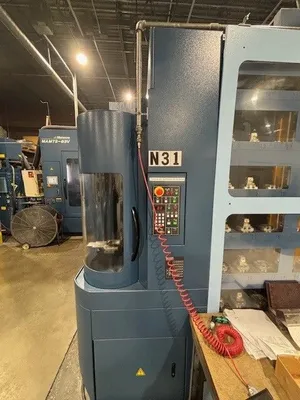

42 Station Linear Pallet System

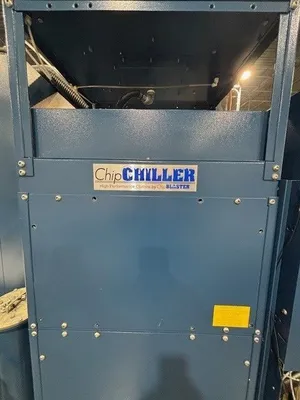

Spiral Chip Conveyor
Air Blow for Chip Swarf Removal
Renishaw OMP400 Measuring Probe
Vacuum Type Coolant Through Spindle
Laser BT Detection
Blum Laser Control Nano NT
8 Sets of Extra M Function
Weekly Timer
3 Color Patrol Light
Tool Pre-Check Function
High Speed/High Precision & 5-Axis Package Fanuc 30iB
MMU Value Package 2013 Fanuc 30iB
New Spindle 10/2025

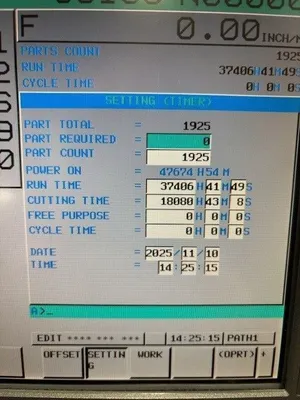

HOURS:
Power on Time..........47,674
Run Time...............37,406
Cutting Time...........18,080
**NEW SPINDLE 10/2025**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
