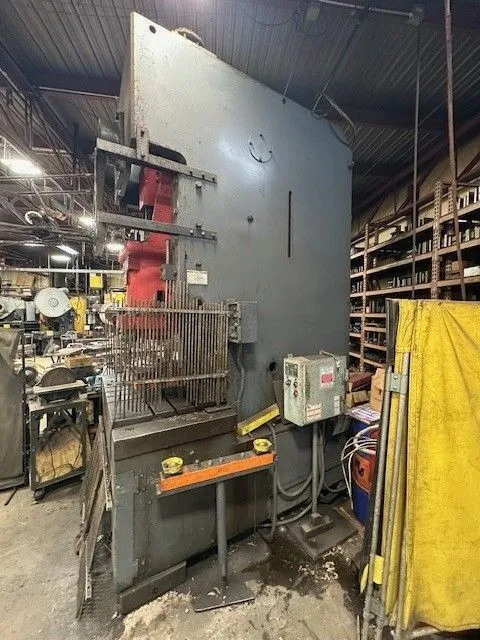

Aida C1-11 Stamping Press

Capacity.................121 Ton
Stroke Length............7"
Speed....................50 SPM
Die Height...............13.78"

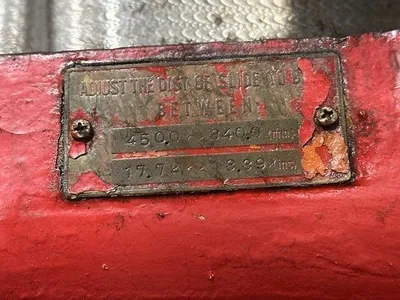

Slide Adjustment.........3.54"
Slide Area...............23.6" x 20.4"

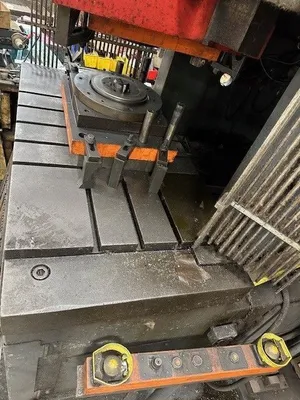

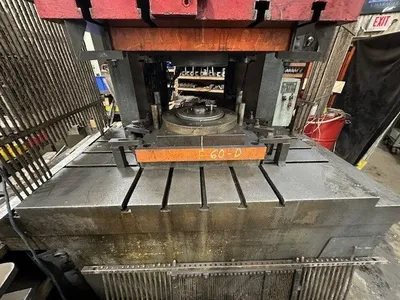

Bolster Area.............42.5" x 26.7"
Bolster Thickness........5.1"
Frame Gap................13.77"
Frame Inside Dimension...26.69"
Maximum Dimension........59" x 81.5"
Installation Area........56.3" x 72.8"
Work Face Height.........35.4"
Overall Height...........124"
Main Motor...............10 HP x 4P
Air Pressure.............71 PSI
Appro. Machine Weight....11 Tons

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
