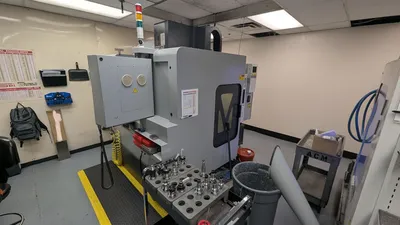

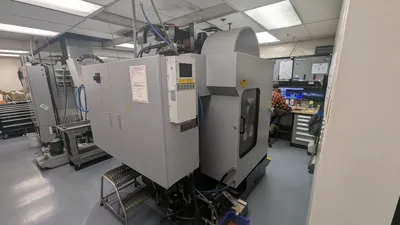

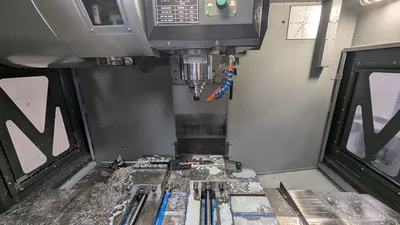

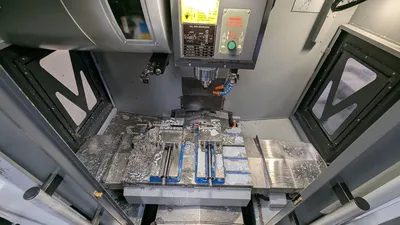

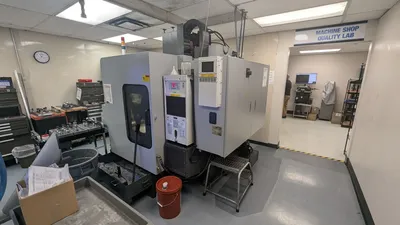

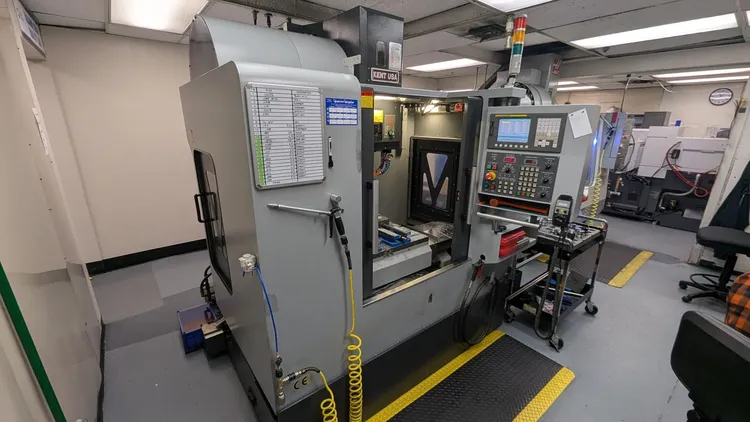

Kent KVR-2418A Vertical Machining Center

Table Size.....................29.9" x 18.1"
Maximum Work Load..............1,320 LBS
Spindle to Table...............3.9" to 22.8"
T-Slots (number x width).......14H8 x 100 mm
Table Height from Floor........36"
Spindle Center to Column.......19.7"
Table Travel (X-Axis)..........24"
Saddle Travel (Y-Axis).........18.1"
Vertical Travel (Z-Axis).......18.9"
Spindle Motor..................15 HP
Spindle Taper..................CAT-40
Spindle Speed..................10,000 RPM
Rapid Traverse Rate............1,417 IPM
Number of Tools................24+1
Tool Change Time...............1.3 Seconds
Maximum Tool Diameter..........3"
Maximum Tool Length............9.8"
Maximum Tool Weight............12.1 LBS
Machine Dimensions.............7.7 ft x 9.5 ft x 8.9 ft
Machine Net Weight.............8,030 LBS
