The Eastman Eagle C3 Continuous Conveyor Automatic Cutting System
Have one to sell?
ConditionUsed
1 available

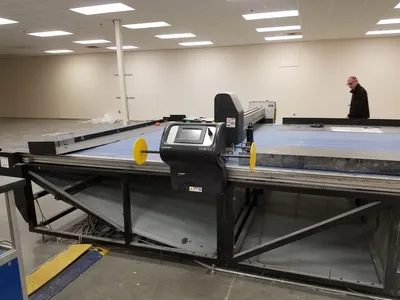

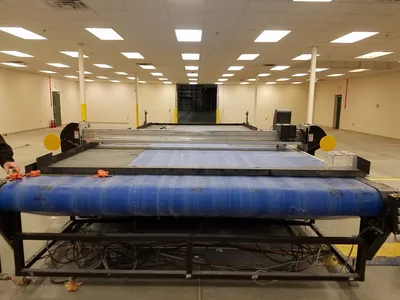

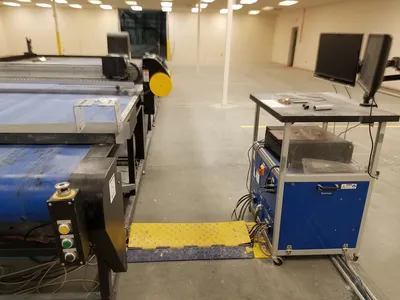

The Eastman Eagle C3 Continuous Conveyor Automatic Cutting System
Table Size.........................108" x 20'
Model Name.........................Eagle C3
Maximum Gantry Speed...............60 in/sec. (152 cm/sec.)
Maximum Conveyor Speed.............10 in/sec.2 (25.4 cm/ sec2.)
Cut Accuracy.......................+/- 0.015" (+/- 0.4 mm)
Gantry Weight......................230 lbs (105 kg)
Machine Operating Voltage..........460V/3PH/60HZ
Minimum Operating Pressure.........75 PSI

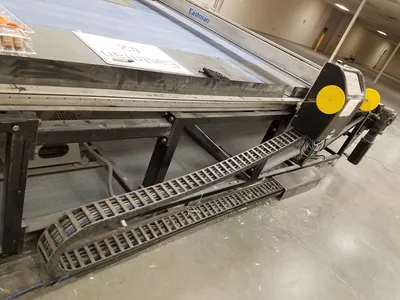

Material Cutting Gantries

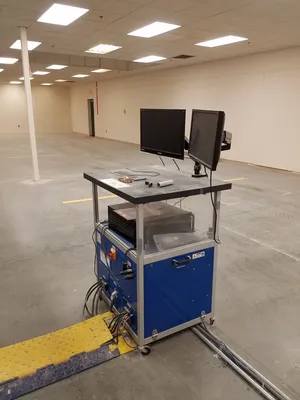

Control Module
Screens

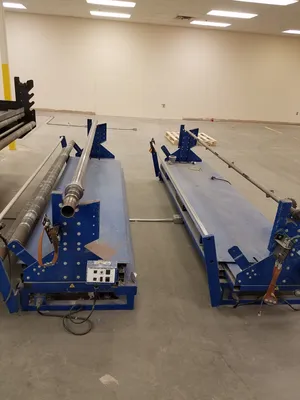

Material Roll Rollers
Weight:
2799 Lbs
3100 Lbs
700 Lbs
1,100 Lbs
400 Lbs
600 Lbs
Total : 8,699 Lbs
