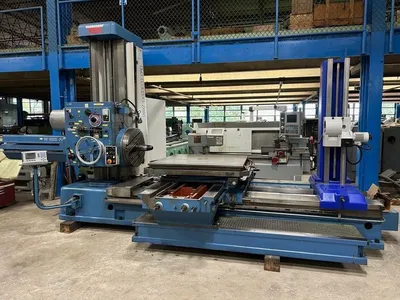

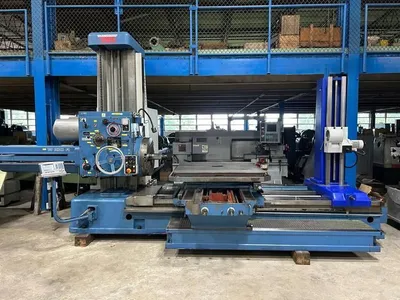

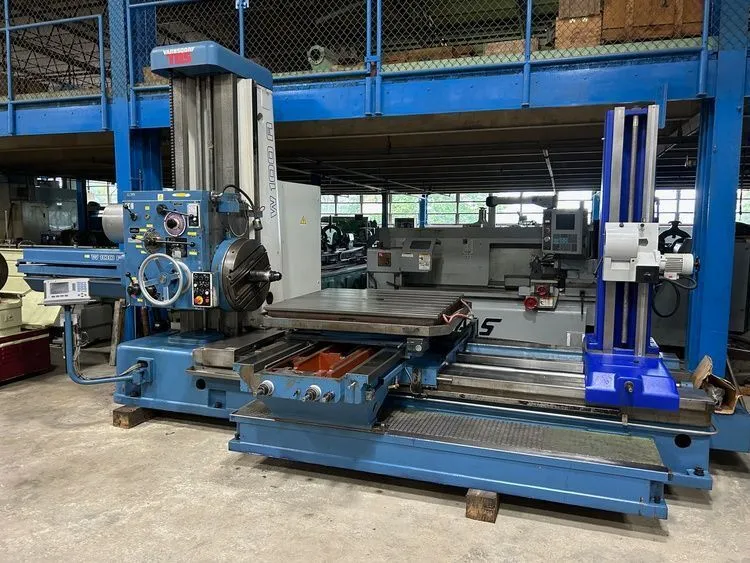

2005 TOS W100A 4" Table Type Horizontal Boring Mill
Have one to sell?
ConditionUsed
1 available

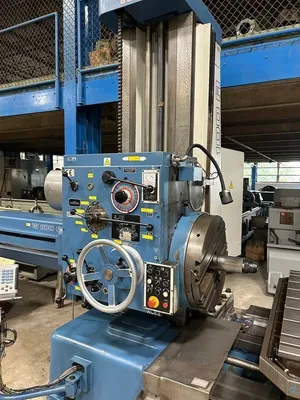

2005 TOS W100A 4" Table Type Horizontal Boring Mill with Acu-Rite 4-Axis DRO, Power Draw Bar, Rotary Table, Tailstock, Inch/Metric, 23-1/2" Facing Head
DIAMETER OF SPINDLE ............... 4"

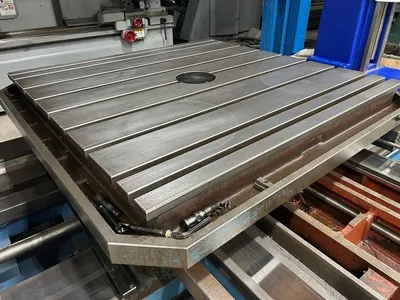

TABLE WORKING SURFACE ............. 49" X 49"
MAXIMUM WEIGHT OF WORK PIECE ...... 6,600 LBS
MAX DISTANCE SPINDLE TO TABLE ..... 44"
CROSS TABLE TRAVEL ................ 63"
SADDLE TRAVEL ..................... 49"
SPINDLE TRAVEL .................... 35-1/2"
MAIN MOTOR ........................ 15 HP
TAPER OF SPINDLE .................. #50 STD.
SPINDLE SPEEDS (23) ............... 7.1 TO 1120 RPM
FACEPLATE SPEEDS (16) ............. 7.1 TO 224 RPM
BORING FEED RANGES (32) ........... 0.0008 TO .47 IPR
MILLING FEEDS (18) ................ 0.7 TO 35.4 IPM
ROTARY TABLE FEEDS (18) ........... 0.98 TO 55 IPM
RAPID TRAVERSE RATE ............... 110 IPM
WEIGHT APPROXIMATELY .............. 34,000 LBS
ACU-RITE FOUR AXIS DIGITAL READOUT
POWER DRAW BAR

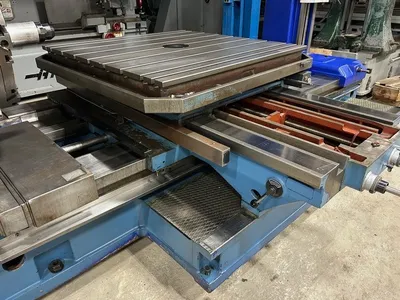

ROTARY TABLE

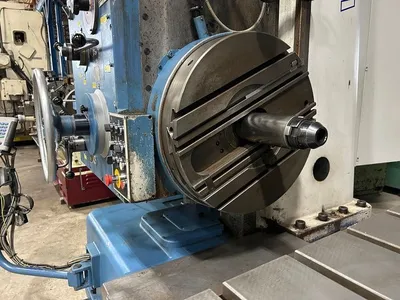

23-1/2" BUILT-IN CONTINOUS FEED FACING HEAD
TAILSTOCK
INCH/METRIC THREADING CAPABILITY

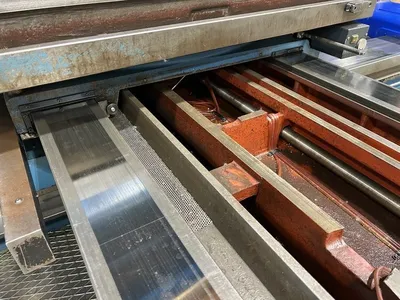

HARDENED AND GROUND BED AND TABLE WAYS
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
