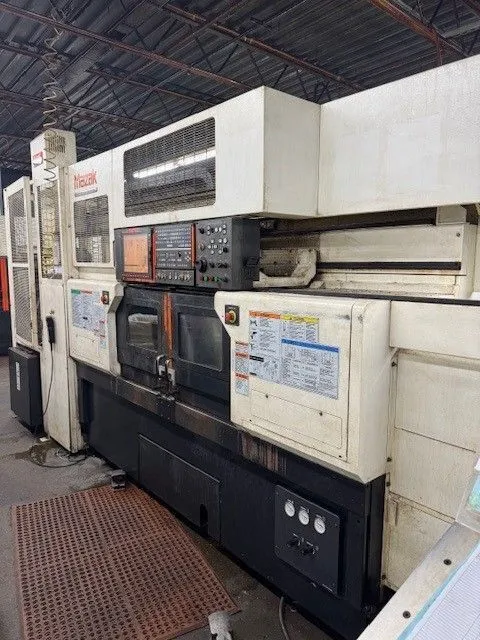

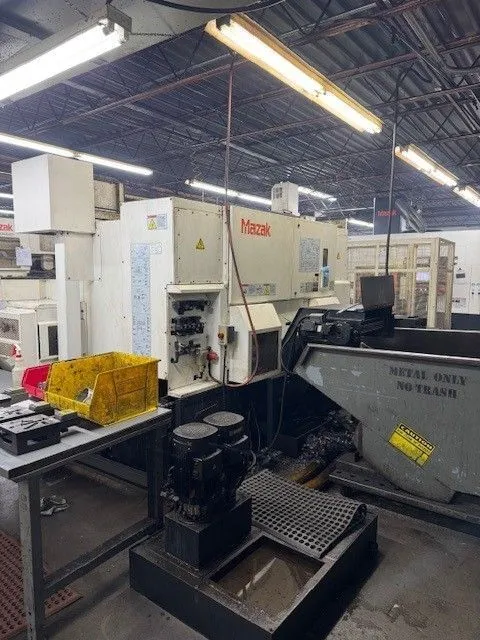

Mazak Multiplex 6200Y-II with GL-100 Gantry

Maximum Swing.....................................12.5"
Standard Cutting Diameter.........................10.24"
Maximum Machining Length for Chuckwork............7.0"
Maximum Machining Length for Shaftwork............21.0"
Distance Between Spindle Faces....................10.15" - 46.85"
Spindle Horsepower................................30 HP
Spindle Nose......................................A2-6
Spindle Bore......................................2.4"
Maximum Bar Diameter..............................2.0"
Spindle Speed.....................................5,000 RPM
Spindle Indexing (C-Axis).........................0.001 deg./360,000 Positions
Spindle Torque....................................258.2 ft.-lbs.
X-Axis Travel.....................................9.45"
Z-Axis Travel.....................................17.32"
Y-Axis Travel (Y1, Y2, Y3)........................+/- 2.00"
Number of Tools...................................24
Live Milling Speed................................4,500 RPM
Dimensions........................................141" x 79" x 83"
Weight............................................18,500 LBS
