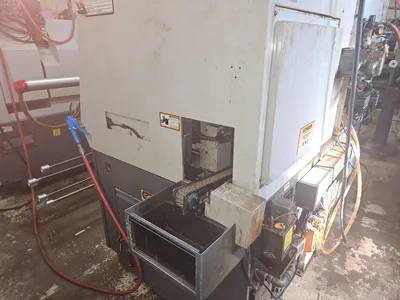

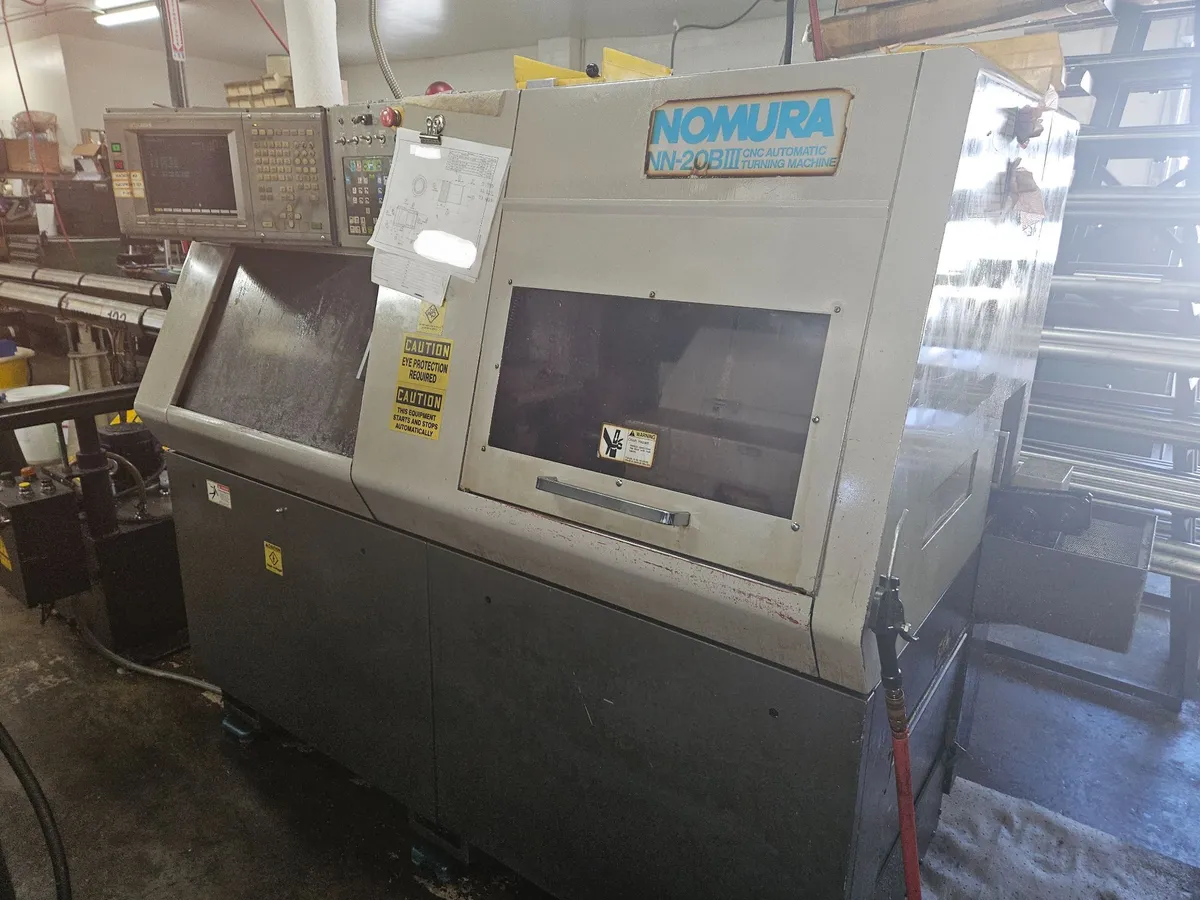

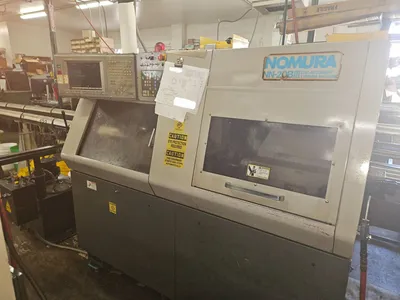

2000 Nomura NN20BIII Swiss Lathe
Have one to sell?
ConditionUsed
1 available
2000 Nomura NN20BIII Swiss Lathe with Mitsubishi Control, 5-Degree Spindle Indexing, C-Axis Attachment, LNS Super Hydrobar, Machine under power and running parts daily.
Max Working Diameter.....................20 mm
Max Working Length.......................200 mm
Max Tapping Diameter.....................M8 (2 back side : M6) stainless
Max Drilling Diameter....................010 mm (2 back side: 0 6 mm) stainless
Max Drilling Length......................50 mm ($2 back side : 35 mm) standard
Max Spindle Speed........................10,000 RPM
Back Spindle Speed.......................7,000 RPM
Min. spindle index angle.................5 Degree, 72 Divisions
Max. cross-drill drilling Diameter.......6 mm
Cross Drill Speed........................6,000 RPM
Tool Size................................12 sq. x 130 mm (standard)
Rapid traverse speed (X,Y,X2)............13 m/min
Rapid traverse speed (Z,Z2)..............15 m/min
Main Spindle.............................AC 3.7 kw
Spindle center height....................995 mm
Total Power Capacity.....................11.2 kva
Machine Dimensions.......................2,060 x 1,165 x 1,610 mm
Machine Weight...........................2,300 kg
Mitsubishi 500 CNC Control
5-Degree Spindle Indexing
C-Axis Attachment
Optional 3-tool live end work attachment
LNS Super Hydrobar
Machine will come with the tool holders for front and back sides
All Programming, operation, parts manuals & schematics Included
**IF BUYING BOTH NOMURA 16 & 20MM, SALE TO INCLUDE TOOL SETTING SCOPE**
**MACHINE IS UNDER POWER AND PRODUCING PARTS DAILY**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
