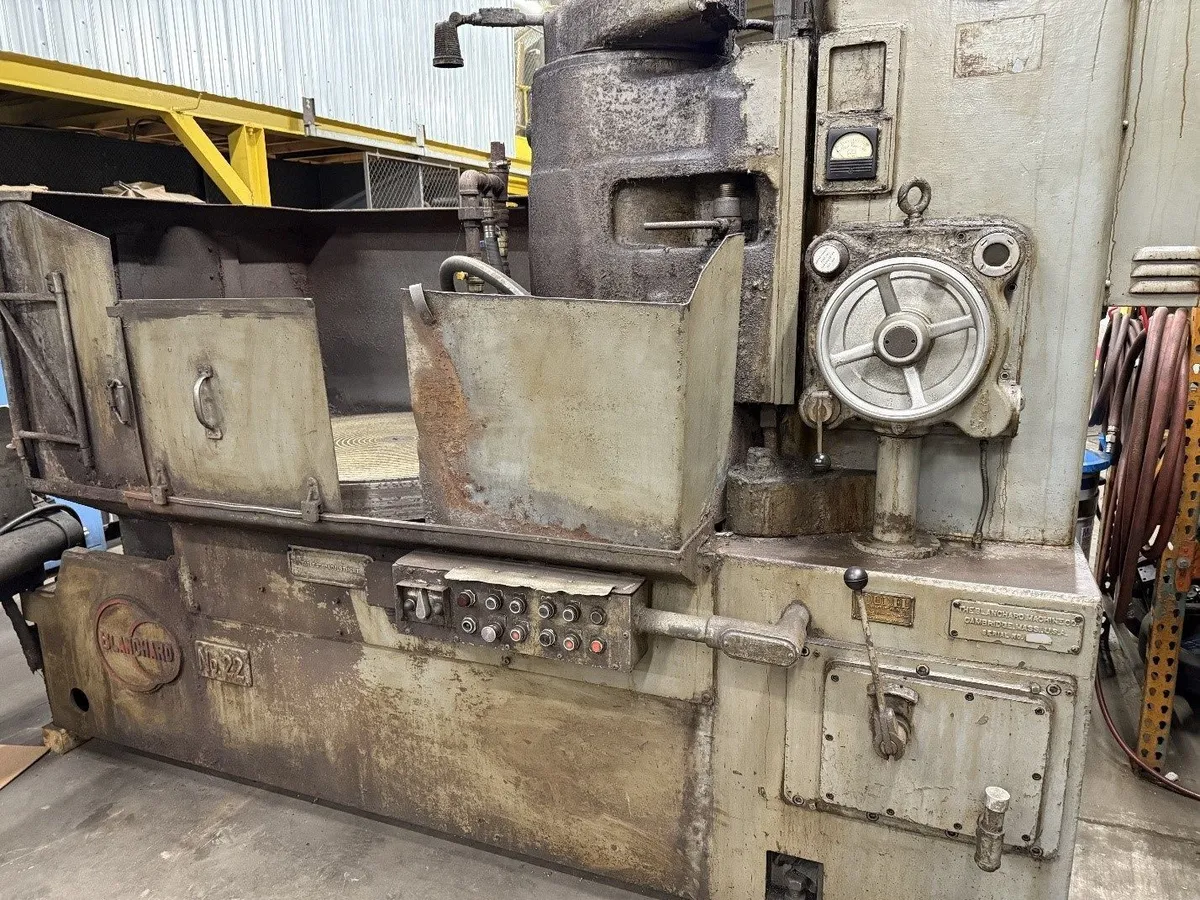

Blanchard No. 22-42 Vertical Spindle Rotary Surface Grinder

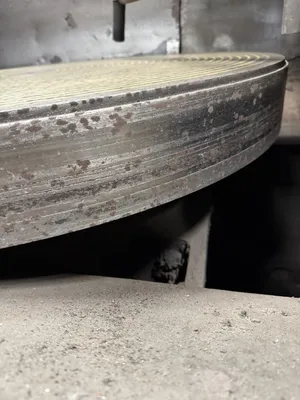

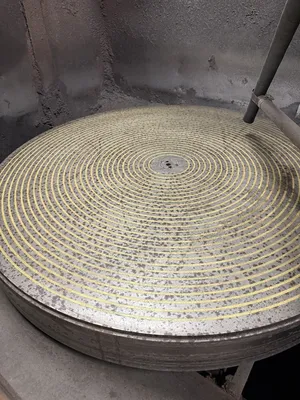

Magnetic Chuck Diameter..........................42"
Wheel Diameter...................................22"
Approximate Range Over Chuck With A New Wheel....24"
Swing Inside Water Guards........................48"
Wheel Speed......................................750 RPM
(6) Ranges of Chuck Speeds.......................5,7,10,15,20 & 27 RPM
Automatic Downfeeds Feed.........................0 - 70 IPM
Main Motor.......................................50 HP
Electrics........................................440V/3PH/60HZ
Dimensions.......................................129" x 60" x 109"
Weight...........................................14,500 LBS
