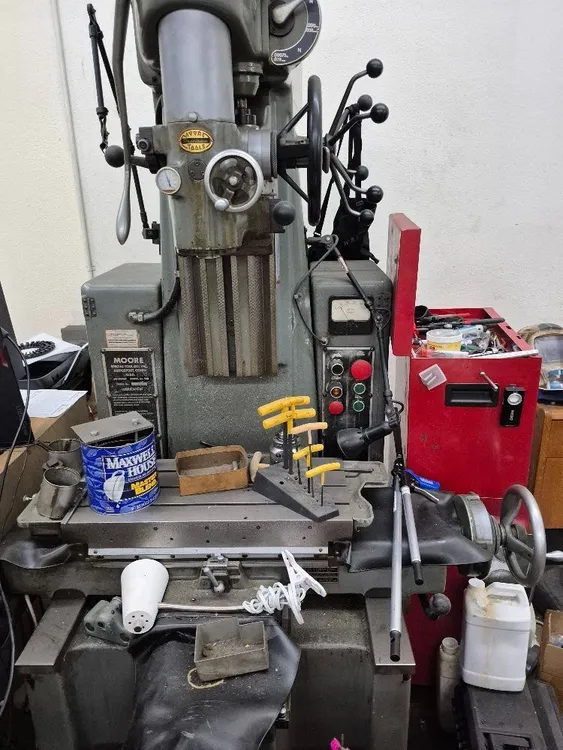

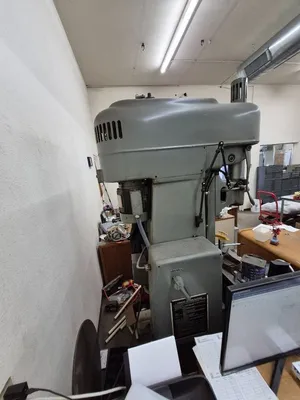

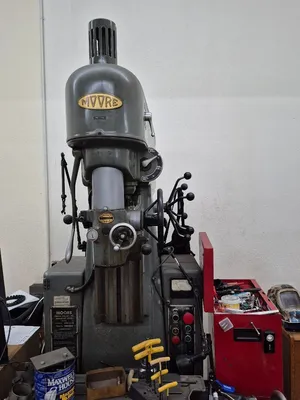

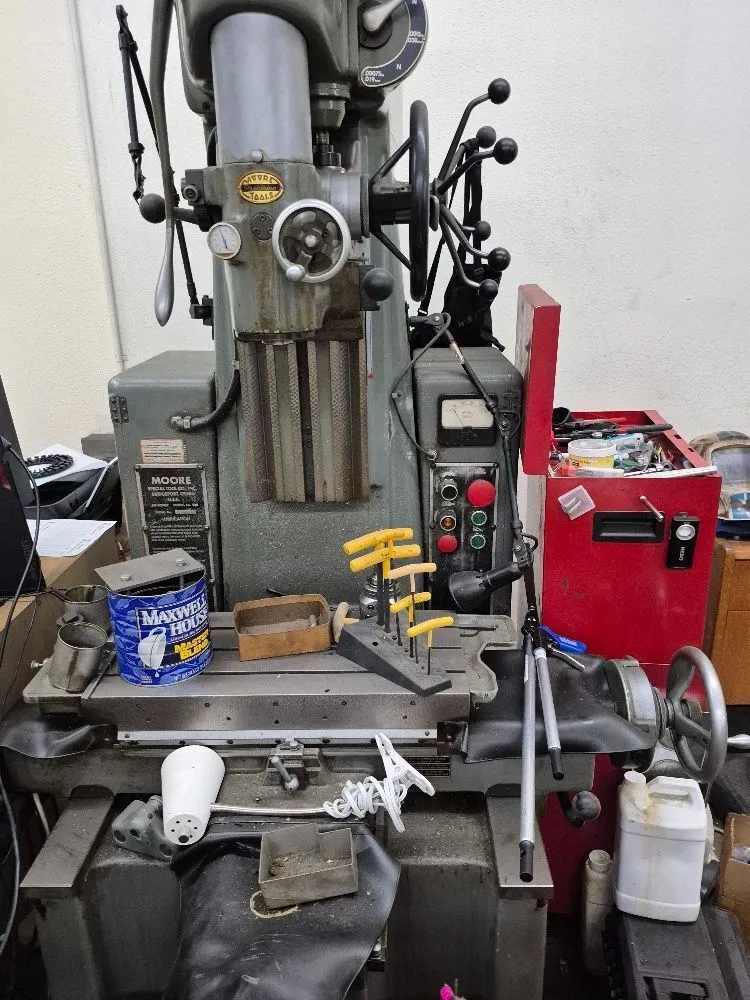

Moore #3 Model B18 Jig Borer

TABLE SIZE...............................11" x 24"
LONGITUDINAL TABLE TRAVEL................18"
CROSS TABLE TRAVEL.......................11"
SPINDLE HOUSING VERTICA TRAVEL...........12"
SPINDLE QUILL TRAVEL.....................5"
TABLE TOP TO SPINDLE.....................3-7/8" - 20-13/16"
SPINDLE TO COLUMN WAYS...................10"
SPINDLE TO COLUMN BELOW WAYS.............13- 3/4"
BORING CAPACITY..........................5/32" - 5"
SPINDLE SENSITIVITY......................PERMITS DRILLING HOLES W/#80 (.0135") DRILL
INFINITELY VARIABLE SPINDLE SPEEDS.......60 TO 2,250 RPM
FEEDS PER REV. (3).......................0.000075", 0.0015" & 0.003"
APPROX. DIMENSIONS.......................58" x 60" x 89"H
APPROX. WEIGHT...........................4,000 LBS

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
