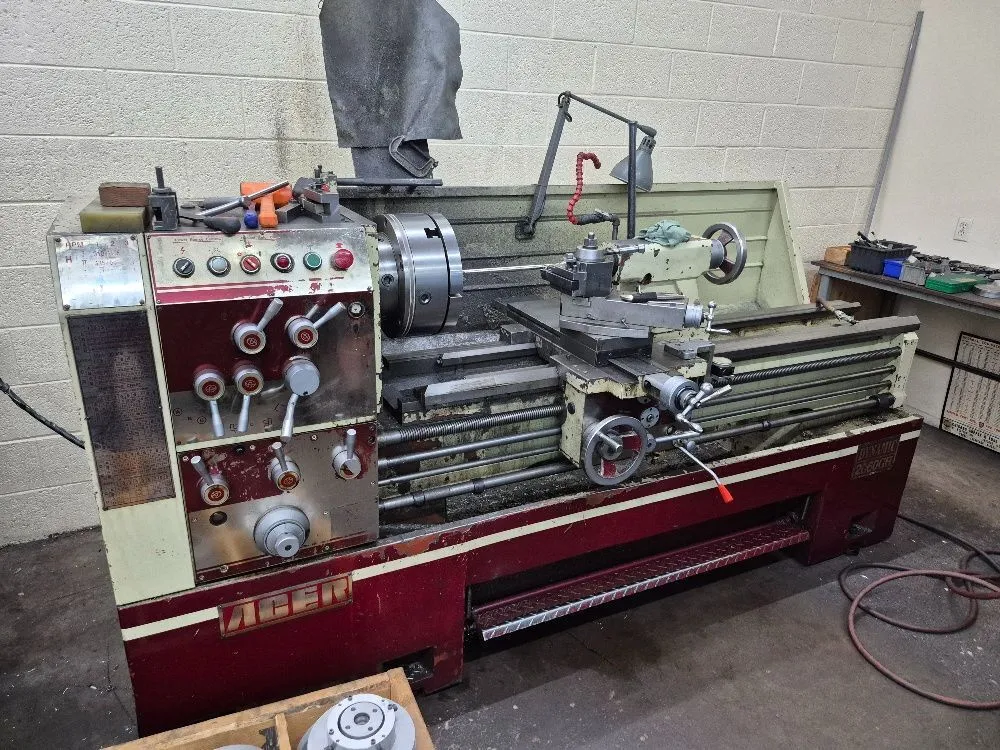

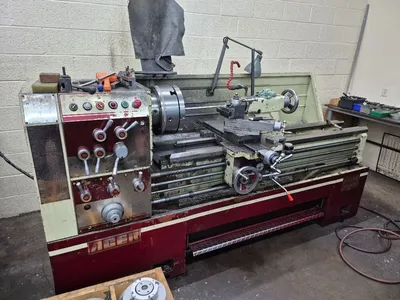

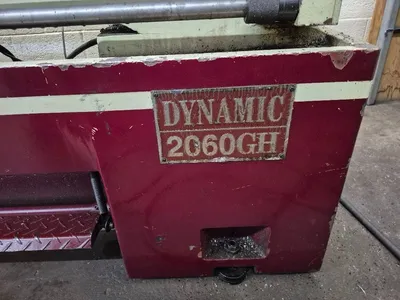

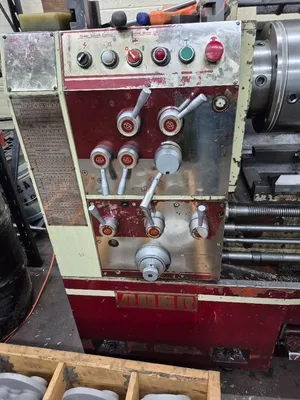

Acer Dynamic 2060GH Lathe

Center Height....................10"
Swing Over Bed...................20"
Swing Over Gap...................29.5"
Swing Over Cross Slide...........12"
Distance Between Centers.........60"
Spindle Nose.....................D1-8 or ASA-A1-8
Spindle Bore Diameter............3-1/16"
Type of Spindle Nose.............MT-8
Taper of Center..................MT-5
Spindle Speed....................30 - 1500 RPM (16 Steps)
Cross Slide Travel...............13.2"
Compound Rest Travel.............8"
Max. Size Cutting Tool...........1" x 1"
Spindle Diameter.................3"
Spindle Travel...................7"
Tailstock Taper..................MT-5
Bed Length.......................107"
Bed Width........................14.96"
Width of Gap.....................10"
System...........................Inch/ Metric
Pitch of Leadscrew...............Ø 1-1/2", 4 TPI
Metric Pitch Threads.............0.5~7 mm/pitch, 40 kinds
Inch Pitch Threads...............4~56 tpi, 14 kinds
Module Pitch Threads.............0.25~3.5 M.P., 14 kinds
Diametral Pitch Threads..........8~112 D.P., 18 kinds
Range of Longitudinal Feeds......0.0015"~0.0216"/rev.
Range of Cross Feeds.............0.0015"~0.0216"/rev.
Main Drive Motor.................10 HP, 4P/8P
Coolant Pump Motor...............1/8 HP
Floor Dimension..................115.35" x 57.48" x 56.69"
Machine Weight...................6600 lbs
