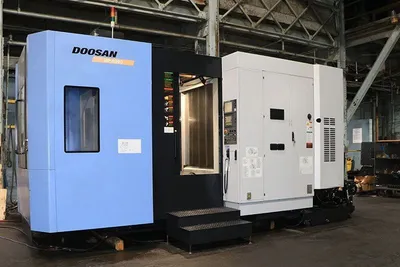

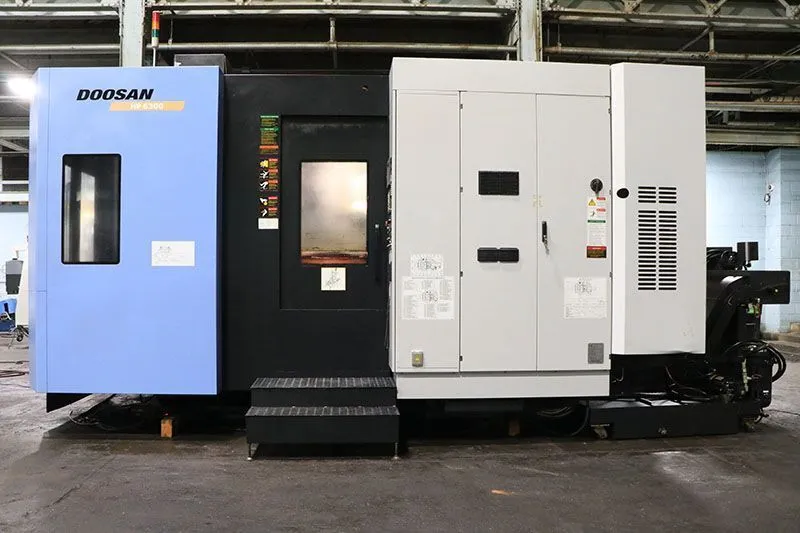

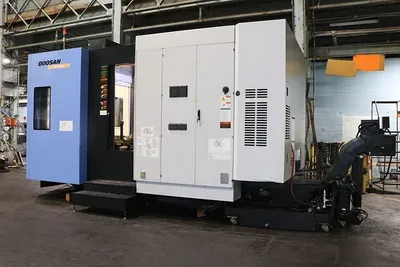

2008 Doosan HP-6300 Horizontal Machining Center

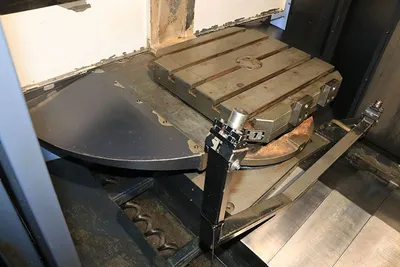

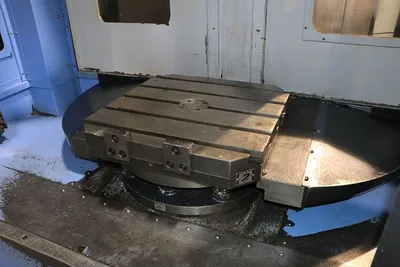

PALLET SIZE..............................24.8" X 24.8" (630MM)
NUMBER OF PALLET STATIONS................2
MAXIMUM WORKPIECE WEIGHT.................2650 LBS
SPINDLE NOSE TO PALLET CENTER............2.952" - 36.41"
SPINDLE CENTER TO PALLET TOP.............5.90" - 39.37"
PALLET INDEXING..........................0.001 DEGREE
X-AXIS TRAVEL............................39.37"
Y-AXIS TRAVEL............................33.46"
Z-AXIS TRAVEL............................33.46"

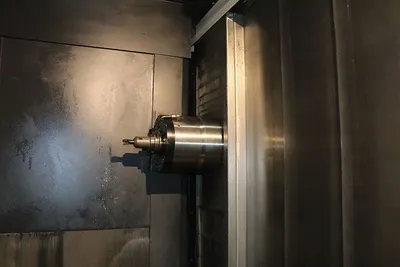

SPINDLE DRIVE............................30 HP
SPINDLE TAPER............................CAT-50
MAXIMUM SPINDLE SPEEDS...................10,000 RPM
RAPID TRAVERSE RATE (X/Y/Z)..............1,889 IPM
MAX CUTTING FEED RATE....................944 IPM

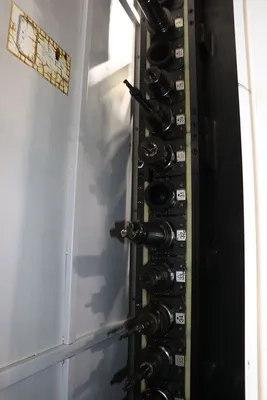

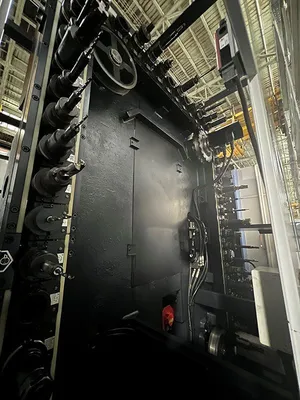

TOOLCHANGER CAPACITY.....................60 STATIONS
MAXIMUM TOOL DIAMETER....................4.9"
MAX. TOOL DIA. WITHOUT ADJACENT TOOLS....9.8"
MAXIMUM TOOL WEIGHT......................44 LBS
APPROXIMATE DIMENSIONS...................230" x 140" x 132"
APPROXIMATE WEIGHT.......................46,300 LBS
