Used 1995 SUPERMAX TC-2 | CNC Lathes
Have one to sell?
ConditionUsed
1 available

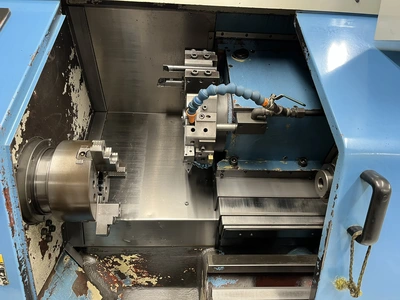

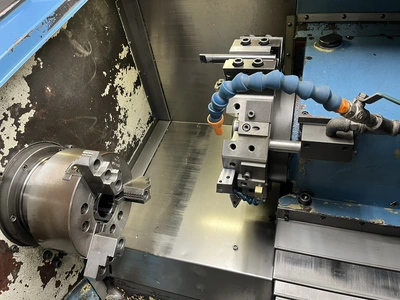

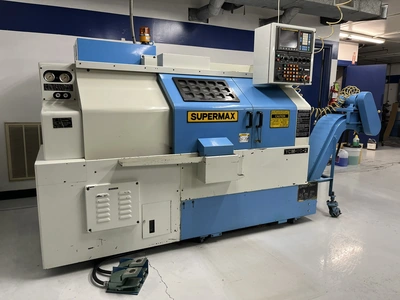

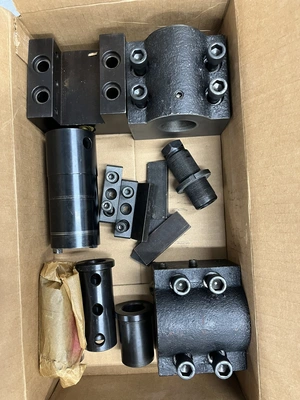

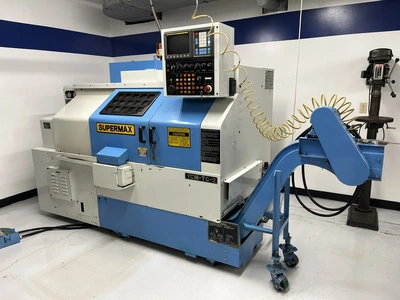

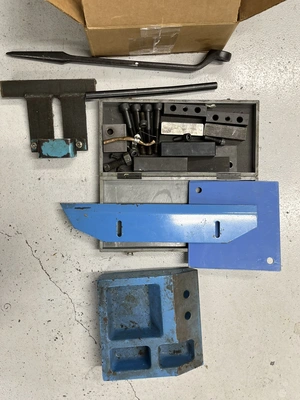

Supermax TC-2 CNC Lathe with Kitigawa 8" chuck and all original boring bar holders and tool mounting hardware. Used primarily to machine aluminum. Sold as is. Local pick up - rigging required.
Chuck diameter: 8"
Swing over bed: 18.89”
Swing over carriage: 12.20”
Spindle nose: A2-6
Hole through spindle: 2.44"
Spindle speeds: 40 – 4,000 R.P.M.
X axis travel: 5.90”
Z axis travel: 19.68”
Max machining diameter: 9.84”
Tailstock quill stroke: 12.40”
Distance between centers: 21.65”

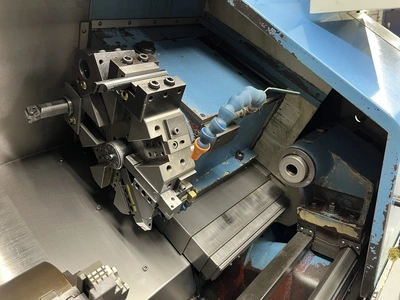

Turret stations: -8
Tailstock quill diameter: 2.95”
Tailstock taper: #4 Morse

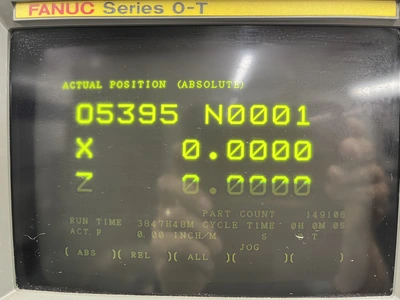

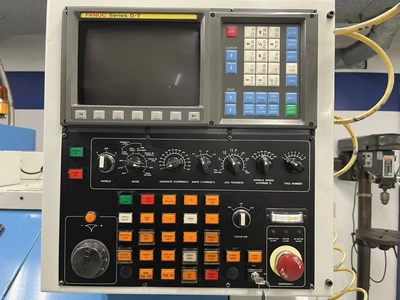

Fanuc 0-T CNC Control

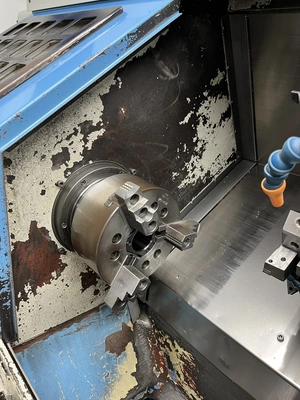

8" Chuck
Tailstock

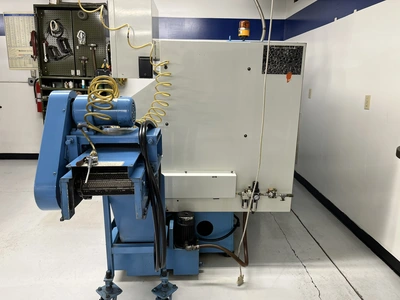

Chip Conveyor
