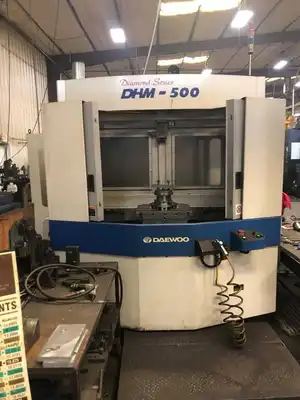

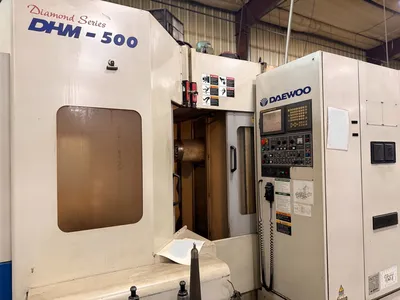

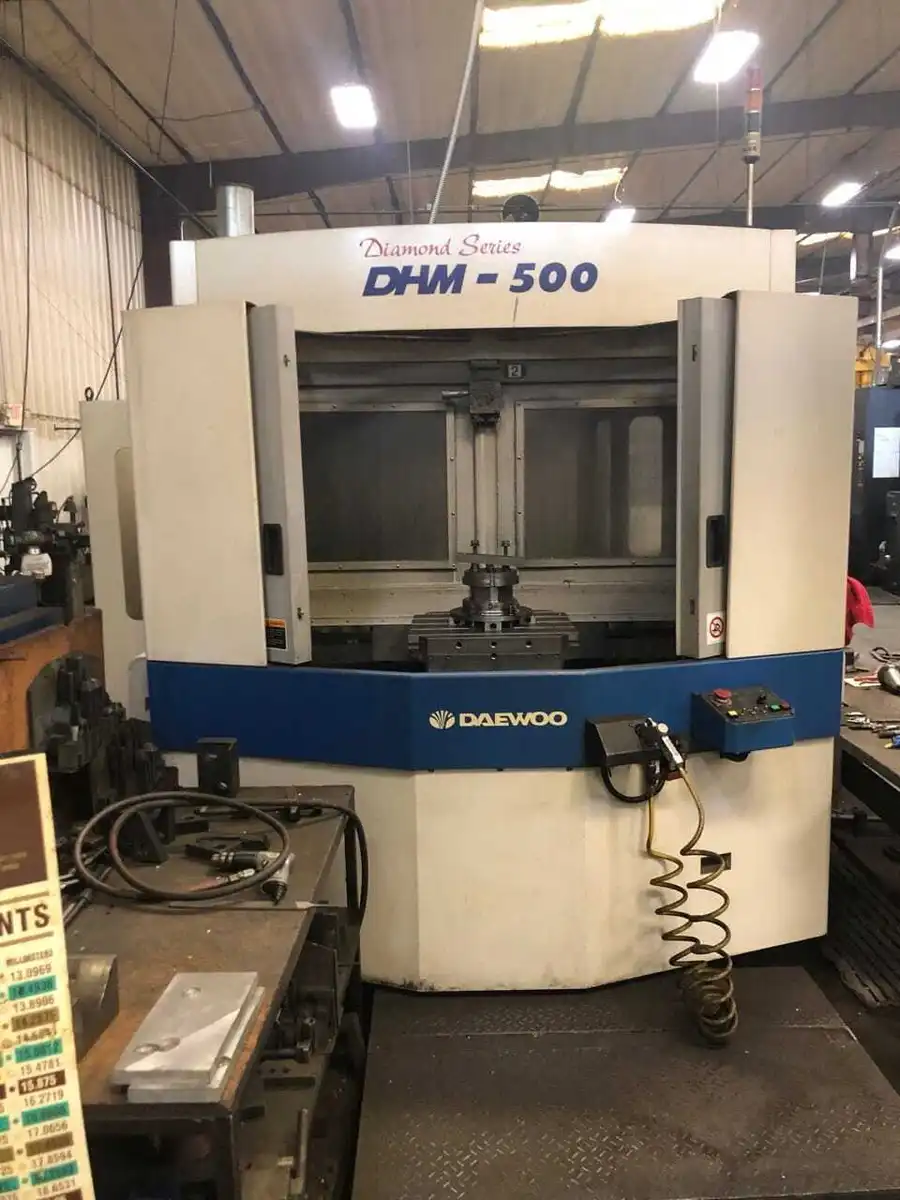

Daewoo DHM-500 Horizontal Machining Center

Pallet Size...........................19.7" x 19.7"
Number Of Pallets.....................2
Table Load Capacity...................1,764 LBS
Spindle Nose To Table Center..........5.9" - 31.5"
Spindle Center To Table Top...........2" - 27.6"
Table Indexing........................1 Degree
X-Axis Travel.........................31.56"
Y-Axis Travel.........................25.6"
Z-Axis Travel.........................25.6"
Spindle Motor.........................15 HP
Spindle Taper.........................CAT-50
Speed Ranges..........................3
Spindle Speeds........................6,000 RPM
Spindle Torque........................738 FT-LBS.
Rapid Traverse Rates..................945 IPM

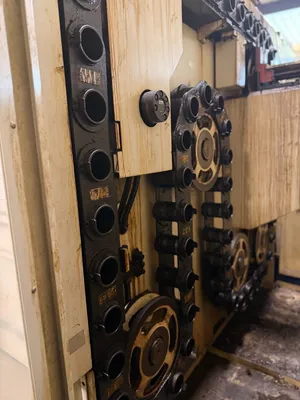

Number Of Tool Positions..............60 ATC
Maximum Tool Weight...................55 LBS
Max Tool Diameter.....................5.3"/9.8"
Max Tool Length.......................15.7"
Machine Weight........................29,700 LBS
