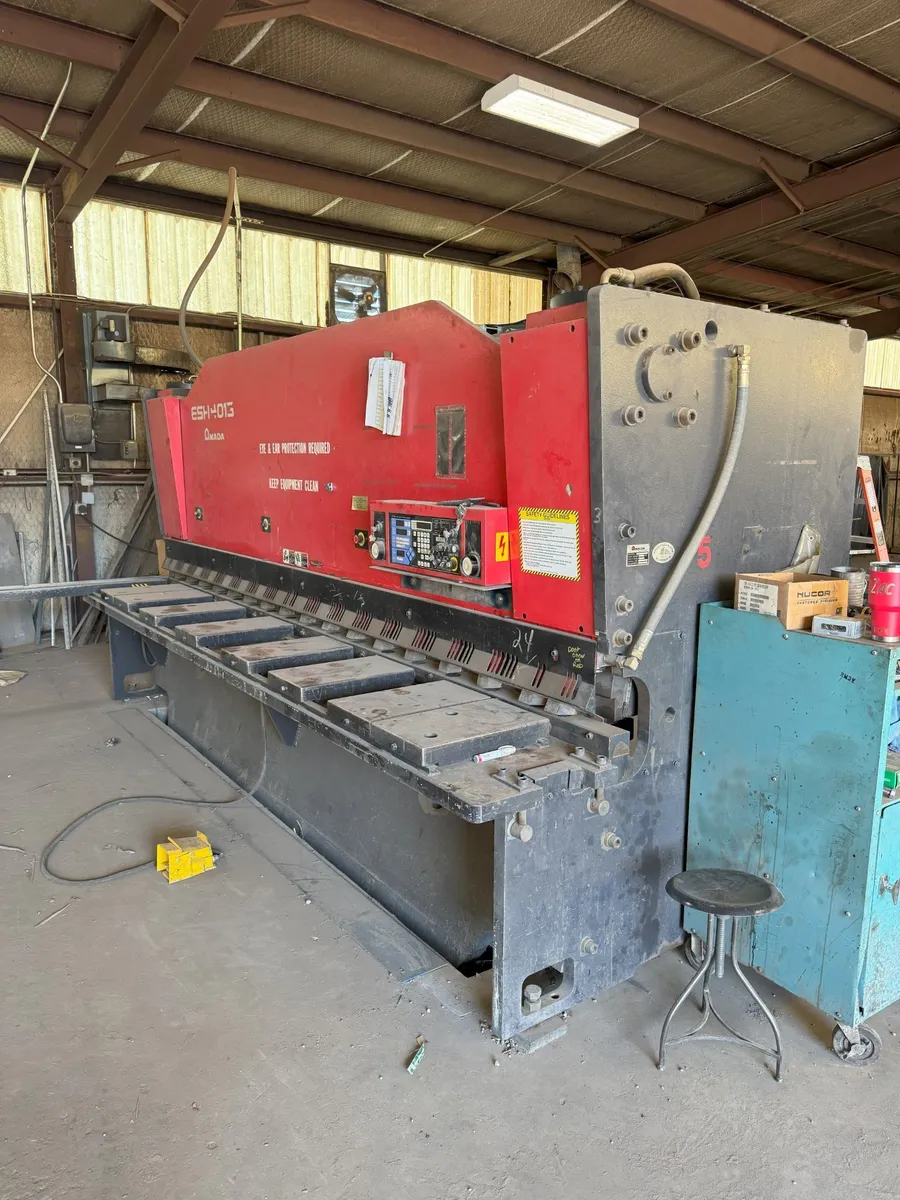

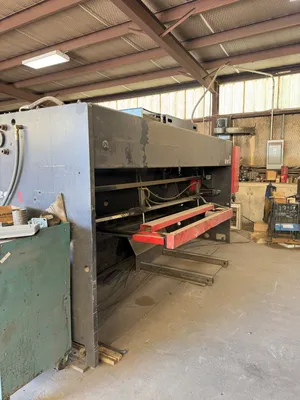

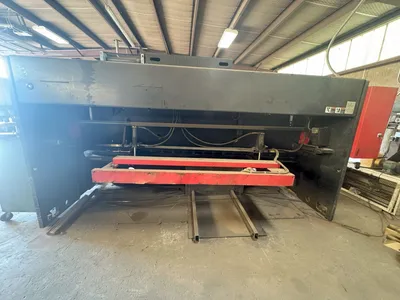

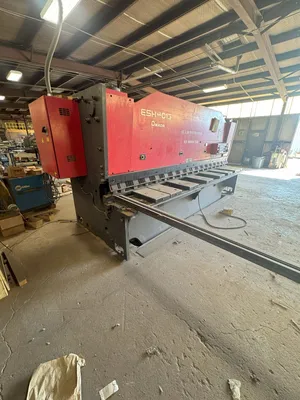

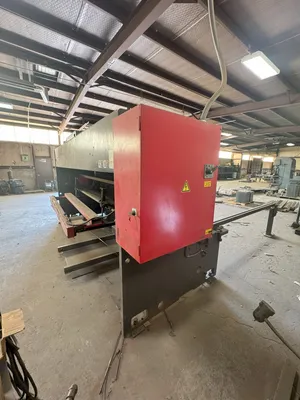

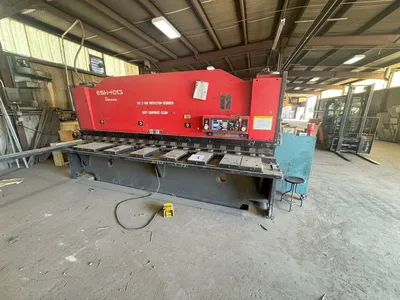

Amada ESH-4013 Hydraulic Shear
Have one to sell?
ConditionUsed
1 available
2002 Amada ESH-4013 Hydraulic Shear - 1/2" x 159", 40 HP Motor, Squaring Arm, and Electric Foot Pedal.
Max Thickness..............0.5"
Length of Blade............159"
Hyd/Mech...................Hyd
Power......................40 HP
Cutting Speed..............9 Strokes/Min.
Rake Angle.................Adjustable from 0.5° to 3°
Machine Weight.............28,660 LBS

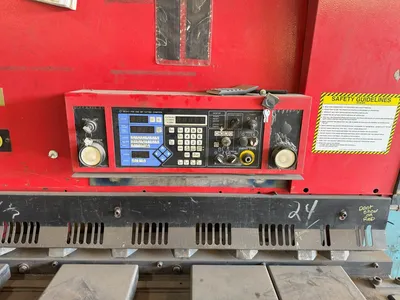

Amada Front Programmable Go-To Back Gauges
Front Squaring Arm
Ball Transfer in Table
Electric Foot Switch
**PIT REQUIRED**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2002 Amada ESH-4013 Hydraulic Shear - 1/2" x 159", 40 HP Motor, Squaring Arm, and Electric Foot Pedal.
Imperial
| Max Thickness | 0.5" |
| Length of Blade | 159" |
| Hyd/Mech | Hyd |
| Power | 40 hp |
| SPM | 9 strokes/min. |
| Weight | 28660 LBS |
Max Thickness..............0.5"
Length of Blade............159"
Hyd/Mech...................Hyd
Power......................40 HP
Cutting Speed..............9 Strokes/Min.
Rake Angle.................Adjustable from 0.5° to 3°
Machine Weight.............28,660 LBS
Amada Front Programmable Go-To Back Gauges
Front Squaring Arm
Ball Transfer in Table
Electric Foot Switch
**PIT REQUIRED**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
