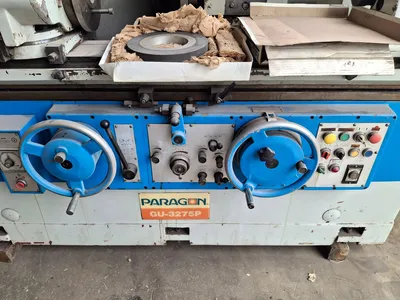

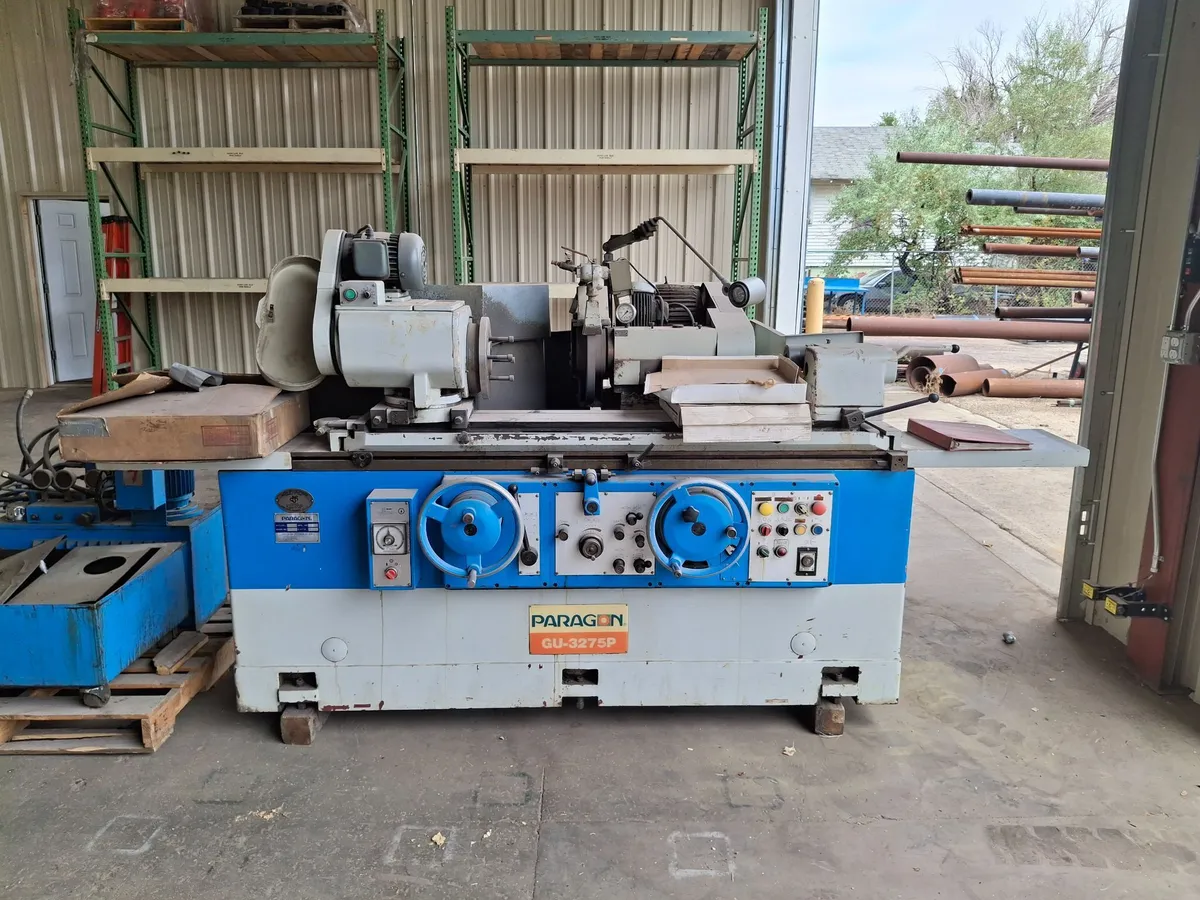

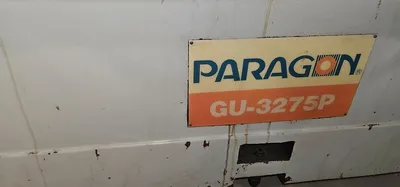

Paragon GU-3275P Universal Cylindrical Grinder

Swing.........................................12.59"
Center Distnce................................29.5"
Max. Grinding Diameter........................11.02"
Max. Grinding Wheel...........................16" x 2" x 5"
Max Weight Capacity...........................330 LBS
Max. Grinding wheel speed.....................1,550 RPM
Wheelhead handwheel feed stroke...............160
Wheelhead automatic rapid feed stroke.........40
Wheelhead automatic infeed stroke.............0.001"
X-axis min. resolution increment..............0.001"
X-axis rapid traverse speed...................6
Z-axis min. resolution increment (mm).........0.01
Z-axis can be swiveled manually in deg........0 ~ +5 Degree
Z-axis min. automatic reciprocating stroke....10 - 14
Workhead spindle speed........................5 - 750 RPM
Workhead swiveling angle......................90° - 30°
Tailstock hyd. Sleeve retraction..............1.37"
Tailstock center..............................MT-4
Wheel spindle motor...........................5 HP
Workhead spindle servo........................1 KW
Internal grinding motor.......................1 HP
Machine dimensions............................145" x 90" x 71"
Machine weight................................8,157 LBS
