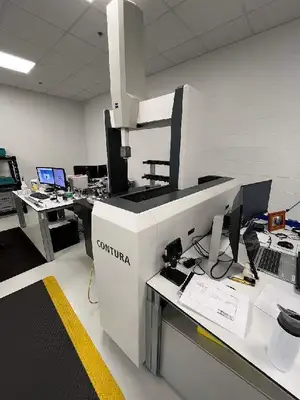

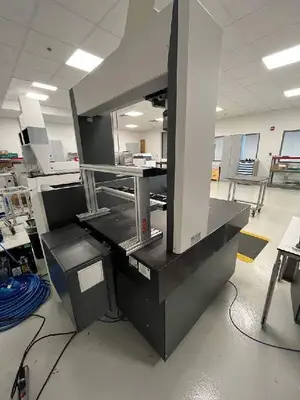

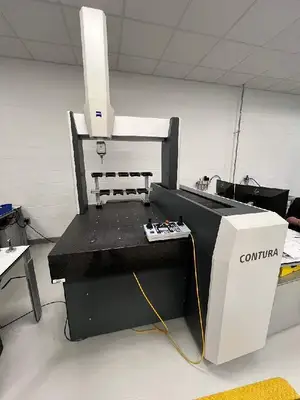

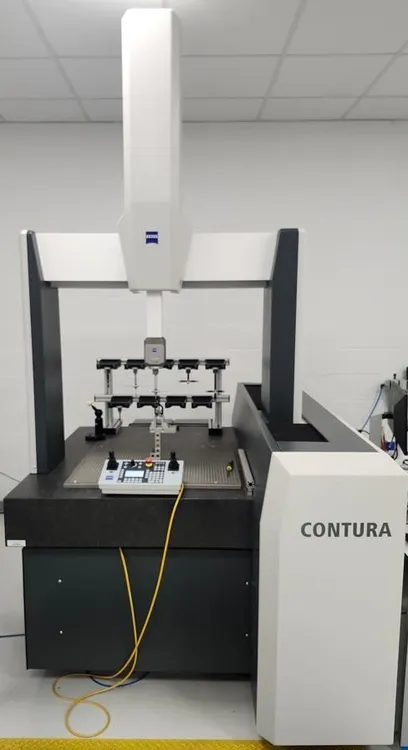

2016 ZEISS CONTURA 7/10/6 CMM with Calypso 2024 Software, HP Z4 V2 Performance Workstation, VAST XT Gold Sensor, Active scanning sensor, MSR Multisensor Rack, Ceramic reference sphere
X‑Axis Travel..........................700 mm
Y‑Axis Travel..........................1000 mm
Z‑Axis Travel..........................600 mm
Accuracy (MPE_E)......................(1.8 + L/300) µm (ISO 10360‑2)
Accuracy (MPE_P).......................1.8 µm (ISO 10360‑4)
Overall Dimensions....................67" Long × 59" Wide × 110" High
Machine Weight........................3,400 lbs
Calypso 2024 Software

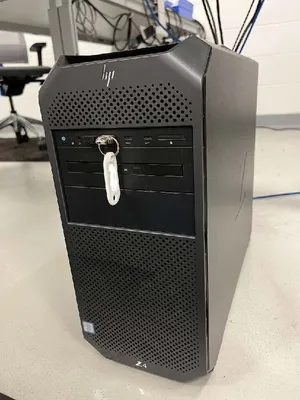

HP Z4 V2 Performance Workstation running Windows 10 Enterprise (Upgraded in 2022)

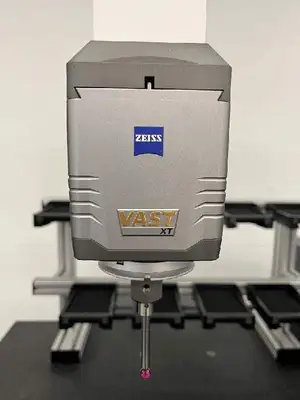

VAST XT Gold Sensor
Active scanning sensor
Customizable measuring force
Allows for single point measurements

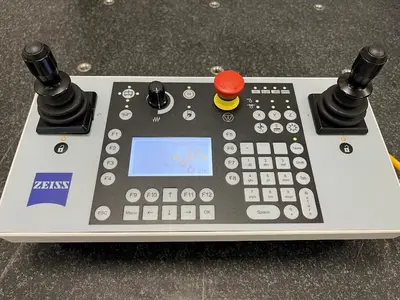

Controller with Joystick
MSR Multisensor Rack- 2 levels
Reference stylus M5, DK8 L63.5 with adapter plate for styli qualification

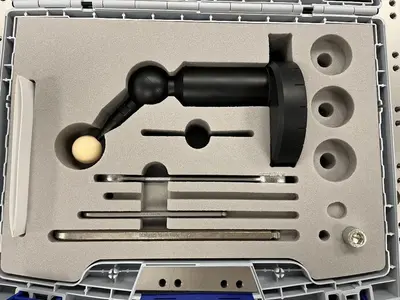

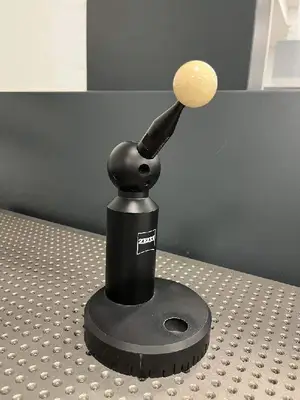

Ceramic reference sphere for styli qualification with original box

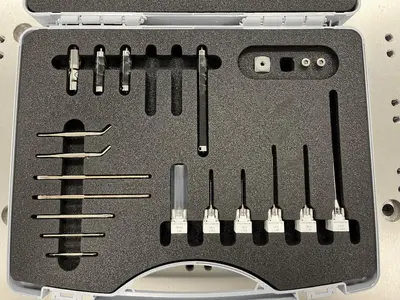

M5 stylus kit (mostly complete)
(2) Adapter Plates VAST (XT) gold, cube-5x-M5
(3) Probe Sockets for holding Stylus Systems
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
