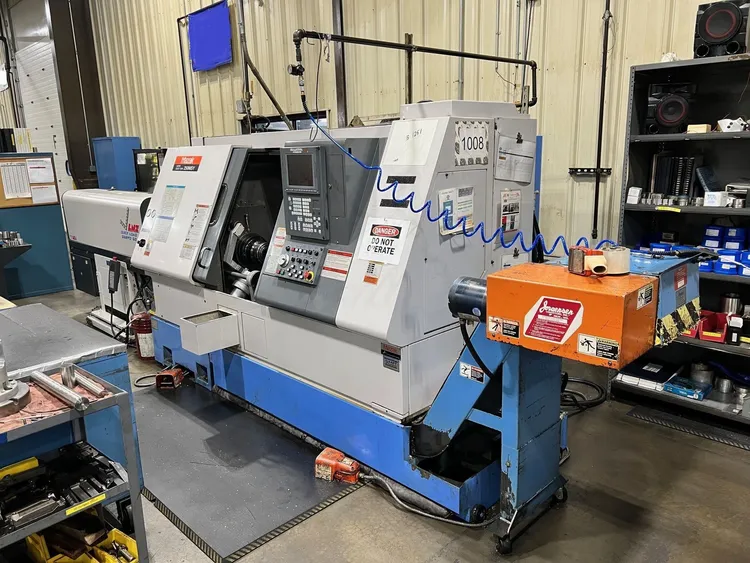

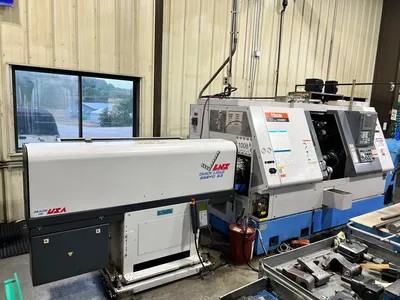

Mazak SQT-250MSY CNC Turning Center with Sub-Spindle, Live Tooling, and Y-Axis

MAX SWING OVER BED..............20.67”
SWINT OVER CARRIAGE.............16.54"
MAX TURNING DIAMETER............11.81"
DISTANCE BETWEEN SPINDLES.......22.63"
X-AXIS TRAVEL...................7.12"
Z-AXIS TRAVEL...................22.63"
Y-AXIS TRAVEL...................3.9"
C-AXIS INDEX....................0.001 DEGREE
SPINDLE MOTOR...................25 / 20 HP
SPINDLE NOSE....................A2-8
SPINDLE BORE....................2.99"
BAR CAPACITY....................2.5"
SPINDLE SPEED...................4000 RPM
SUB SPINDLE MOTOR...............10 / 7.5 HP
SUB SPINDLE SPEED...............5000 RPM
RAPID TRAVERSE RATES............1180 IPM
MILLING MOTOR...................5 HP
MILLING SPEED...................4500 RPM
NUMBER OF TOOLS.................12
MACHINE DIMENSIONS..............121.3" x 70.4" x 78.7"
MACHINE WEIGHT..................12,760 LBS
