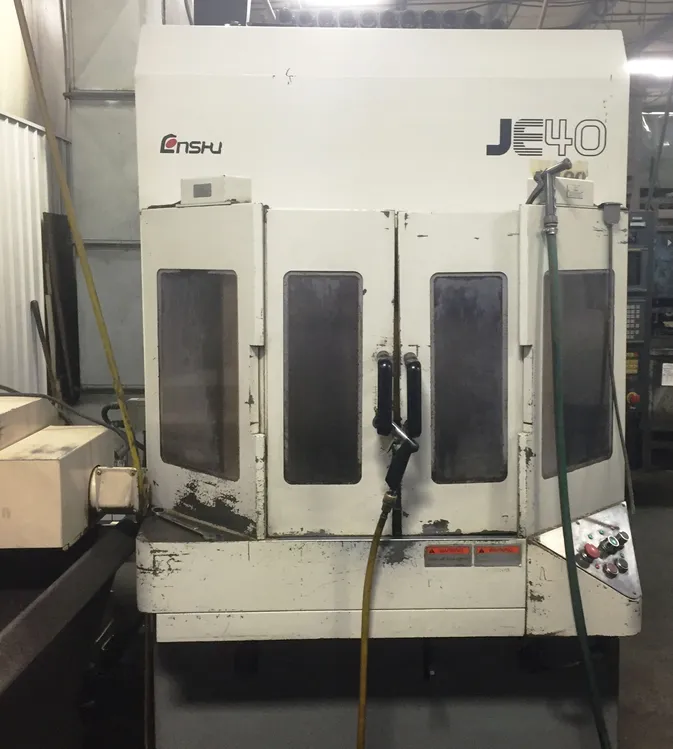

Enshu JE 40 Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
1999 Enshu JE 40 Horizontal Machining Center with Fanuc 18M Control, 10,000 RPM, CAT-40 Spindle, 30 Station ATC, 1 Degree 4th Axis
Pallet Dimensions.................................... 15.7" x 15.7"
Maximum Pallet Load.................................. 880 LBS
Maximum Workpiece Size (D x H)....................... 20.5" x 19.7"
Longitudinal Table Travel (X-Axis)................... 15.7"
Vertical Travel (Y-Axis)............................. 19.7"
Head Cross Travel (Z-Axis)........................... 15.7"
Number of Index Positions............................ 360
Feed Rate, All Axes.................................. 0.04 - 393.7 IPM
Rapid Traverse, All Axes............................. 1417 IPM
Spindle Speed Range.................................. 10,000 RPM
Spindle Taper........................................ 40
Number of Tool Positions............................. 30
Approximate Machine Dimensions....................... 144" x 100"
Approximate Machine Height........................... 106"
Approximate Machine Weight........................... 12,000 LBS

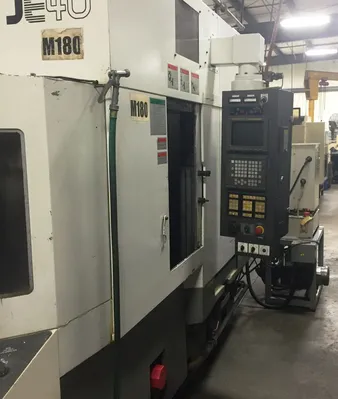

Fanuc 18M CNC Control w/ 14" Color CRT
Upgraded Hyd. Units
Spindle Chiller
Spindle Air Curtain
2 Speed Ranges
Flood Coolant
Shower Coolant
Bed Flush Coolant
RS232 Port
Graphic Function
Manual Pulse Generator
RS-232C Port for DNC Interface
Part Program Storage and Editing
Background Edit
Canned Cycles
Backlash Compensation
Dwell
Dry Run
30 Station Automatic Tool Changer Option
(2) 15.7" Pallets w/ 1 Degree Indexing
****All Specifications & Options to be Verified by Buyer****
