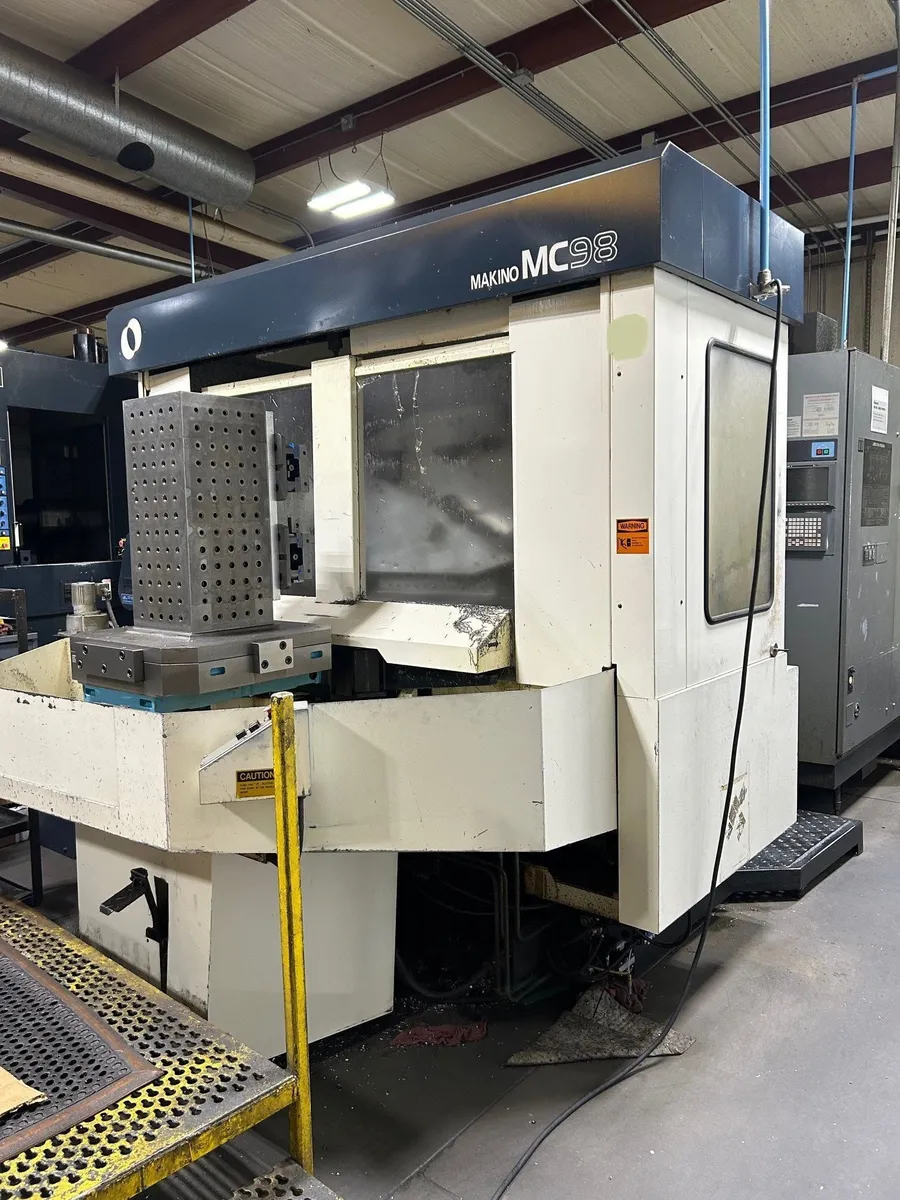

Makino MC98-A60 Horizontal Machining Center

Have one to sell?
602-516-4267
sales@tighttolerancemachinery.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
MAKINO
Model:
MC-98
Year:
2001
Stock #:
197972502026399
Status:
For Sale

Description

2001 Makino MC98-A60 Horizontal Machining Center with Pro 3 Control, Full 4th Axis, 60 ATC, and 4,000 RPM, CAT-50 Spindle.

X36"914.4 mm
Y32"812.8 mm
Z29.5"749.3 mm
Power25 hp18.6 kW
RPM4,000 RPM4,000 RPM
# ATC6060
Taper5050
Pallet-W24.8"629.92 mm
Pallet-L24.8"629.92 mm
# Axis44
ControlCNC (Makino Professional 3 (Fanuc 16iM) Control)CNC (Makino Professional 3 (Fanuc 16iM) Control)
Dimensions207" x 160" x 119"207" x 160" x 119"
Weight32,000 LBS32,000 LBS

Pallet Size.................24.8" X 24.8"
Maximum Pallet Load.........2860 LBS
X-Axis Travel...............36"
Y-Axis Travel...............31.9"
Z-Axis Travel...............29.5"
B-Axis Indexing.............0.001"
Spindle Motor...............25 HP
Spindle Taper...............CAT-50
Spindle Speed...............4,000 RPM
Number of Tools.............60 ATC
Feed Range..................0.04 - 160 IPM
Rapid Traverse..............600 IPM
Machine Dimensions..........207" x 160" x 119"
Machine Weight..............32,000 LBS

Makino Pro 3 CNC Control w/Color CRT
4,000 RPM, CAT-50 Spindle
Full 4th Axis

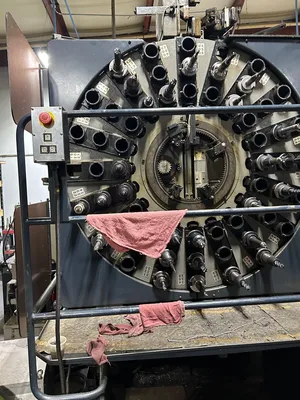

60 Station ATC

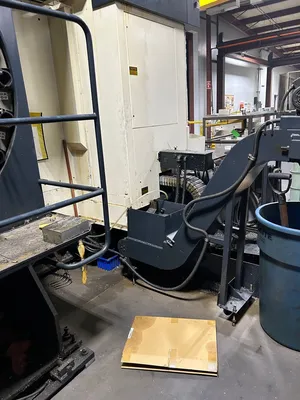

Chip Conveyor

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**

Overview

Type:
Horizontal Machining Centers
Manufacturer:
MAKINO
Model:
MC-98
Year:
2001
Stock #:
197972502026399
Status:
For Sale

Description

2001 Makino MC98-A60 Horizontal Machining Center with Pro 3 Control, Full 4th Axis, 60 ATC, and 4,000 RPM, CAT-50 Spindle.

Specifications

Imperial

X36"
Y32"
Z29.5"
Power25 hp
RPM4,000 RPM
# ATC60
Taper50
Pallet-W24.8"
Pallet-L24.8"
# Axis4
ControlCNC (Makino Professional 3 (Fanuc 16iM) Control)
Dimensions207" x 160" x 119"
Weight32,000 LBS

Pallet Size.................24.8" X 24.8"
Maximum Pallet Load.........2860 LBS
X-Axis Travel...............36"
Y-Axis Travel...............31.9"
Z-Axis Travel...............29.5"
B-Axis Indexing.............0.001"
Spindle Motor...............25 HP
Spindle Taper...............CAT-50
Spindle Speed...............4,000 RPM
Number of Tools.............60 ATC
Feed Range..................0.04 - 160 IPM
Rapid Traverse..............600 IPM
Machine Dimensions..........207" x 160" x 119"
Machine Weight..............32,000 LBS

Equipped With

Makino Pro 3 CNC Control w/Color CRT
4,000 RPM, CAT-50 Spindle
Full 4th Axis
60 Station ATC
Chip Conveyor

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
