Haas VF-9/40
Have one to sell?
ConditionUsed
1 available

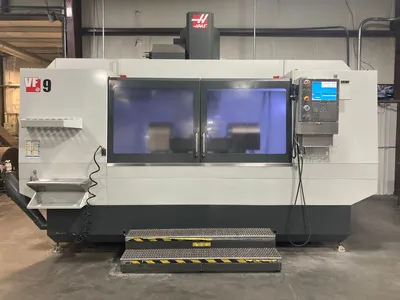

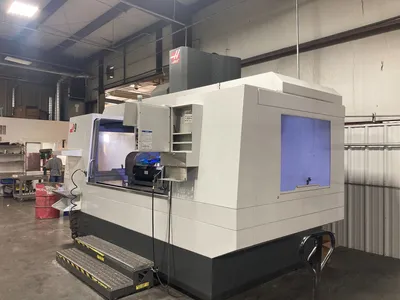

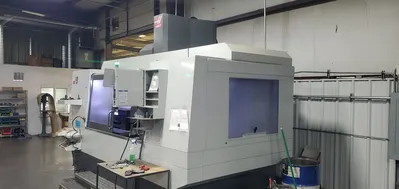

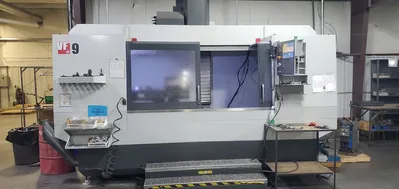

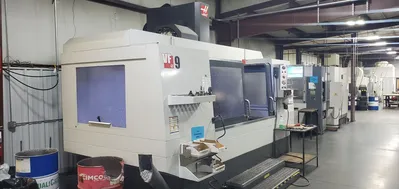

2015 Haas VF-9/40 with 8" Extended Z-Axis Travel, High Speed Machining, 300 PSI Through Spindle Coolant, Haas TR-310 5th Axis, Internal High Voltage Transformer, and Auxiliary Coolant Filter.
Table Size......................................84" x 36"
Maximum Weight on Table.........................4,000 LBS
Spindle Nose to Table...........................4" - 34"
X-Axis Travel...................................84"
Y-Axis Travel...................................40"
Z-Axis Travel...................................30"
Spindle Taper...................................CAT-40
Spindle Motor...................................30 HP
Spindle Speed...................................8,100 RPM
Max Cutting.....................................500 IPM
Rapids (X,Y,Z)..................................600 IPM
Number of Tools.................................24+1 ATC
Max Tool Diameter (full)........................2.5"
Max Tool Diameter (adjacent empty)..............6"
Max Tool Length (from gage line)................16"
Max Tool Weight.................................12 LBS
Tool-to-Tool (avg)..............................2.8 Seconds
Chip-to-Chip (avg)..............................3.6 Seconds
Weight..........................................25,200 LBS
Haas CNC Control with 15" Color Monitor
Color Remote Jog Handle
Expanded Memory
USB/Ethernet
High Speed Machining
300 PSI Through Spindle Coolant
4th Axis & 5th Axis Drive & Wiring

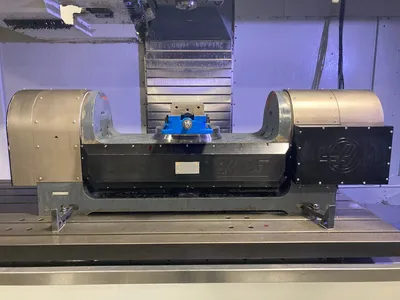

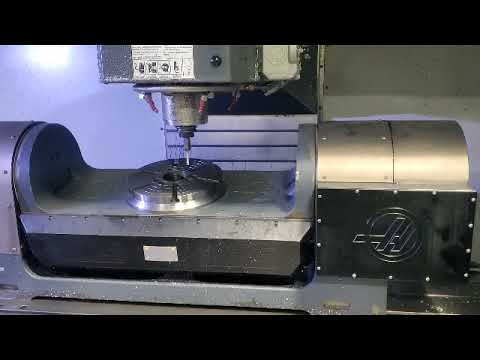

Haas TR-310 5th Axis Reunnion Table
8" Extended Z-Axis Clearance
Programmable Coolant Nozzle
Rigid Tapping
Internal High-Voltage Isolated Transformer for 380-480V
Auxiliary Coolant Filter
Chip Auger
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
