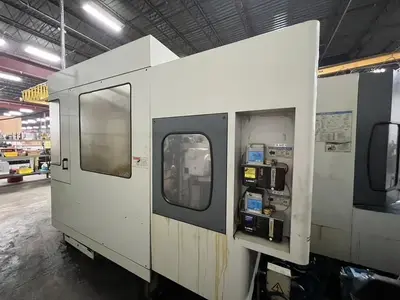

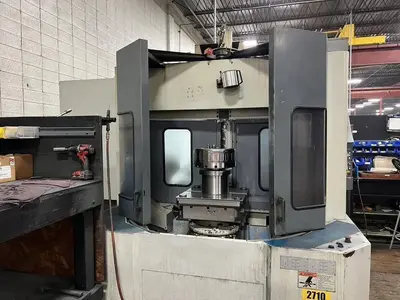

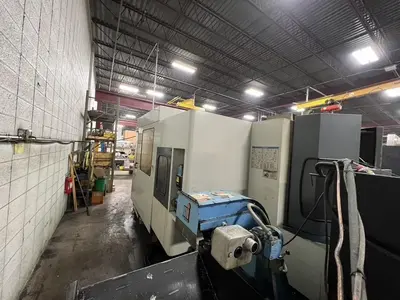

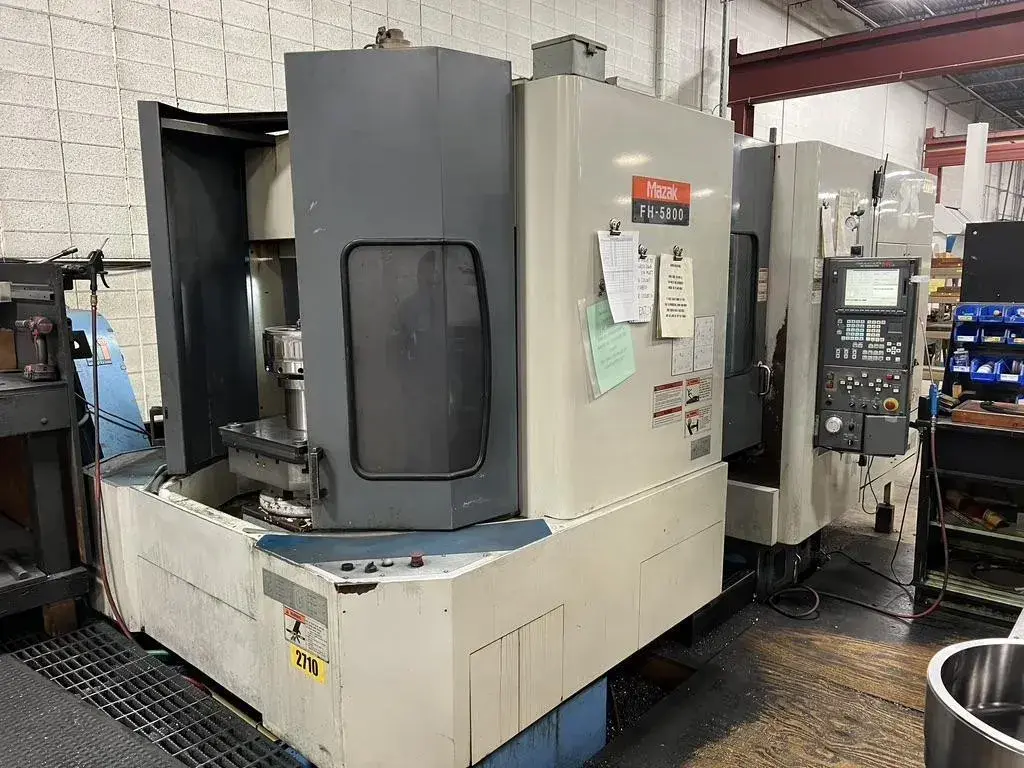

Mazak FH-5800 Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
1998 Mazak FH-5800 Horizontal Machining Center with Fusion 640M Control, 12,000, CAT-40 Spindle, Full 4th Axis, 80 ATC, Through Spindle Coolant.
PALLET SIZE........................ 19.7" x 19.7"
NUMBER OF PALLETS.................. 2
MAXIMUM TABLE LOAD................. 2,205 LBS
X-AXIS TRAVEL...................... 28"
Y-AXIS TRAVEL...................... 24"
Z-AXIS TRAVEL...................... 26"
B-AXIS INDEXING.................... 360,000 POSITIONS
SPINDLE MOTOR (2 SPEED GEARED)..... 30 HP
SPINDLE TAPER...................... CAT 40
SPINDLE SPEEDS..................... 12,000 RPM
RAPID TRAVERSE RATE X,Y,& Z AXIS... 945 IPM
CUTTING FEED RATE X,Y, & Z ........ 315 IPM

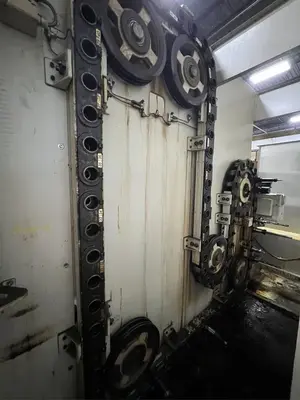

TOOL CHANGER CAPACITY.............. 80 STATION ATC
MAXIMUM TOOL WEIGHT................ 44 LBS
MACHINE WEIGHT..................... 25,700 LBS

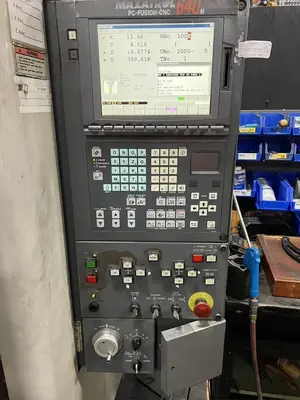

MAZATROL FUSION 640M CONVERSATIONAL CNC CONTROL
RS-232C PORT INTERFACE
RIGID TAPPING
SPINDLE AIR BLAST
TOOL PROBE
FLOOD AND THRU SPINDLE COOLANT
COOLANT THROUGH THE SPINDLE
EXTERNAL LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
