Studer Favorit CNC OD/ID Cylindrical Grinder
Have one to sell?
ConditionUsed
1 available

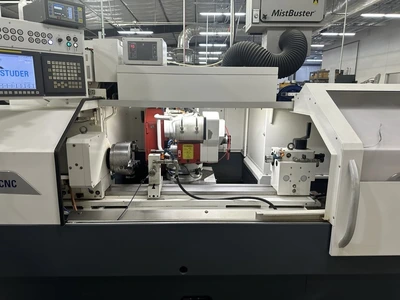

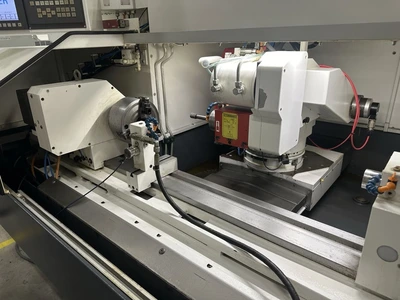

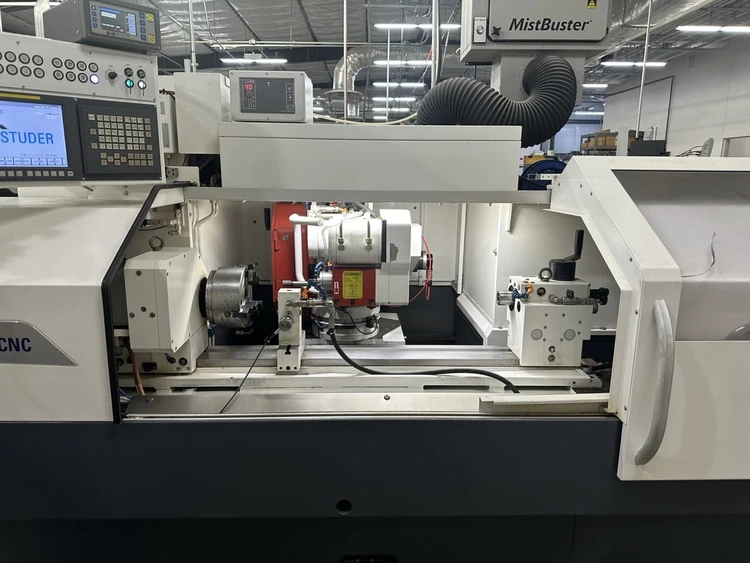

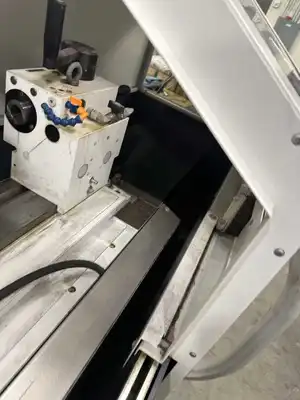

2017 Studer Favorit CNC OD/ID Cylindrical Grinder with Fanuc OI-TD Control, Mist Buster, and Tooling, Wheels, etc. Only 458 Operating Hours.
Max. Workpiece Diameter...........13.75"
Max. Workpiece Length.............26.8"
Max. Workpiece Weight.............176 LBS
Distance Between Centers..........25.6"
Center Height.....................6.9"
X-Axis Travel.....................11.2"
Max Travel Speed X-Axis...........394 IPM
Z-Axis Travel.....................31.5"
Max Travel Speed Z-Axis...........787 IPM
Swiveling Range B-Axis............210 deg
Swiveling Range C-Axis............∞ deg
Max Spindle Power.................12 HP
Max Number Of Revolutions.........2,810 RPM
Max Grinding Wheel Diameter.......20"
Max Grinding Wheel Width..........3.15"
Tailstock Taper...................MT4
Tailstock Quill Travel............1.38"
Tailstock Quill Diameter..........1.97"
Machine Dimensions................12' x 5' x 9'
Floor Space Required..............18' x 5' x 9'
Accessories for Transport.........8' x 8' x 8'
Approx. Weight....................12,000 LBS
Fanuc Series 0i-TD CNC Control
Mist Buster
Various I.D. Grinding Wheels & Misc. Consumables
Two OD Wheel Holders
New OD Wheel Included (Norton)
**ONLY 458 OPERATIONAL HOURS, CRACK IN GLASS FROM ORIGINAL SHIPPING, EXCELLENT CONDITION**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
