DMG Mori NHX5000 CNC Horizontal machining Center
Have one to sell?
ConditionUsed
1 available

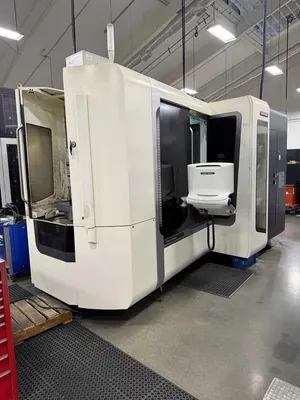

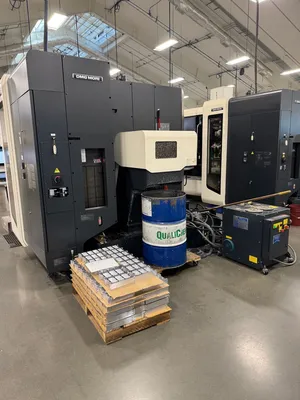

2016 DMG Mori NHX5000 CNC Horizontal machining Center
Pallet Size................19.7" x 19.7"
Max Weight on Table........882 lbs
Max Workpiece Height.......35.4"
X-Axis Travel..............28.7"
Y-Axis Travel..............28.7"
Z-Axis Travel..............28.7"
B Axis Indexing............0.001° ( Full 4th )
Spindle Motor..............40 HP
Spindle Taper..............CAT 40 Big Plus
Spindle Speed..............15,000 RPM
Rapid Traverse Rate........2,362 IPM
Cutting Feedrate...........984 IPM
Tool Capacity..............60 ATC
Max Tool Size..............6.6"
Max Tool Length............17.7"
Max Tool Weight............18 lbs
Tool Change Time...........0.9 Second
Weight (Approx.)...........23,000 lbs
Plus Rigging & Freight
M730 CNC CELOS Control with Celos and MAPPS
Full 4th Axis Direct Drive
Chip Conveyor
Probe (Spindle and Touch)
Coolant Thru Spindle 1000 PSI
Coordinate Rotation and Scaling

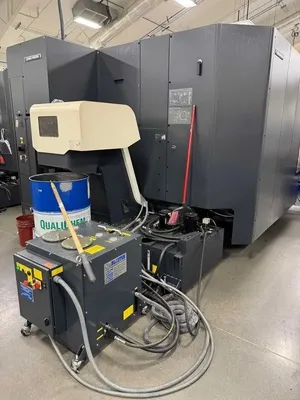

Chip Blaster
Chiller

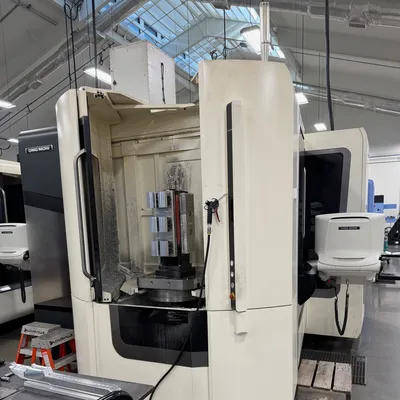

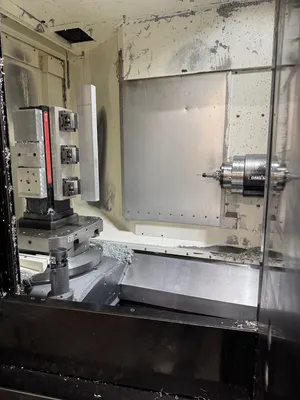

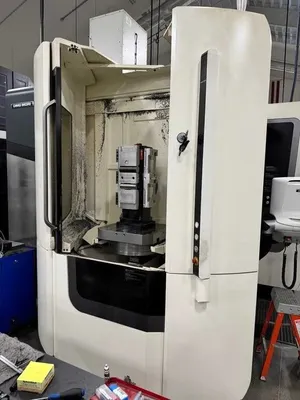

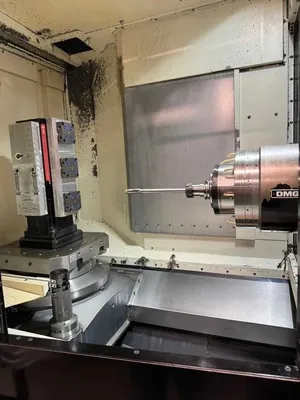

(2) Chick 4-Sided Locking Vise Tombstones Included

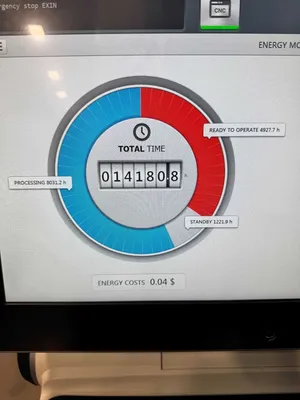

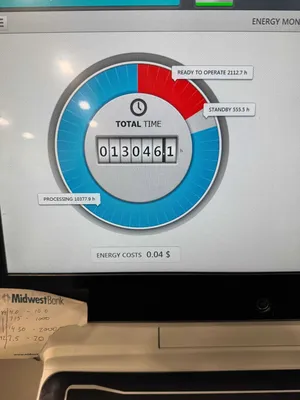

HOURS:
Run Time.....14,180
Cut Time.....8,031

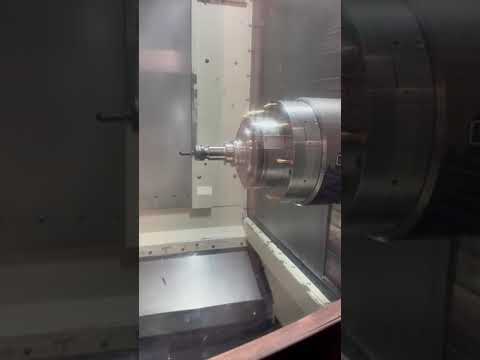

VIDEO:
https://youtube.com/shorts/S6X9pe__qZc
**2 EXTRA PALLETS AVAILABLE**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
