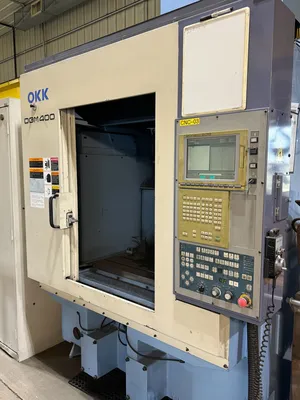

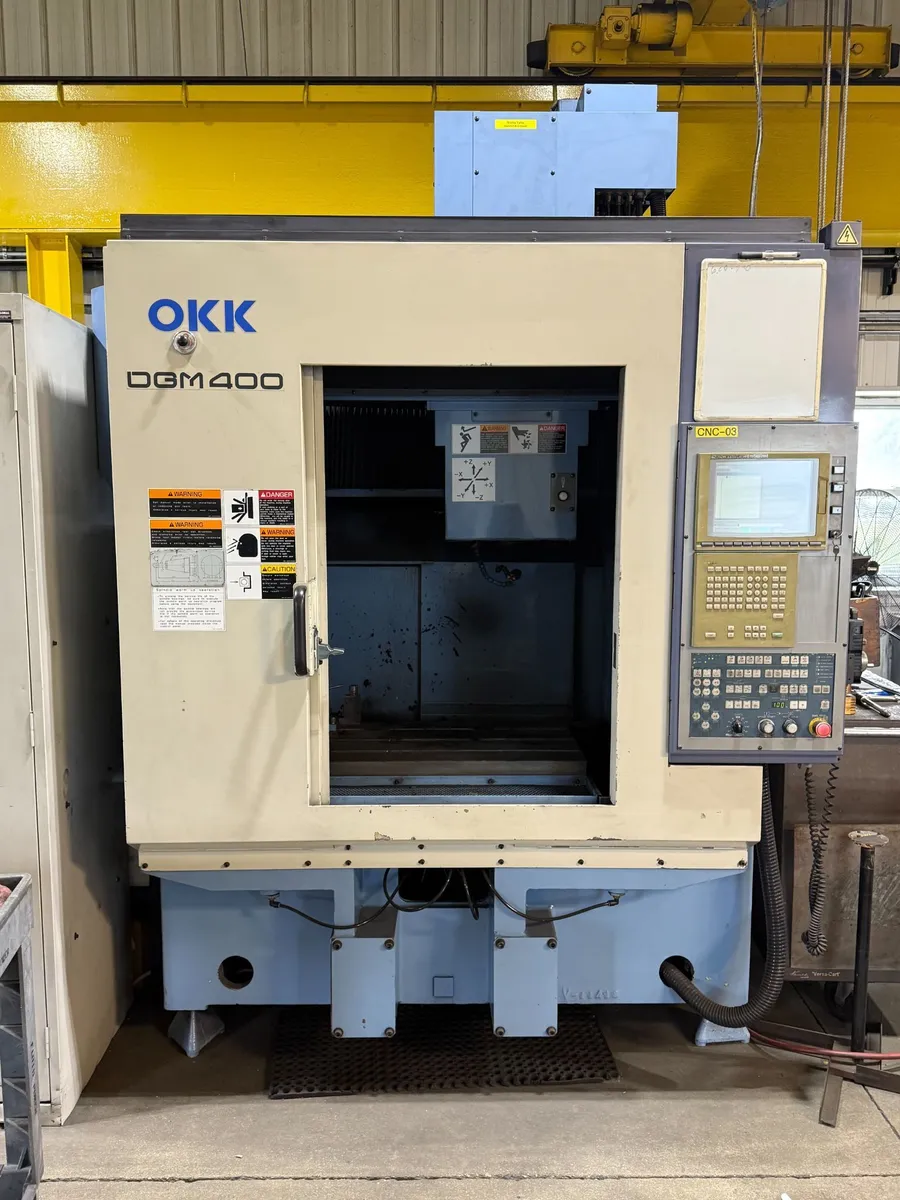

OKK DGM-400 High Speed Graphite Vertical Machining Center

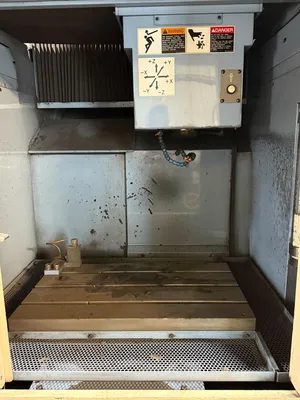

Table Dimensions...............30.32" x 17.72"
Max.load on table..............1,102 LBS
Spindle nose to table..........5.9" - 22.05"
Floor to table surface.........32.68"
Max. long travel, X-Axis.......22.05"
Max. cross travel, Y-Axis......16.14"
Max. vert travel, Z-Axis.......16.14"
Spindle drive motor............10 HP
Spindle speed..................20,000 RPM
Rapid traverse X and Y Axes....1,417 IPM
Rapid traverse Z-Axis..........945 IPM
Max. feed rate (all axes)......630 IPM
Magazine capacity..............16
Tool shank.....................BT-30
Max. tool diameter.............2.36"
Max. tool length...............7.87"
Max. tool weight...............11 LBS
Tool change time...............1.5 Seconds
Chip to chip...................6.0 Seconds
Air pressure required..........72.5 PSI
Air flow required..............184 GPM
Dimensions.....................5.5' x 10.05' x 9.1'
Weight.........................11,464 LBS
