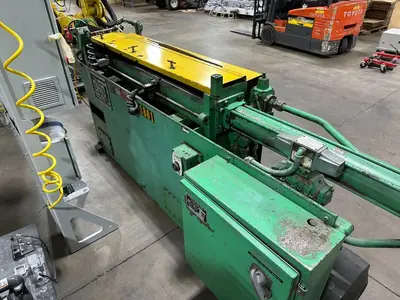

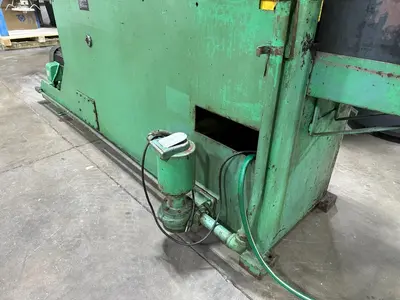

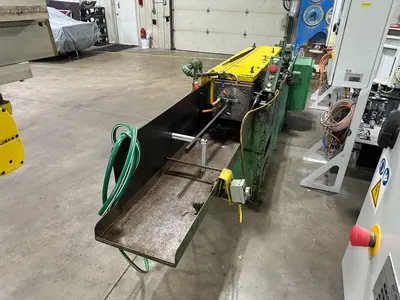

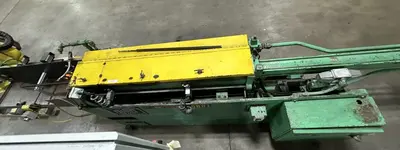

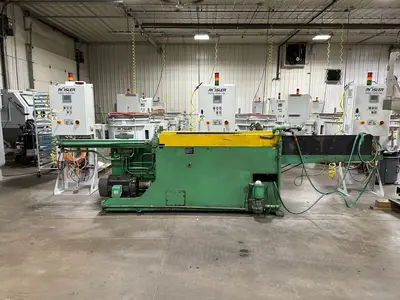

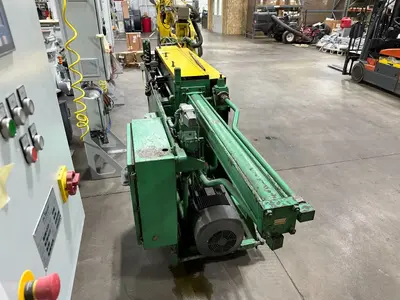

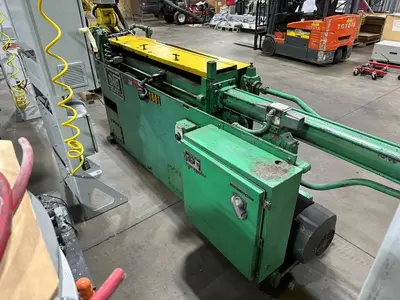

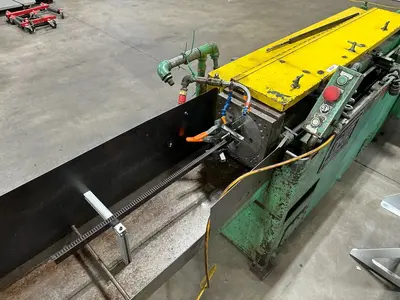

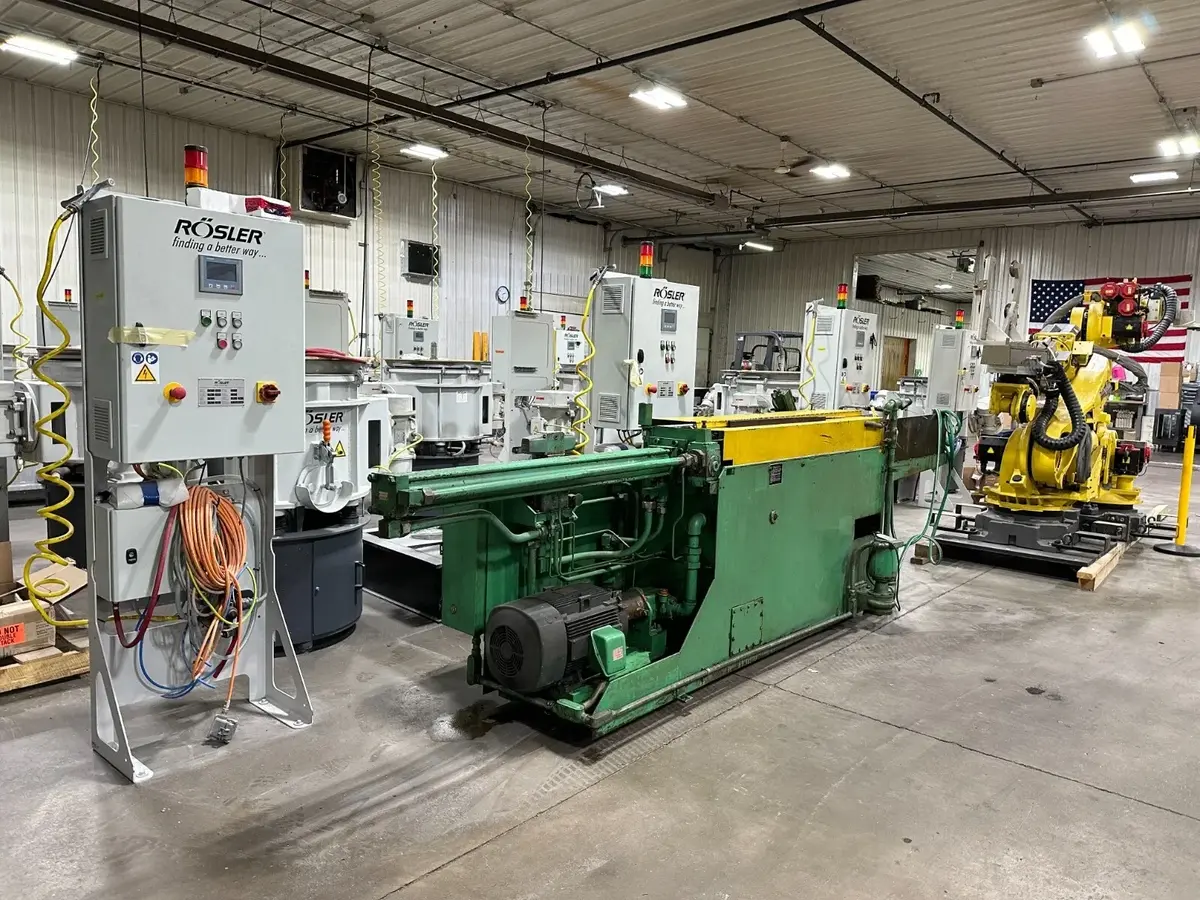

Ohio Broach H548RR Horizontal Pull Broach

Capacity..........................5 Tons
Stroke............................48"
Cylinder Bore Diameter............4"
Cylinder Rod Diameter.............2"
Broaching Speed...................40 FPM
Return Speed......................120 FPM

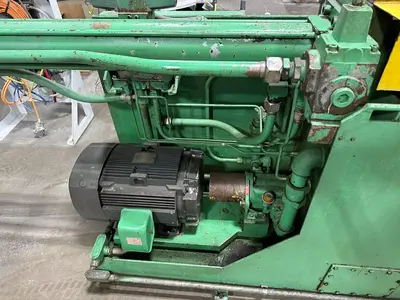

Hydraulic Pump Flow...............21 GPM
Hydraulic Tank Capacity...........70 Gallons
Coolant Tank Capacity.............30 Gallons
Electrics.........................440V/3PH/60HZ
Drilled & Tapped Mounting Plate...15" x 15"
Dimensions (L x W x H)............178" x 45" x 65"

DESCRIPTION:
Can be used to make keyways , squares, hexes etc, will accept any sized round
broach stem depending on what "guide head" you have purchased for the machine.

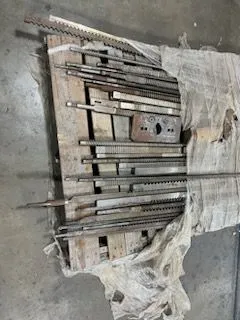

Extra broaches to be included with machine.

The machine pull heads on Ohio Horizontal Broaching Machines are equipped with
precision ground wear pads that are easily accessible for replacement when necessary.
All pull heads can easily be adjusted for vertical tool alignment with
the industry standard 2-inch, 8-pitch female thread for broach puller attachment.
The rapid return of the broach pull head to its starting position is a welcome
standard feature on all our horizontal broach machine models.

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
