Mori Seiki MV-65B/50 Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

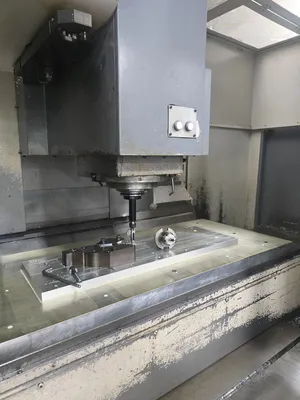

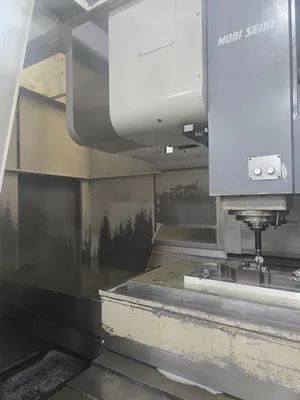

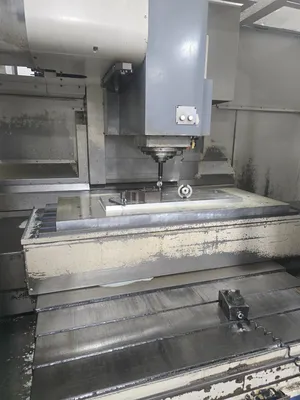

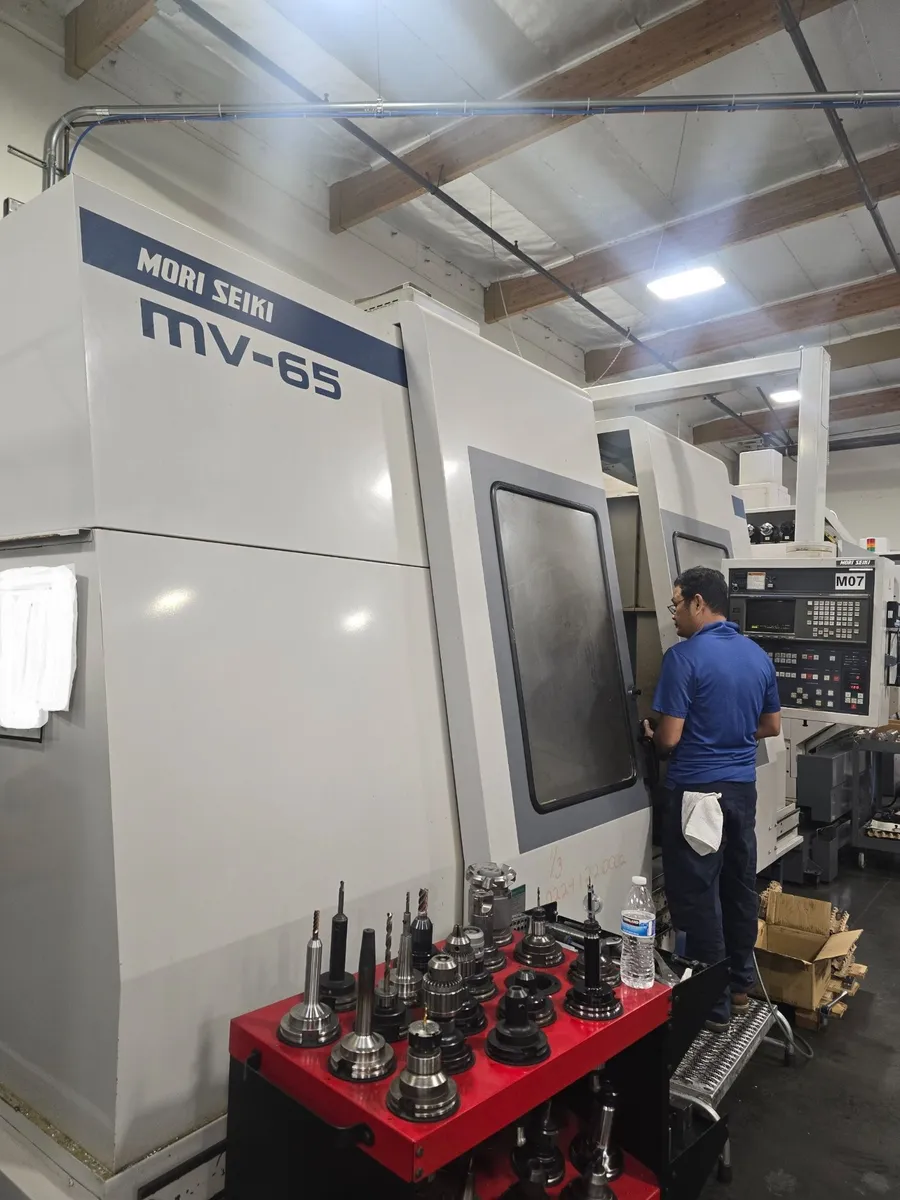

1998 Mori Seiki MV-65B/50 Vertical Machining Center with Fanuc CNC Control, 4,000 RPM, CAT-50 Spindle, and Chip Conveyor.
Working Surface.........................66.9" X 25.6"
Table Load Capacity.....................4400 LBS
X-Axis Travel...........................60"
Y-Axis Travel...........................25.6"
Z-Axis Travel...........................25"
Spindle Nose To Table Top...............7.9" - 33.5"
Main Motor..............................20 HP
Spindle Taper...........................CAT-50
Spindle Speeds..........................4000 RPM
Cutting Feed Rates......................393 IPM
Rapid Traverse Rate.....................472,472,590 IPM
Number Of Tools.........................40 ATC
Maximum Tool Weight.....................44 LBS
Maximum Tool Length.....................17.7"
Machine Weight..........................32,800 LBS

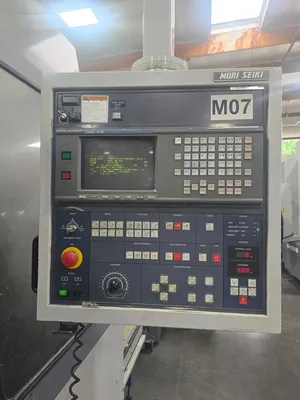

Fanuc 16 Control
4,000 RPM, CAT-50 Spindle
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
