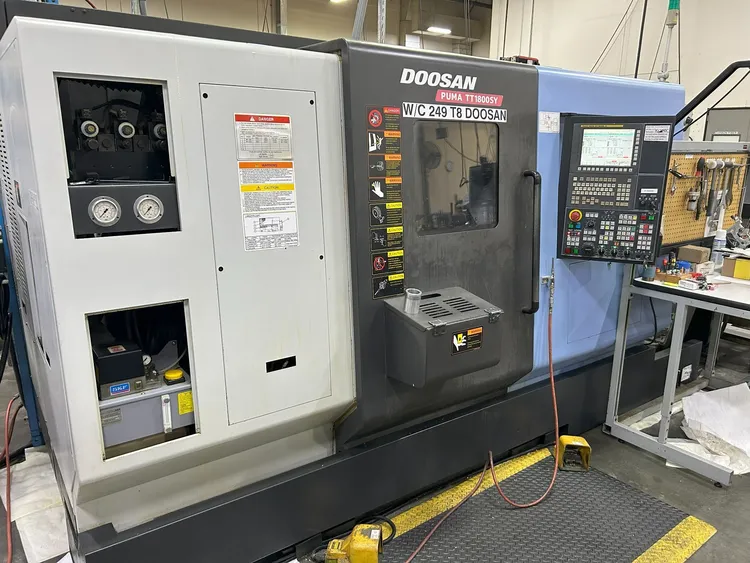

Doosan Puma TT1800SY CNC Turning Center
Have one to sell?
ConditionUsed
1 available
2013 Doosan Puma TT1800SY CNC Turning Center with Collet Chucks, Tool Presetter, Y-Axis, LNS Alpha Sl65S Barfeed, and Chip Blaster High Pressure Coolant.
Chuck Size............................6" & 8"
Swing.................................9.05"
Turning Diameter......................9.1"
Center Distance.......................30"
Bar Capacity..........................2.7"
X Axis Travel.........................6.5"
X2 Travel.............................7.5"
Z Axis Travel.........................27.6"
Z2 Travel.............................28.3"
Y-Axis Travel.........................3.9"
C1/C2 Axis Index......................0.001°
A Axis Travel.........................30.3"
Spindle Nose..........................A2-6
Spindle Speed.........................5,000 RPM
Main Motor............................30 HP
Sub Spindle Speed.....................5,000 RPM
Sub Spindle Motor.....................30 HP
Live Tooling Speed....................5,000 RPM
Live Milling Motor....................7.5 HP
Number Of Turrets.....................2
Turret Capacity.......................24 Upper | 24 Lower
Machine Dimensions....................156" x 82" x 85"
Machine Weight........................20,000 LBS
Plus Rigging & Freight

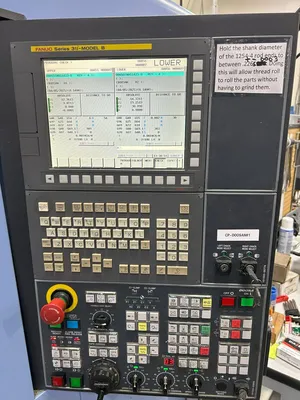

Fanuc 31i-Model B CNC Control
Tool Presetter
Sub-Spindle

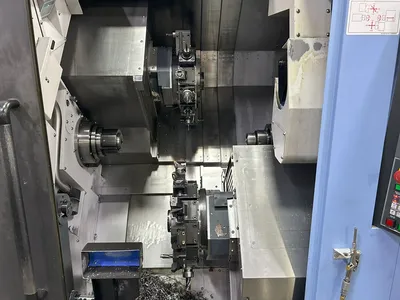

Dual Turrets
Live Tooling
Y-Axis
Ultra-Compact Quick Change Collet Chuck QG65
Parts Catcher

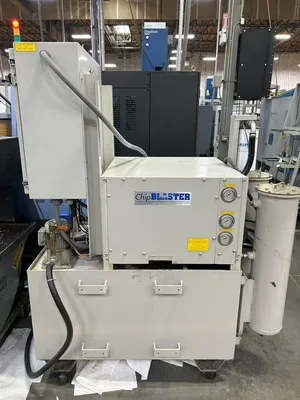

Chip Blaster High Pressure Coolant
LNS Turbo HB Side Discharge Conveyor

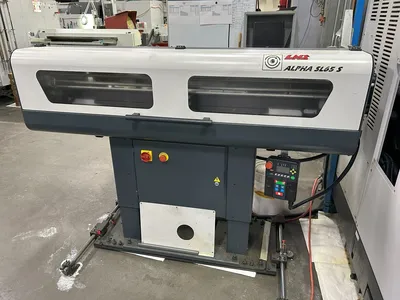

LNS Alpha SL65 S Barfeed
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
