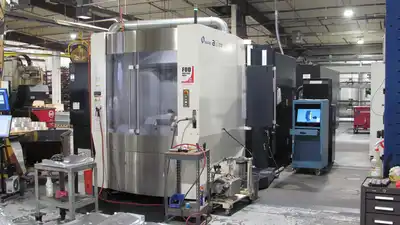

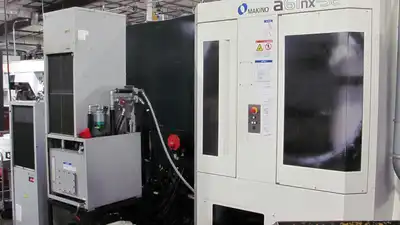

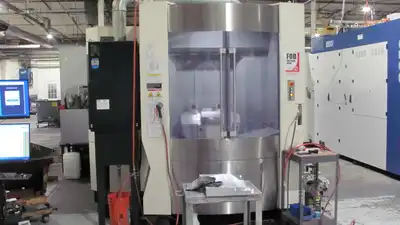

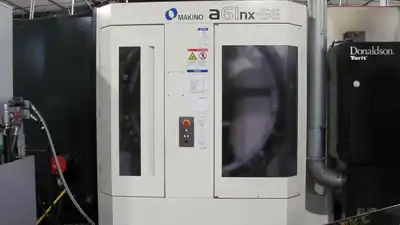

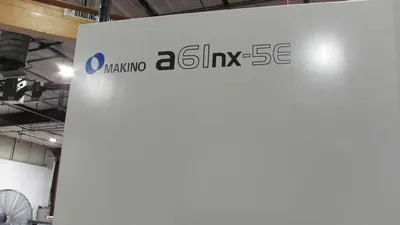

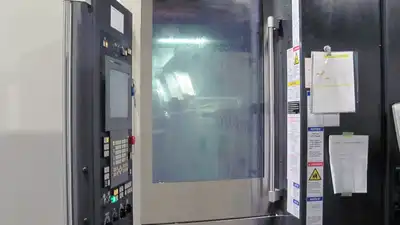

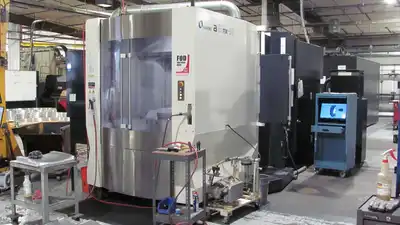

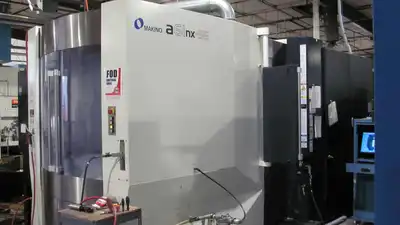

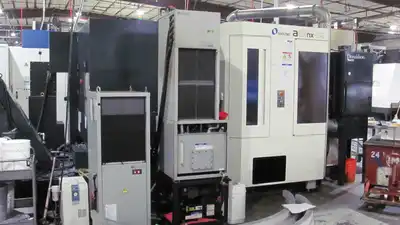

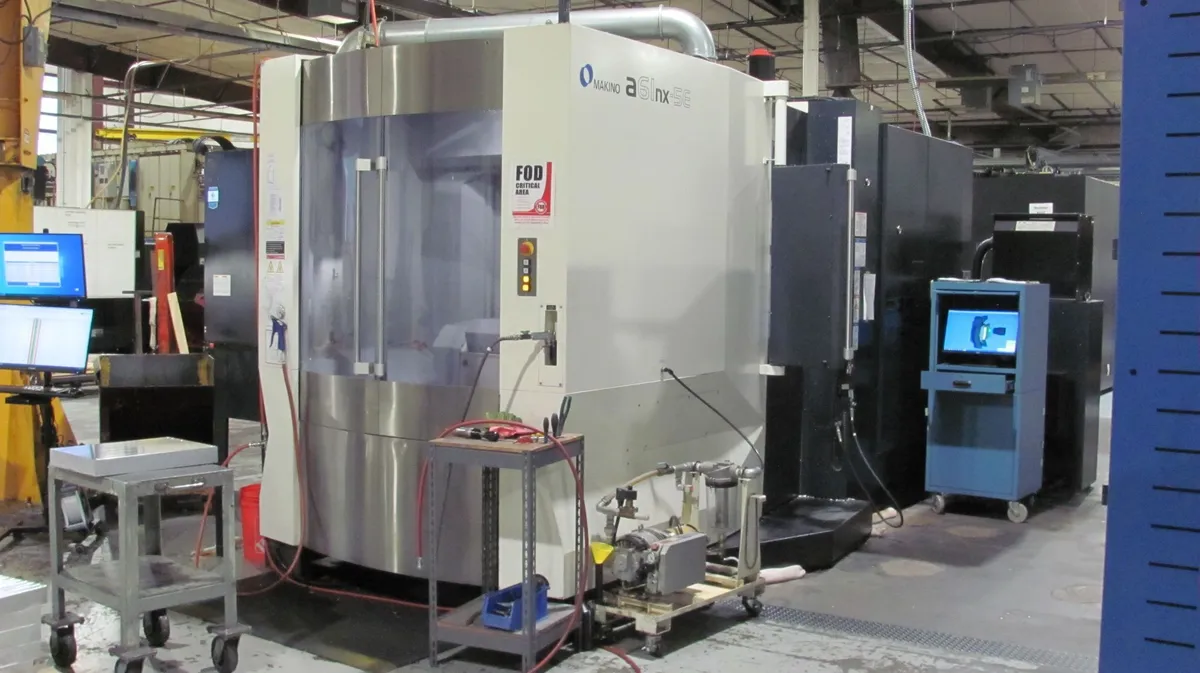

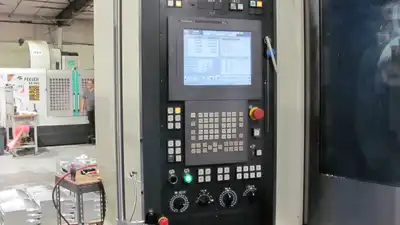

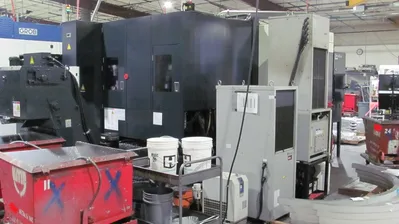

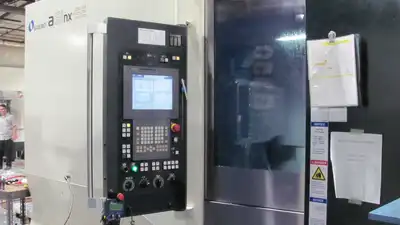

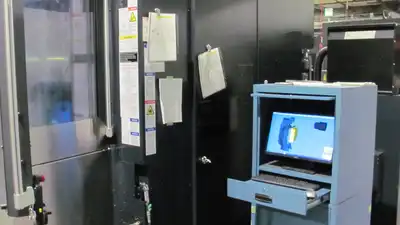

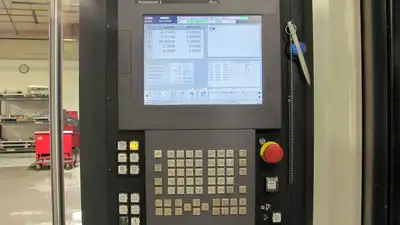

Makino a61NX-5E 5-Axis Horizontal Machining Center

Pallet Size........................................15.7" x 15.7"
Pallet Load Capacity...............................300 LBS
Spindle Nose to B axis center......................3.9"- 30.7"

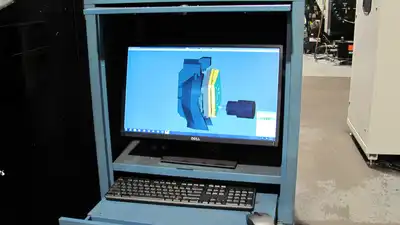

Workzone Limitation (see limitation drawing).......27.5" dia x SR15.7"
Axis Travel X, Column Longitudinal.................28.7"
Axis Travel Y, Spindle Vertical....................28.7"
Axis Travel Z, Table Cross.........................26.8"

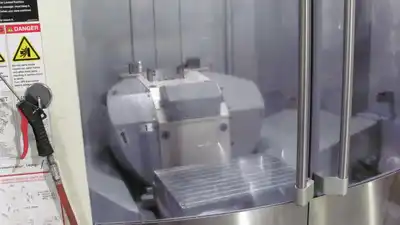

Axis Travel B, C axis casting rotation.............290° (-110° to +180°)
Axis Travel C, Pallet rotation.....................0.0001°
Spindle Motor......................................80/107 HP
Spindle Taper......................................HSK63A
Spindle Speed......................................24,000 RPM
Rapid Traverse Rates (X & Y / Z)...................1890 IPM / 1693 IPM
Max. Feedrate......................................1969 IPM
Spindle Acceleration Time (to 24,000 RPM)..........2.0 Seconds
Number of Tools....................................60 ATC
Max. Tool Diameter.................................2.76" / 6.7"
Max. Tool Length...................................20.1"
Max. Tool Weight...................................26.4 lbs
Floor Space (W x D) w/o Accessories................114.5" x 204.2"
Weight with ATC 60.................................24,250 lbs
