Haas SL-20 Chucker
Have one to sell?
ConditionUsed
1 available

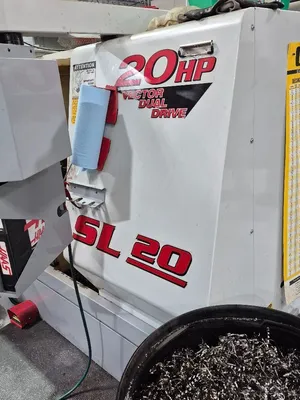

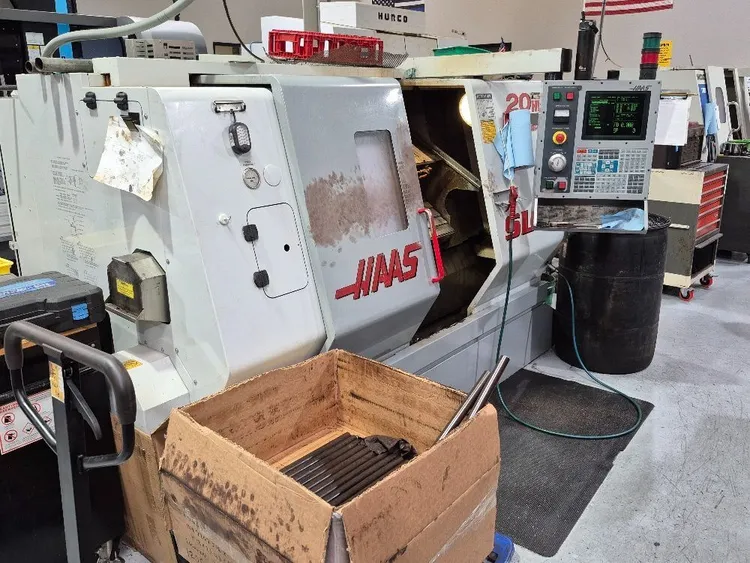

2001 Haas SL-20 Chucker with 8" Collet Chuck, 20 HP Vector Dual Drive, and Tool Setter
Swing Over Front Apron..........23"
Swing Over Cross Slide..........9.5"
Maximum Cutting Diameter........10.3"
Maximum Cutting Length..........20"
Standard Bar Capacity...........2"
X Axis Travel...................8.45"
Z Axis Travel...................20"
Rapid Traverse Speed............710 IPM
Maximum Spindle Speed...........4,000 RPM
Peak Spindle Horsepower.........20 HP
Spindle Nose....................A2-6
Approx. Shipping Dimensions.....136" L x 78" W x 78" H
Approx. Shipping Weight.........9,500 LBS
Haas CNC Control
8" Collet Chuck
Tool Setter
Chip Auger
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
