Hurco VMX42SWi 5-Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

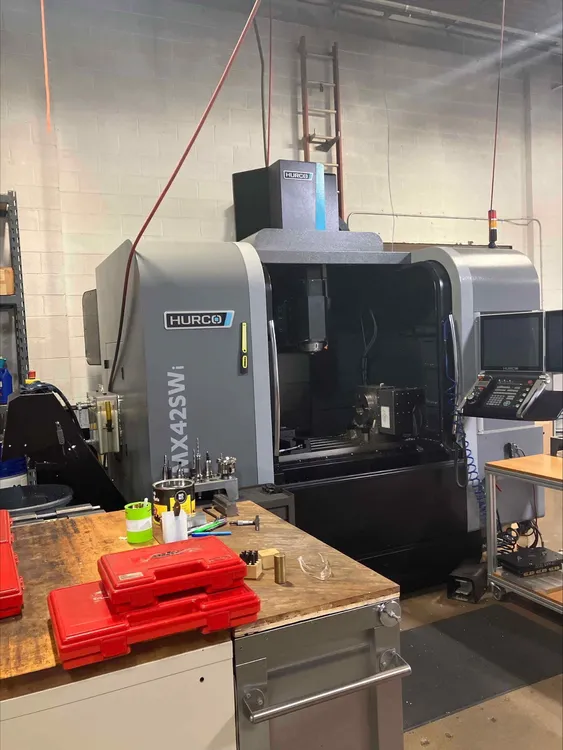

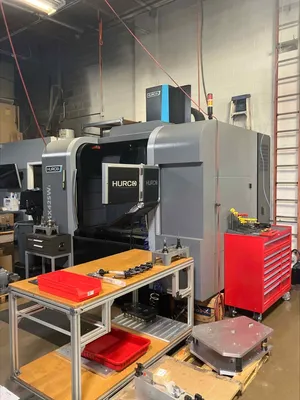

2016 Hurco VMX42SWi 5-Axis Vertical Machining Center with 12,000 RPM, CAT-40 Spindle, 40 Station ATC, Hurco H250 Rotary Table, 300 PSI Through Spindle Coolant.
Table Size............................50" x 24"
Max. Weight on Table..................3,850 LBS
Spindle Nose to Table Top.............6" - 30"
T-Slot Size...........................5 x 0.71"
X-Axis Travel.........................42.01"
Y-Axis Travel.........................24.02"
Z-Axis Travel.........................24.02"
B-Axis Travel.........................+/- 92 Degrees
Spindle Motor.........................48 HP
Spindle Taper.........................CAT-40
Spindle Speed.........................12,000 RPM
Spindle Torque........................88.7 ft. lbs @ 2,900 rpm (120.2 Nm @ 2,900 rpm)
Rapid Traverse........................1496/1260 IPM
Rapid Traverse B-Axis.................50 RPM
Cutting Feed Rate.....................1260 IPM
Tool Magazine Capacity................40
Max Tool Diameter.....................3"
Max Tool Length.......................9.8"
Max Tool Weight.......................15.4 LBS
Machine Weight........................15,686 LBS
WinMax Classic Conversational and NC
NC/Conversational Merge
Tool Material Library
Hurco H250 Rotary Table
Full Washdown System
Rigid Tap Software
Hurco HTSA250 Tail Support
300 PSI Coolant Thru Spindle
Chip Conveyor
**MACHINE PURCHASED NEW AS DEMO IN 2018**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
