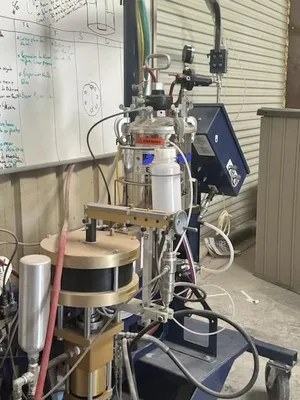

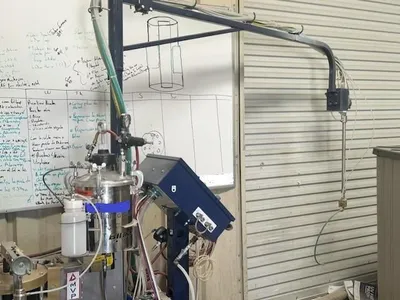

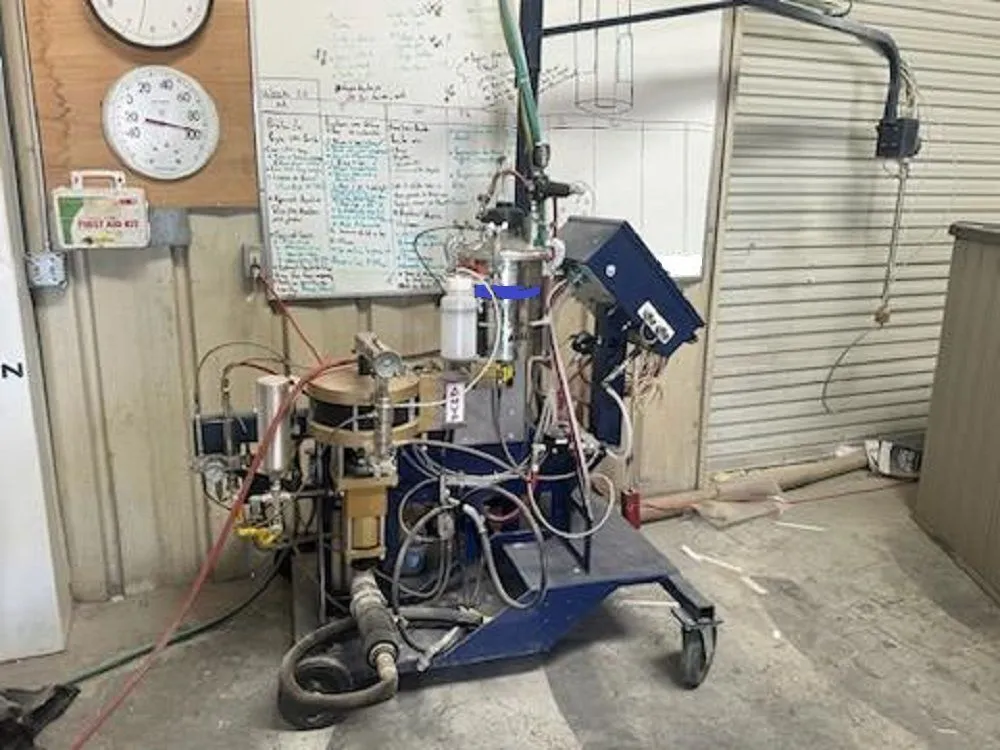

Innovator Patriot High Volume Injection Molding Machine

DESCRIPTION:
The Patriot Innovator Injection Systems were designed for injecting
polyester, vinylester and methacrylate resins and catalyst at controlled pressures.
The material mixing is done on demand at the injection head, and the catalyst ratio

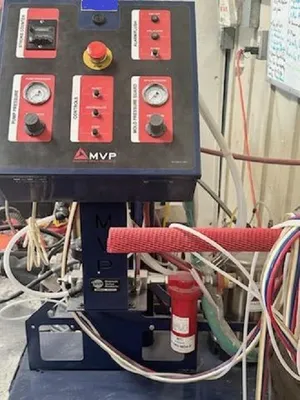

can be adjusted from 0.75% to 2.5%. The system features a unique control panel
for easy operation. The fully pneumatic automated controls, controlling the number of
strokes during injections, recirculation, and more makes the process easier and more efficient.

SPECIFICATIONS:
Output Capabilities.........7lb-30lbs/min (1.5kg-6.7kg/min)
Catalyst Percentage.........0.8%-3.8% with PAT-CP 300
Air Consumption.............43 CFM
Max. Air Input Pressure.....100 psi (7 bar)
