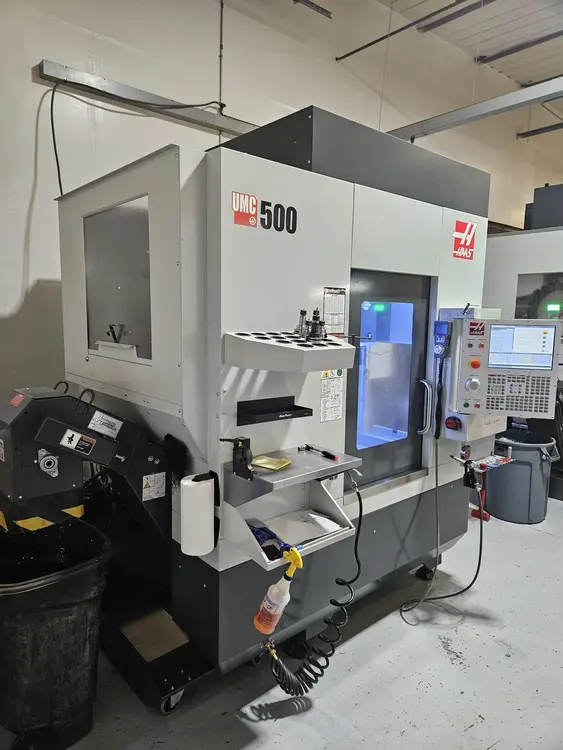

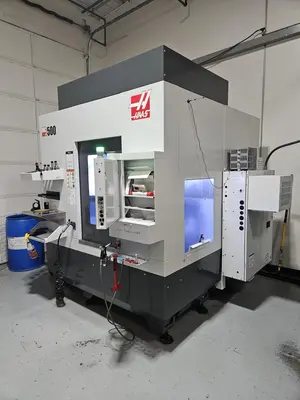

Haas UMC-500 5-Axis Machining Center
Have one to sell?
ConditionUsed
1 available

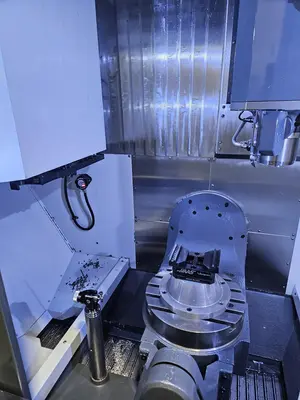

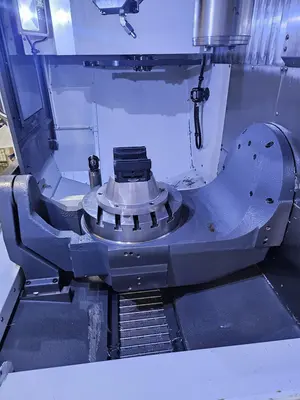

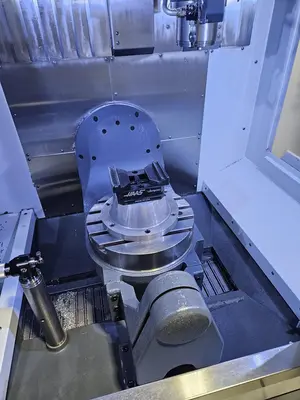

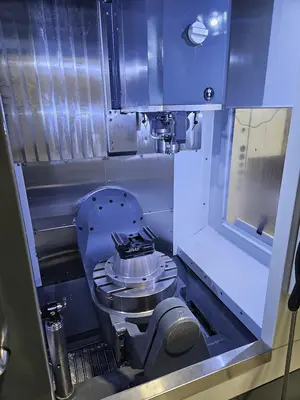

2020 Haas UMC-500 5-Axis Machining Center with Nextgen Control, 15,000 RPM Spindle, Through Spindle Coolant, Through Tool Air Blast, Programmable Coolant, High Speed Machining, and Chip Conveyor. Machine has Only 2,751 Cutting Hours.
Table Diameter.....................15.7"
Table Capacity.....................500 Lbs
Spindle Nose to Platter............4" - 20"
X-Axis Travel......................24"
Y-Axis Travel......................16"
Z-Axis Travel......................16"
B-Axis Tilt/Travel.................120-35 Degrees
C-Axis Rotation....................360 Degrees
Spindle Motor......................30 HP
Spindle Taper......................CAT-40
Spindle Speeds.....................15,000 RPM
Max Torque.........................90.0 ft-lbf @ 2000 rpm
Max Cutting Speed..................650 IPM
Rapid Traverse Rates (X,Y,Z).......900 IPM
Number of Tools....................30 ATC
Max Tool Diameter (full)...........2.5"
Max Tool Dia. (Adjacent Empty).....5"
Max Tool Length (from Gage Line)...12"
Max Tool Weight....................12 Lbs
Tool-to-Tool (avg).................2.80 Seconds
Chip-to-Chip (avg).................3.60 Seconds
Weight.............................11,900 Lbs

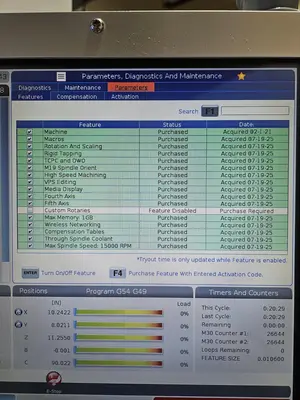

Haas NextGen Control
15,000 RPM Spindle Option
Through Spindle Coolant
Thru Tool Air Blast
Programmable Coolant Nozzle
High Speed Machining
Chip Conveyor

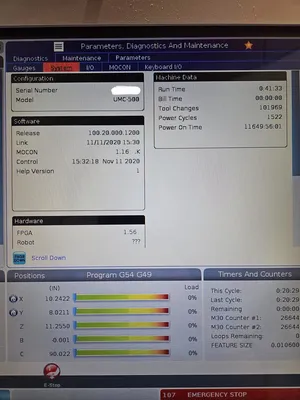

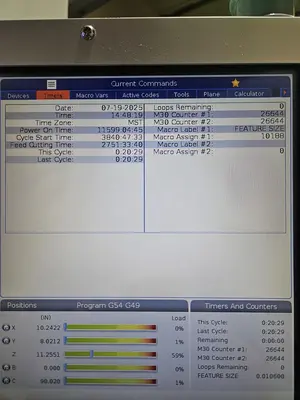

HOURS:
Power on Time...........11,599
Cycle Start Rime........3,840
Feed Cutting Time.......2,751
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
