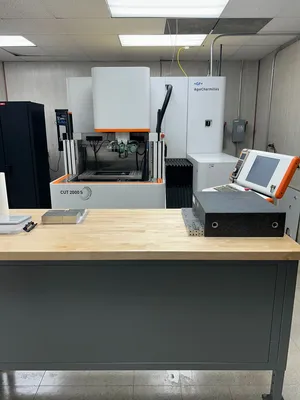

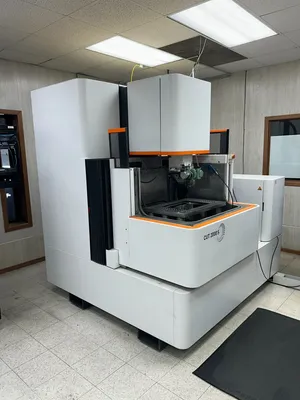

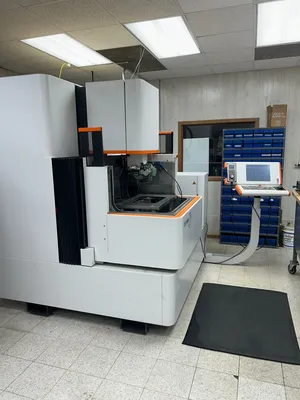

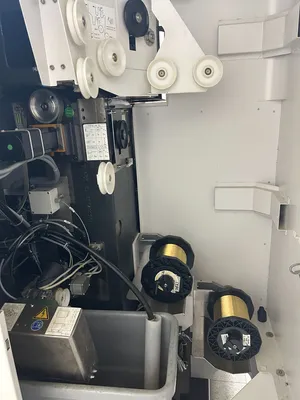

Agie Charmilles Cut 2000 S Dual Spool Wire EDM

Wire guides, standard equipment.................................0.004" – 0.012"
Wire guides (Option)............................................0.002" – 0.003"
X, Y, Z axes....................................................13.77" x 9.84" x 10"
U, V axes.......................................................±2.7"
Max. taper angle °/mm (°/in)....................................30/100 (30/3.93)
Max. workpiece dimensions.......................................29.5" x 21.6" x 9.8"
Max. workpiece weight with bath/without bath....................440/992.08 LBS
Max. cutting rate with CCS Ø 0.30 mm wire mm2/min.(in2/h).......300 (28)
Surface finish µm Ra (µin)......................................0.08 (3)
Threadable height...............................................9.84"
Threading nozzle................................................0.078" (0.023" option)
Combination wire guide system “V” guide Toroid guide............Cylindrical –2° 2°–30°
Wire drive, wire spool kg (lbs).................................55.11 LBS
Universal clamping frame........................................27.56" x 17.72"
Machining in bath, level regulation automatic...................0 – 9.84"
Machine Dimensions..............................................83" x 77" x 89"
Machine Weight Net..............................................6,200 LBS
Weight Ready To Run.............................................9,920 LBS
