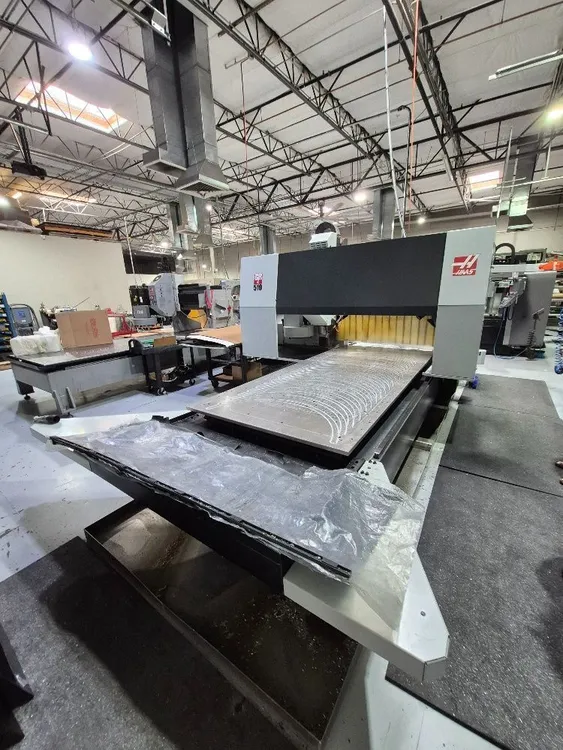

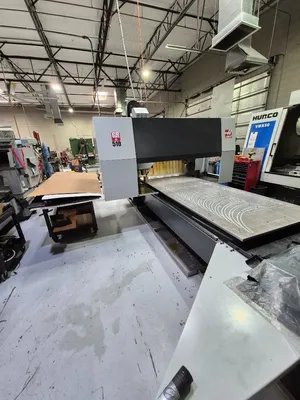

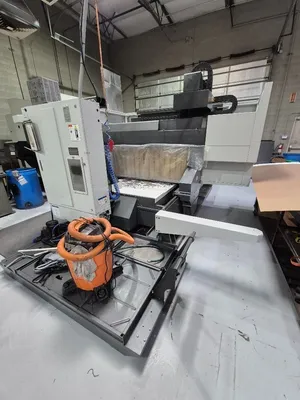

Haas GR-510 Gantry Style Vertical Machining Center

Table Size.....................122" x 53"
Between Columns................62"
Max Table Weight...............6,000 LBS
Spindle Nose to Table..........2.5" - 13.5"
X-Axis Travel..................121"
Y-Axis Travel..................61"
Z-Axis Travel..................11"
Spindle Motor..................15 HP
Spindle Taper..................CAT-40
Spindle Speed..................8,100 RPM
Max Torque.....................48.0 ft-lbf @ 1500 rpm
Rapid Traverse Rate (X,Y,Z)....800, 2100, 1100 IPM
Max Cutting Rate...............800 IPM

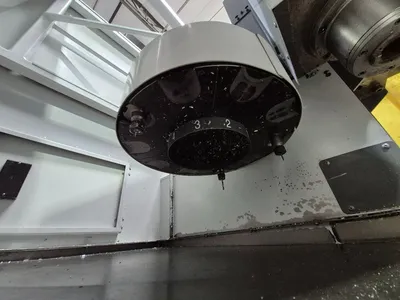

Number of Tools................10 Station ATC
Max Tool Diameter..............3.5"
Max Tool Weight................12 LBS
Electrics......................220V/3PH/60HZ
Machine Weight.................20,000 LBS
