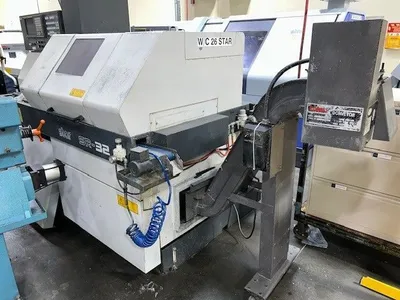

Star SR-32 Swiss CNC Lathe

Number of Axes..........................7
Axis Designation........................X, Y, Z, ZB, XB, C1, C2
Max Turning Diameter....................1.25"
Z-Axis (Headstock Travel)...............12-13/64"
C1-Axis (Min Indexable).................0.01°
C2-Axis (Min Indexable).................1°
Main Spindle Center Height..............42.13"
Max Main Spindle Speed..................7,000 RPM
Rapid Traverse Rate (X, Y, Z, ZB, XB)...945 IPM
Main Spindle Stroke (one chucking)......1-1/41"
Max Sub-Spindle Speed...................7,000 RPM
Max Drilling Diameter (Front Tool)......5/16"
Max Tapping Diameter (Front Tool).......M6xP1.0
Max Milling Diameter (Cross Tool).......25/64"
Max Slotting (Cross Tool)...............0.08" W x 0.14" D
Toolpost Type...........................Slant
# Tools: OD.............................6
# Tools: Front Working ID...............4
# Tools: Back Working...................4
# Tools: Cross Driven...................3
Main Spindle Motor......................7.4 HP
Sub-Spindle Motor (Cont./15 Mins.)......2.95 / 4.96 HP
Coolant Pump Motor......................0.33 HP
Electrics...............................200/3/60
Approximate Machine Dimensions..........106" x 51"
Approximate Machine Height..............69"
Approximate Machine Weight..............8,300 LBS
