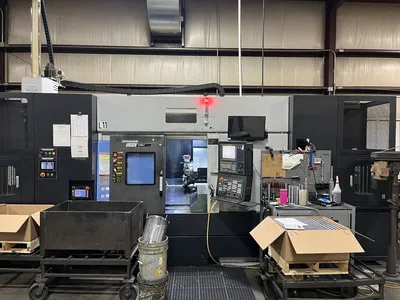

Doosan Lynx 2100LYB Gantry Loaded CNC Lathe with Live Milling & Y-Axis

Swing Over Bed............. 23.6"
Turning Diameter........... 11.8"
Machining Length........... 20.1"
Distance Between Centers... 24"
X-Travel................... 8.1"
Z-Travel................... 22"
Y-Travel................... 4.1"
Chuck Size................. 8"
Spindle Nose............... A2-6
Power...................... 20 HP
Spindle Bore............... 3"
Bar Capacity............... 2.64"
Spindle Speed.............. 4,500 RPM
Rapid Traverse Rates....... 1181, 393, 1181 IPM
Number of Tools............ 12/24
Rotary Tool Speed.......... 6,000 RPM
Turret Rotary Motor........ 5.0 HP
Tailstock Quill Diameter... 2.6"
Tailstock Taper............ MT-4
Tailstock Quill Travel..... 3.1"
Tailstock Travel........... 22"
Machine Dimensions......... 114" x 76" x 68" (Without Gantry)
Weight..................... 9,000 LBS (Without Gantry)
