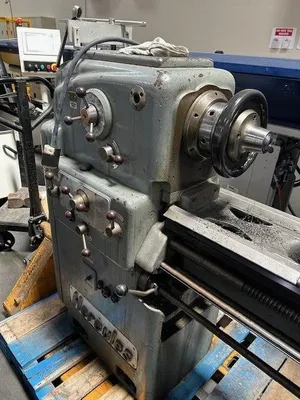

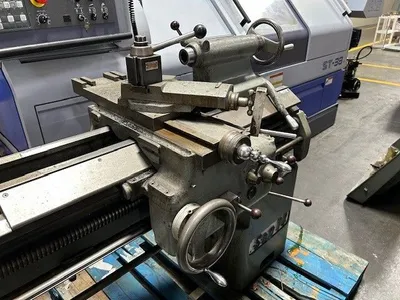

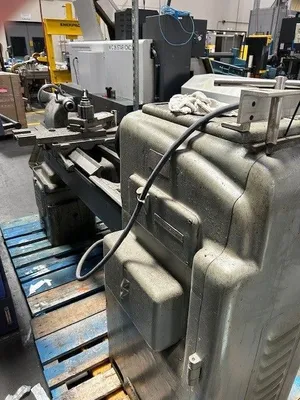

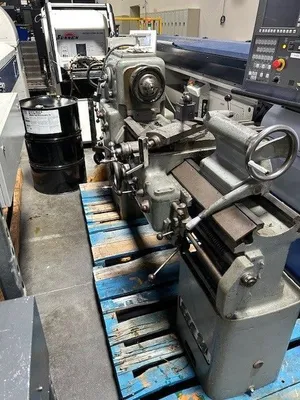

Hercules (Graziano) SAG-14 Engine Lathe

Swing Over Bed.....................14.5"
Swing In Gap.......................20"
Swing Over Cross Slide.............9"
Distance Between Centers...........40"
Spindle Speeds (12)................40- 1,500 RPM
Spindle Nose.......................D1-6
Hole Through Spindle...............2"
Cross Slide Travel.................8"
Feeds..............................0.0011 - 0.0176 IPR
Inch Threads.......................3- 46 TPI
Metric Threads.....................0.375- 5.75 MM
Tailstock Quill Taper..............MT-4
Tailstock Quill Travel.............6"
Motor..............................5.5 HP
Overall Equipment Dimensions.......108" x 36" x 57"
Overall Equipment Weight...........3,200 lbs.
