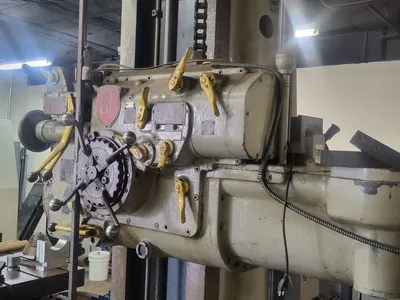

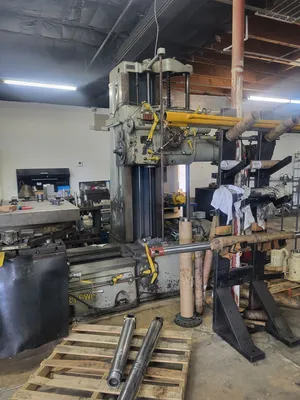

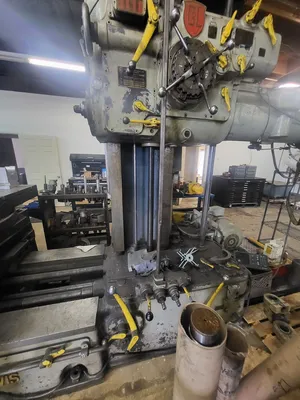

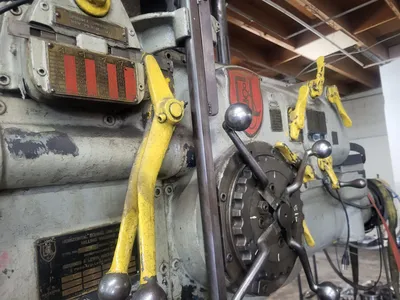

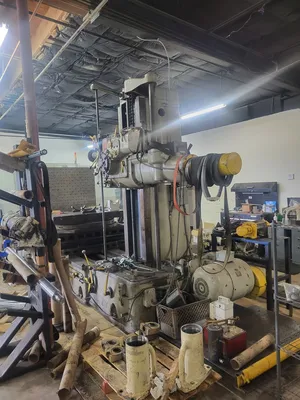

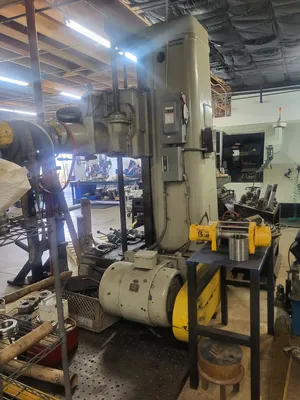

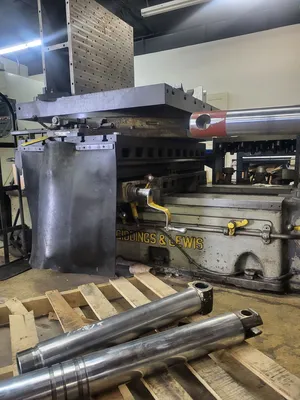

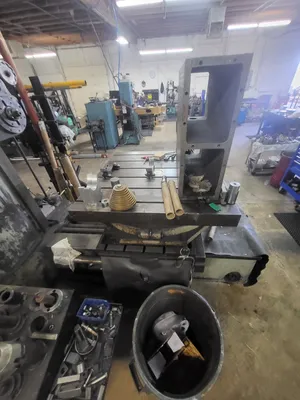

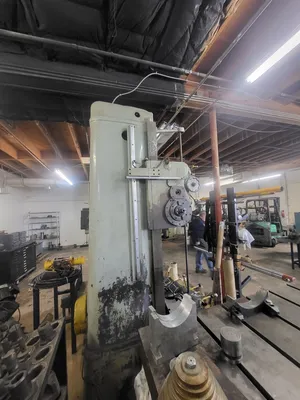

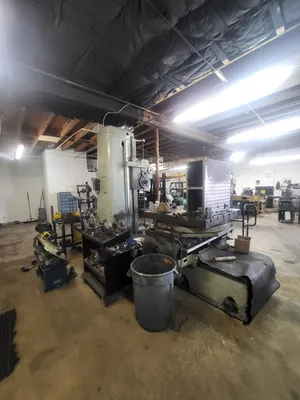

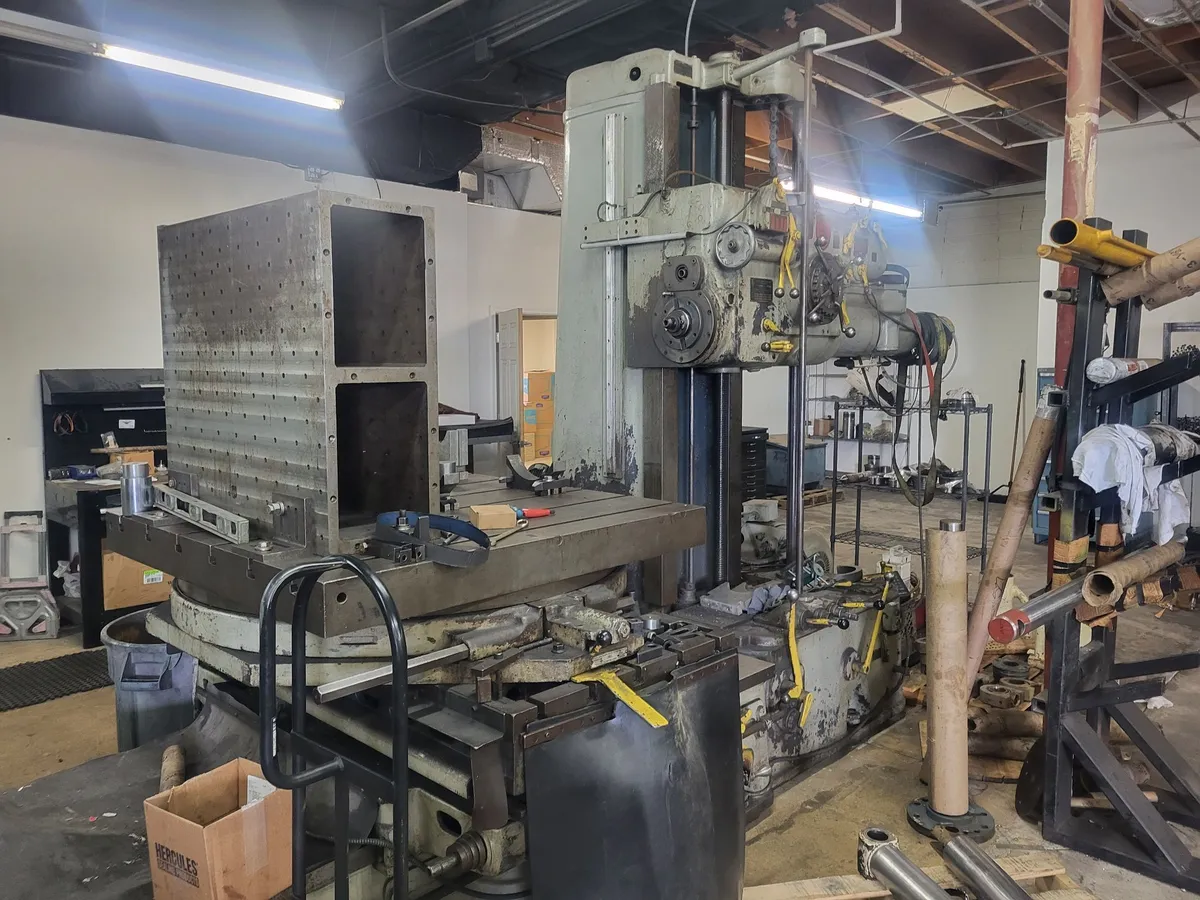

Giddings & Lewis 340T 4" Horizontal Boring Mill

Diameter of Spindle.....................4"
Spindle Taper...........................5 Morse Taper
Spindle Travel..........................30" Main Spindle
Spindle Travel..........................9" Auxiliary Spindle
Spindle Speeds..........................36 changes 7.5 RPM 1,300 RPM
Feeds...................................18 changes from .010 to .125
Auxiliary Spindle Diameter..............2" 4 Morse Taper
Auxiliary Spindle Speeds................36 changes from 25-1500 RPM
Auxiliary Feeds.........................18.002.125
Table, Saddle & Head Feeds..............18 changes .05 to .250 IPR
Working Table Surface...................36" x 62"
Table Cross Travel......................52"
Vertical Travel.........................54"
Saddle Travel...........................53"
Main Motor..............................20 HP
Electricals.............................220/440 Volt
Approx. Dimensions......................185" L x 86" W x 114"
Approx. Weight..........................24,000 LBS
