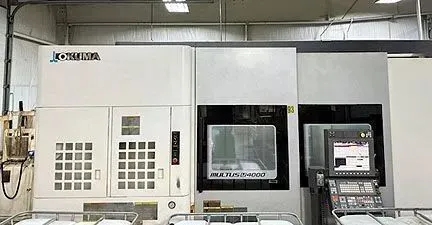

Okuma Multus U4000 2SW/1500 Multi Axis Mill/Turn
Have one to sell?
ConditionUsed
1 available
2015 Okuma Multus U4000 2SW/1500 Multi Axis Mill/Turn with OSP-P300S-H Control, C-Axis Both Spindles, Big Bore, 80 ATC, Auto Door with Dual Start, Y-Axis, Chip Blaster High Pressure Coolant, and More.
Maximum Turning Diameter................25.59"
Maximum Distance Between Centers........78.74"
Main Spindle Speed Range................4,200 RPM
Milling Speeds..........................12,000 RPM
Spindle Nose & Sub Spindle..............JIS A2-8
X-Axis (Upper)..........................27.36"
X-Axis (Lower)..........................9.25"
Y-Axis Travel...........................+/- 11.8"
Z-Axis (Upper)..........................62.99"
Z-Axis (Lower)..........................60"
W-Axis (Sub Spindle)....................60"
C-Axis Indexing.........................0.001 Degree
B-Axis Indexing.........................240 Degree
Bar Capacity............................5.5"
Main Motor..............................30 HP/ 20HP
Approximate Dimensions..................252" x 117" x 119"
Approximate Weight......................40,700 Lbs
OSP-P300S-H CNC Control
Dual Spindles (Main & Sub)
C-Axis on Both Spindles
Big Bore
80 Station Tool Changer
Auto Door with Dual Start
Touchsetter A for 2S
4' Bar Support System
Y-Axis
Chip Blaster High Pressure Coolant
Collision Avoidance Software
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
