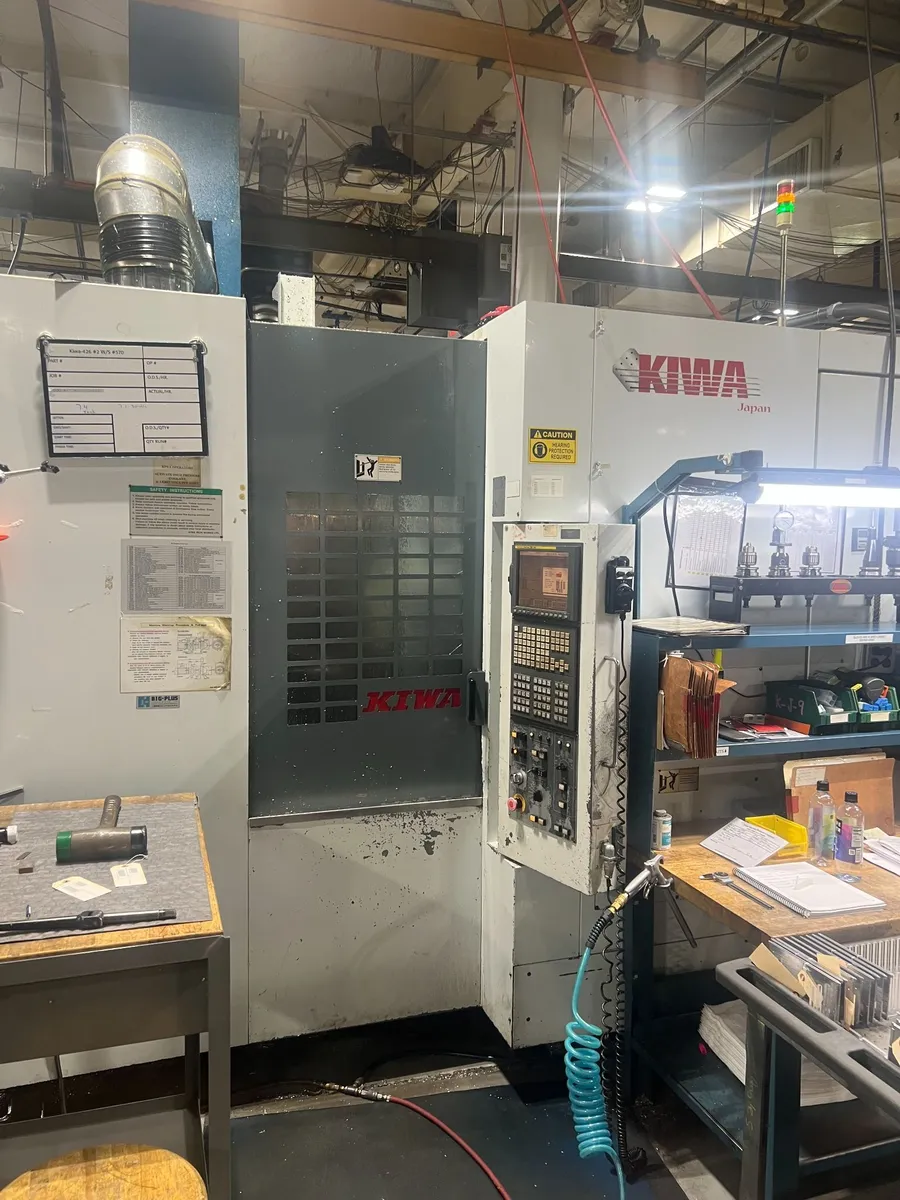

Kiwa KNH-426X 6-Pallet Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
2004 Kiwa KNH-426X 6-Pallet Horizontal Machining Center with Fanuc Control, Full 4th Axis, 120 ATC, Renishaw Probe, 12,000 RPM, CAT-40, Big Plus Spindle. Machine Under Power with Rebuilt Spare Spindles.
PALLET SIZE .......................... 15.7" X 15.7" (400mm)
NUMBER OF PALLET STATIONS ............ 6
SPINDLE TO PALLET TOP ................ 3.1" - 27.1"
SPINDLE NOSE TO PALLET CENTER ........ 5.9" - 32.1"
MAXIMUM WORKPIECE WEIGHT ............. 881 LBS.
MAXIMUM WORPIECE SIZE ................ 24" x 27.6"
PALLET INDEXING ...................... 0.001 DEGREE
X-AXIS TRAVEL ........................ 23.6" (600mm)
Y-AXIS TRAVEL ........................ 24" (610mm)
Z-AXIS TRAVEL ........................ 26.2" (665mm)
SPINDLE DRIVE ........................ 35 HP
SPINDLE TAPER ........................ CAT-40 BIG PLUS
SPINDLE SPEEDS ....................... 12,000 RPM
RAPID TRAVERSE RATE (X/Y/Z) .......... 2,362 IPM
TOOLCHANGER CAPACITY ................. 120 STATIONS
APPROXIMATE MACHINE DIMENSIONS ....... 125" x 216" x 110.4"H
APPROXIMATE MACHINE WEIGHT ........... 31,000 LBS

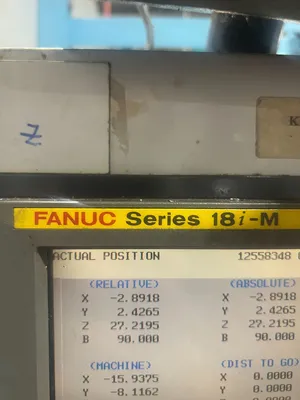

Fanuc CNC Control
6-Station Pallet Changer

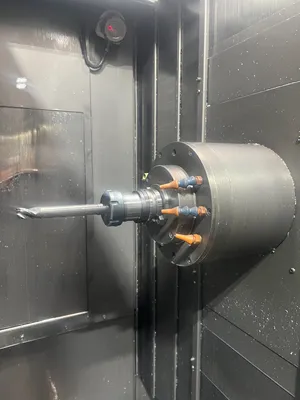

12,000 RPM, CAT-40, Big Plus Spindle
Full 4th Axis
1,000 PSI Through Spindle Coolant
120 Station ATC
Renishaw Optical Spindle Probe

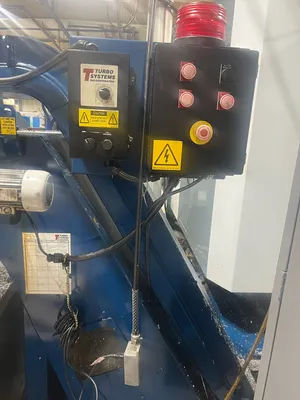

Chip Conveyor
HOURS:
#1 Operating Time.............62,305
#1 Cutting Time...............36,616
#2 Operating Time.............54,381
#2 Cutting Time...............39,172
**TWO MACHINES AVAILABLE, BOTH HAVE SPARE REBUILT SPINDLE TO BE INCLUDED WITH MACHINE**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
