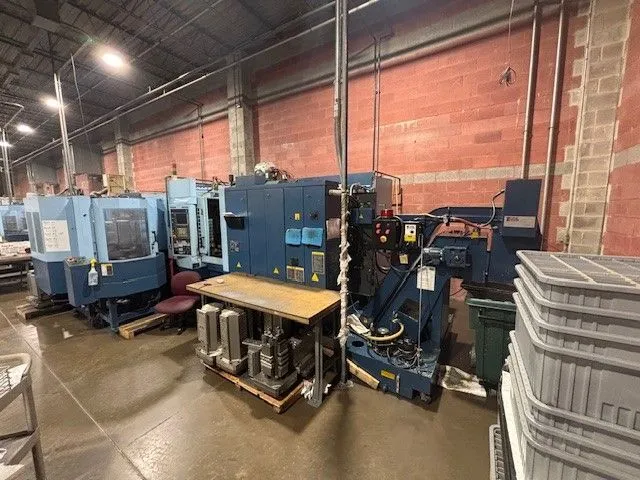

2005 Matsuura H-Plus 300 PC11 Horizontal Machining Center with G-Tech 30i Control, Full 4th Axis, 20,000 RPM, BT-40 Spindle, 320 ATC, Laser Tool Breakage Detection, Losma Mist Collector, and Microfine Conveyor
Number of Pallets...................11
Pallet Size.........................11.81" x 11.81"
Max Pallet Load.....................551 LBS
Pallet Surface to Spindle Center....4.72" - 24.41"
Pallet Center To Spindle Gage Line..3.15" - 22.83"
Workpiece Dimensions................20.86" X 29.92"
B-Axis Indexing.....................0.001 Degree
X-Axis Travel.......................19.68"
Y-Axis Travel.......................22.04"
Z-Axis Travel.......................19.68"
Main Motor..........................20 HP
Spindle Taper.......................BT-40
Spindle Speed.......................20,000 RPM
Rapid Traverse Rates (X, Y, Z)......2362 IPM
Automatic Tool Changer..............320 ATC
Tool Diameter.......................5.9"
Tool Length.........................11.8"
Tool Weight.........................17.6 LBS
Tool Change Time....................2.4 Seconds
Plus Rigging & Freight
Fanuc Matsuura Gtech 30i CNC Control
20,000 RPM, BT-40 Spindle
Full 4th Axis
320 ATC
Laser Tool Breakage Detection
Losma Mist Collector
Microfine Conveyor
HOURS:
Power on Time......124,704
Run Time...........49,183
Cutting Time.......43,583
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
