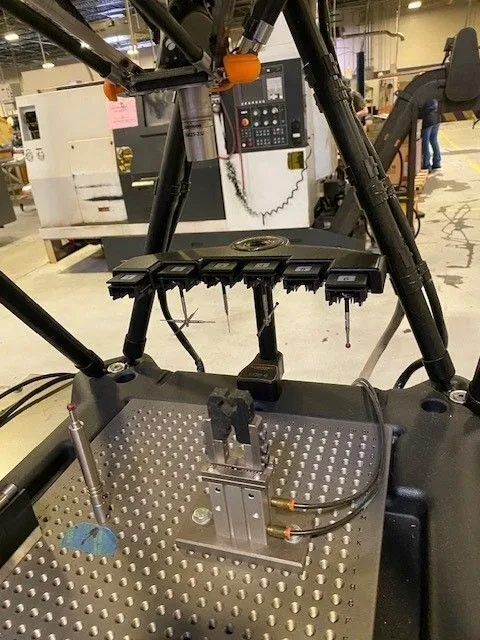

Renishaw Equator 300 Coordinate Measuring Machine

X & Y-Axes.......................11.811"
Z-Axis...........................5.906"
WV Height From Base..............8.07"
Max. Workpiece Weight............55.12 LBS
Comparison Uncertainty...........+/- 0.002 mm
Scanning:
– Speed (SP25) – Maximum.........7.87 Inch/Sec
– Rate (SP25)....................1000 Points/sec
Recommended Touch Speed (TP20)...0.39 Inch/Sec
Max. Movement Speed..............19.685 Inch/Sec
Scale Resolution.................0.0002 mm
Fixturing Requirement............+/-0.04"
Temperature:
– Operating......................41 Deg F to 122 Deg F
– Storage........................-13 Deg F to 158 Deg F
Humidity Operating Range.........Max 80% RH at 104 Deg F, Non Condensing
Power Consumption:
– Maximum........................190 W
– Typical........................80-100 W
Electrics........................100-240V AC +-10%/ 50-60 Hz
Fixture Plate....................12.008" x 12.008" aluminum
Machine Weight...................60 LBS
Dimensions.......................23" x 20" x 34"
