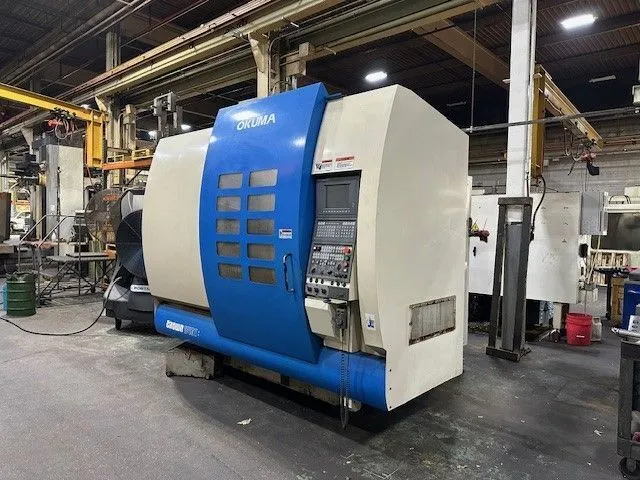

Okuma Crown-V Vertical Machining Center

Table Working Surface...........................48" x 20.08"
Table Load Capacity.............................1,500 LBS
X-Axis (Longitudinal Travel)....................40"
Y-Axis (Cross Travel)...........................18.11"
Z-Axis (Vertical Travel)........................17.72"
Clearance Spindle Face to Table Surface.........6.3" - 24.02"
Distance Floor to Table Top.....................29.5"
X-Axis Rapid Traverse Rate......................1417 IPM
Y-Axis Rapid Traverse Rate......................1417 IPM
Z-Axis Rapid Traverse Rate......................1181 IPM
Spindle Horsepower..............................10 HP
Spindle Speed Range.............................12,000 RPM
Spindle Taper...................................CAT-40
Automatic Tool Changer Capacity (ATC)...........20
Approximate Machine Dimensions..................114" x 114"
Approximate Machine Height......................105"
Approximate Machine Weight......................13,200 LBS
