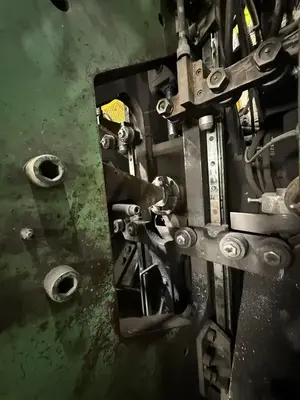

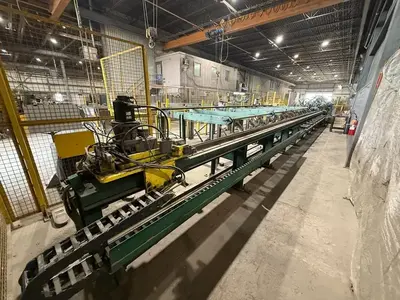

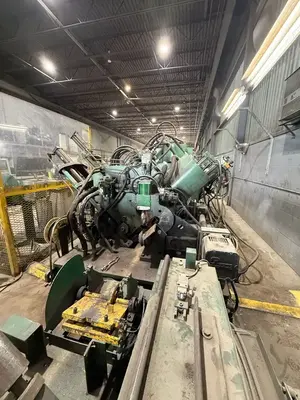

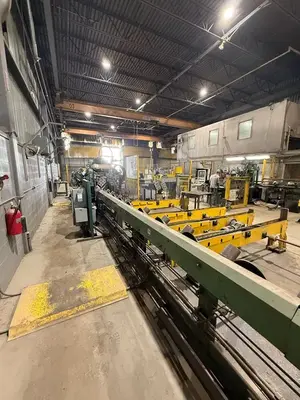

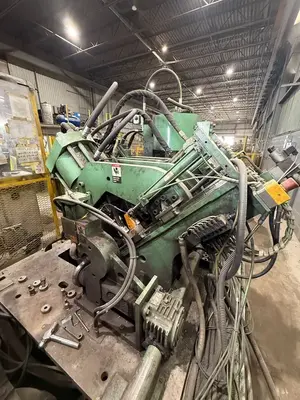

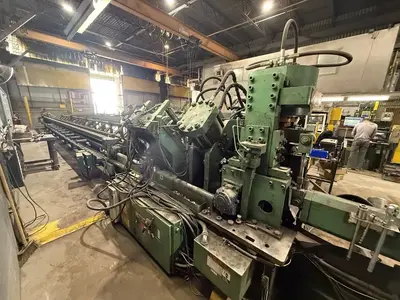

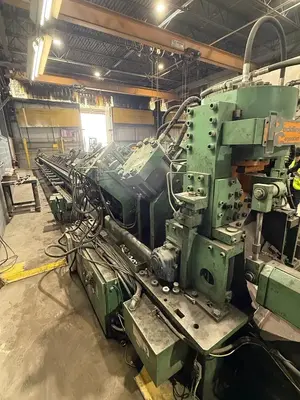

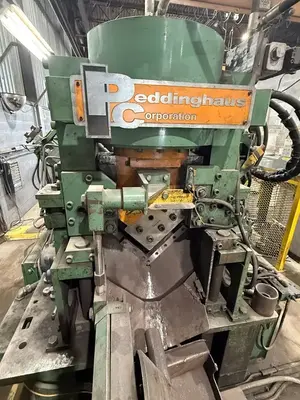

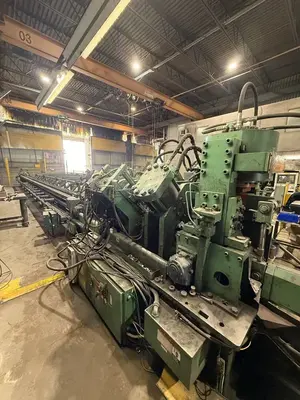

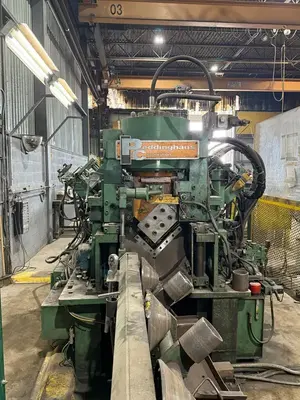

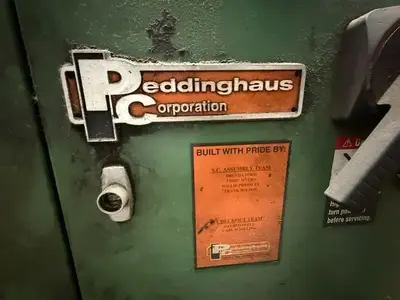

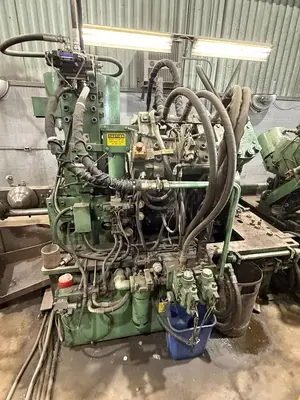

Peddinghaus AFCPS 823-B 8" x 8" x 3/4" Anglemaster Angle Punch & Shear Line

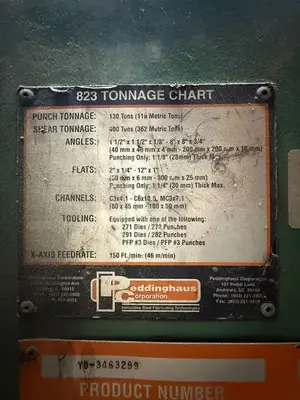

PUNCH TONNAGE CAPACITY.................130 TONS
SHEAR TONNAGE CAPACITY.................400 TONS
ANGLE..................................1-1/2" x 1-1/2" x 1/8" - 8" x 8" x 3/4"
FLATS..................................2" x 1/4" - 12" x 1"
CHANNELS...............................C3X4.1 -C6X10.5, MC3X7.1
MAX. HOLE SIZE.........................1-1/2"
MAX MATERIAL THICKNESS.................1"
MATERIAL FEED RATE.....................150FT./MIN
MAX MATERIAL THICKNESS.................1"
# OF PUNCHES...........................272
MOTOR..................................25HP

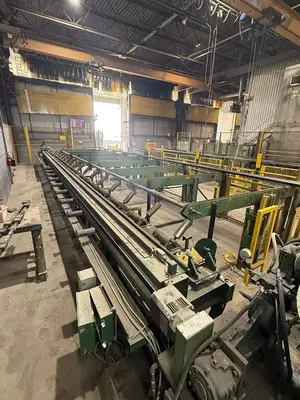

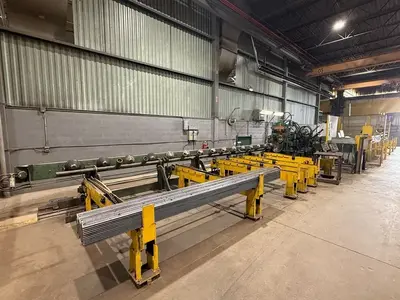

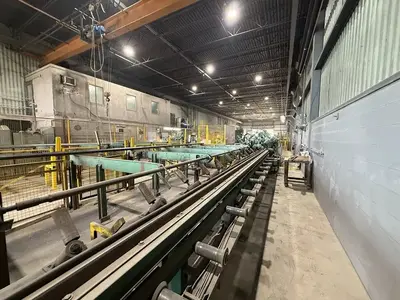

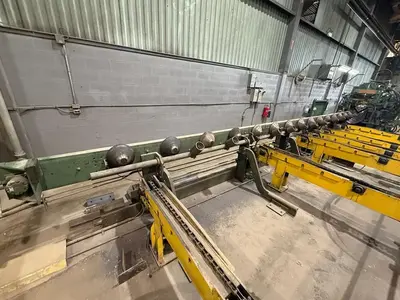

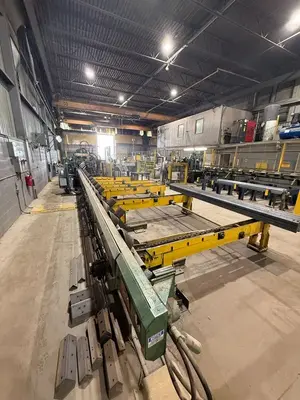

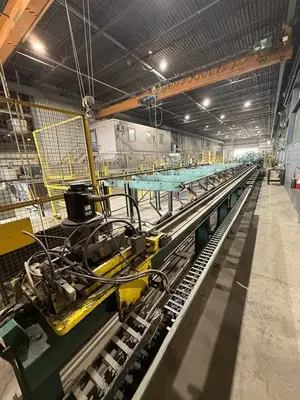

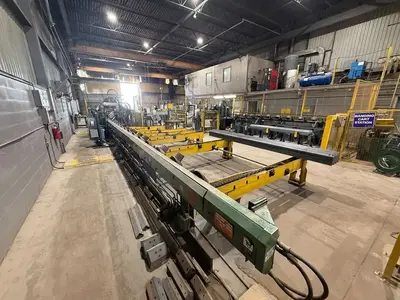

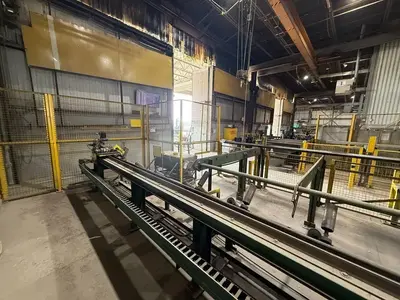

INFEED CONVEYOR........................40'

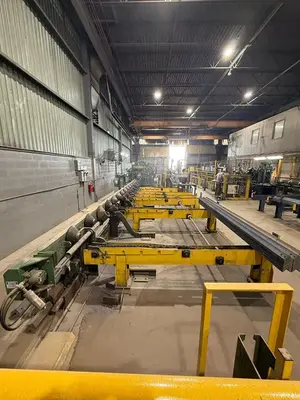

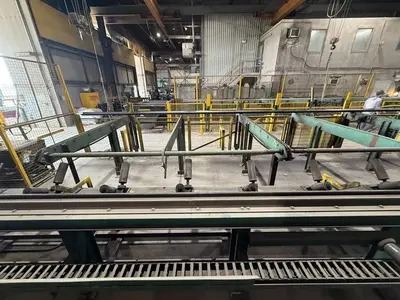

OUTFEED CONVEYOR.......................26'

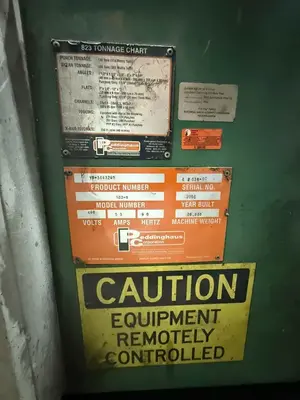

POWER..................................460V 3PH 60HZ
MACHINE DIMENSIONS (FOOTPRINT).........75'(L) X 20'(W) FT.
MACHINE WEIGHT.........................20,000 LBS
